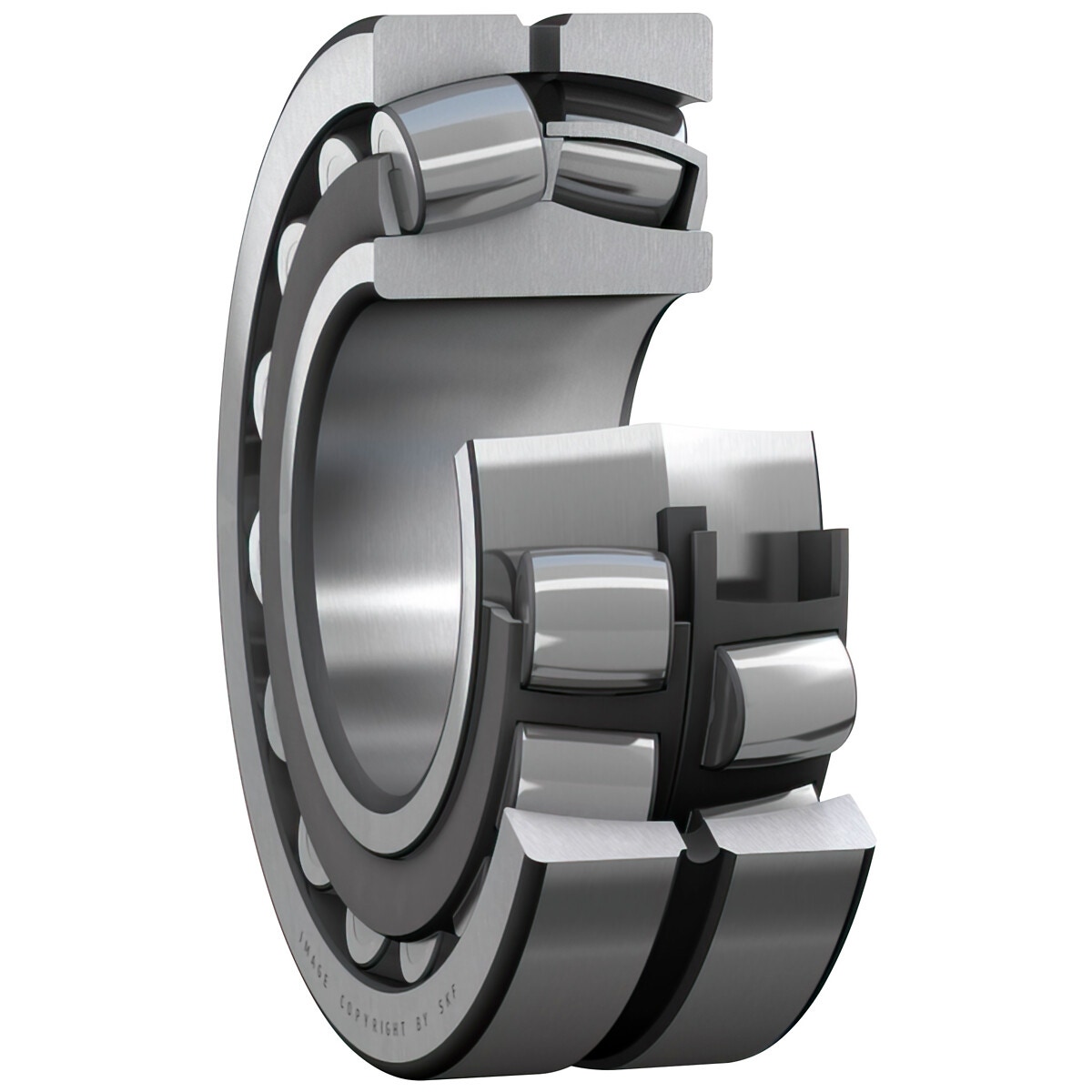

SFĒRISKAIS RULLĪŠU GULTNIS 55X100X25 AR KONUSVEIDA URBUMU 1:
179 €
✓ Pieejams
Description
bore diameter (d) 55 mm | outer diameter (D) 100 mm | width (B) 25 mm | inner ring shoulder diameter (d2) 65.3 mm | shoulder/recess diameter of outer ring (D1) 88 mm | width annular lubrication groove at outer ring (b) 6 mm | diameter of lubrication hole (K) 3 mm | chamfer dimension (r1,2) min. 1.5 mm
Tapered bore, taper 1:12 | abutment housing diameter (Da) max. 91 mm | fillet radius (ra) max. 1.5 mm | basic dynamic load rating (C) 129 kN | basic static load rating (C0) 127 kN | fatigue load limit (Pu) 13,7 kN | reference speed 6300 r/min | limiting speed 8500 r/min | calculation factor (e) 0.24 | calculation factor (Y1) 2.8 | calculation factor (Y2) 4.2 | calculation factor (Y0) 2.8
Attributes
Inner diameter Ø (mm): 55 | Inner diameter Ø (mm): 55.00 | Outer diameter Ø (mm): 100 | Outer diameter Ø (mm): 100.00 | Package length (cm): 11.2 | Package width (cm): 11.6 | Package height (cm): 3 | Gross weight (kg): 0.823000 | EAN: 7316576652141
