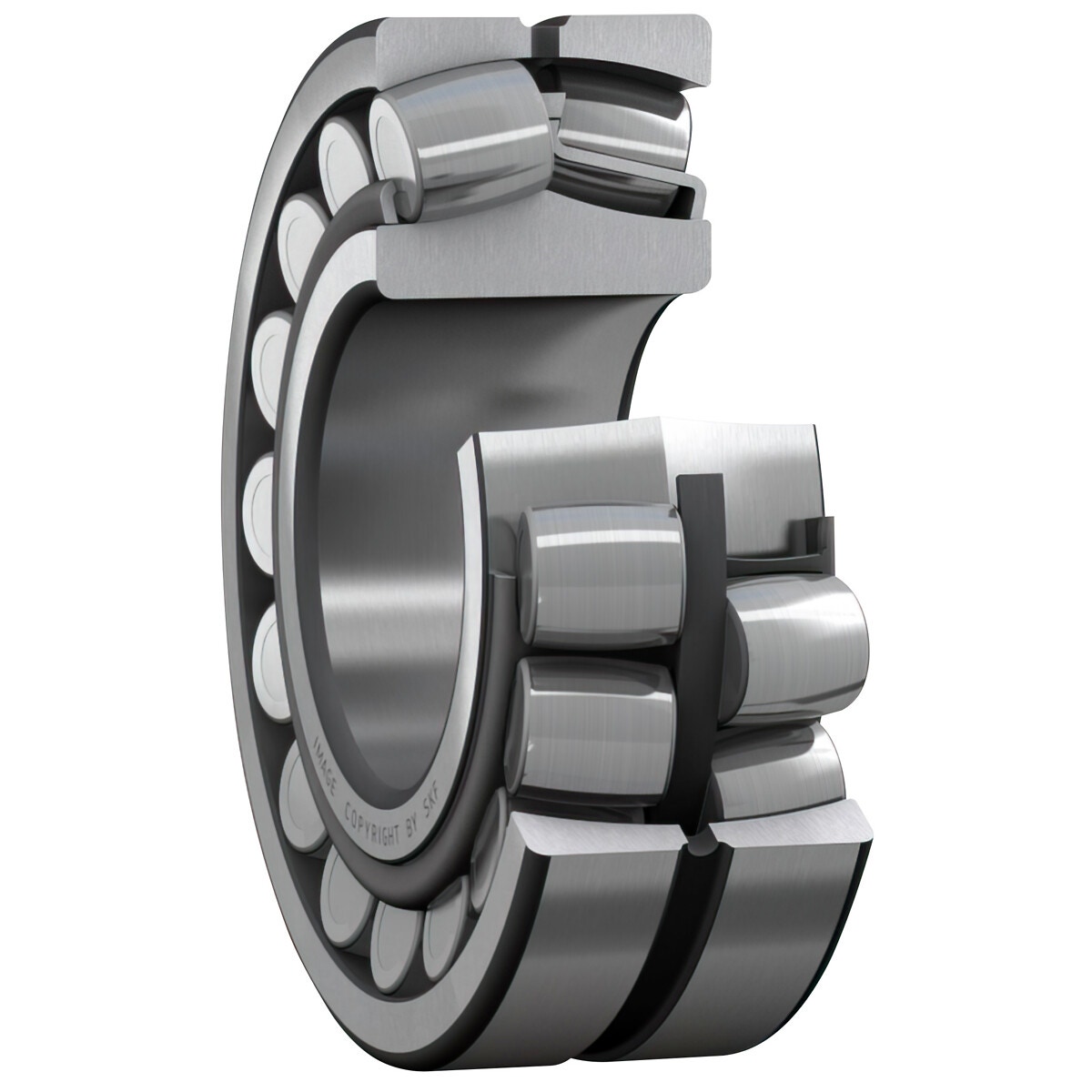

Sfēriskais rullīšu gultnis 45x85x23 skf
156 €
✓ Pieejams
Description
bore diameter (d) 45 mm | outer diameter (D) 85 mm | width (B) 23 mm | inner ring shoulder diameter (d2) 54.4 mm | shoulder/recess diameter of outer ring (D1) 74.4 mm | width annular lubrication groove at outer ring (b) 5.5 mm | diameter of lubrication hole (K) 3 mm | chamfer dimension (r1,2) min. 1.1 mm | abutment shaft diameter (da) min. 52 mm | abutment housing diameter (Da) max. 78 mm | fillet radius (ra) max. 1 mm | basic dynamic load rating (C) 104 kN | basic static load rating (C0) 98 kN | fatigue load limit (Pu) 10,8 kN | reference speed 7500 r/min | limiting speed 10000 r/min | calculation factor (e) 0.26 | calculation factor (Y1) 2.6 | calculation factor (Y2) 3.9 | calculation factor (Y0) 2.5
Attributes
Inner diameter Ø (mm): 45 | Inner diameter Ø (mm): 45.00 | Outer diameter Ø (mm): 85 | Outer diameter Ø (mm): 85.00 | Package length (cm): 10.2 | Package width (cm): 10.6 | Package height (cm): 2.8 | Gross weight (kg): 0.588000 | EAN: 7316572048559
