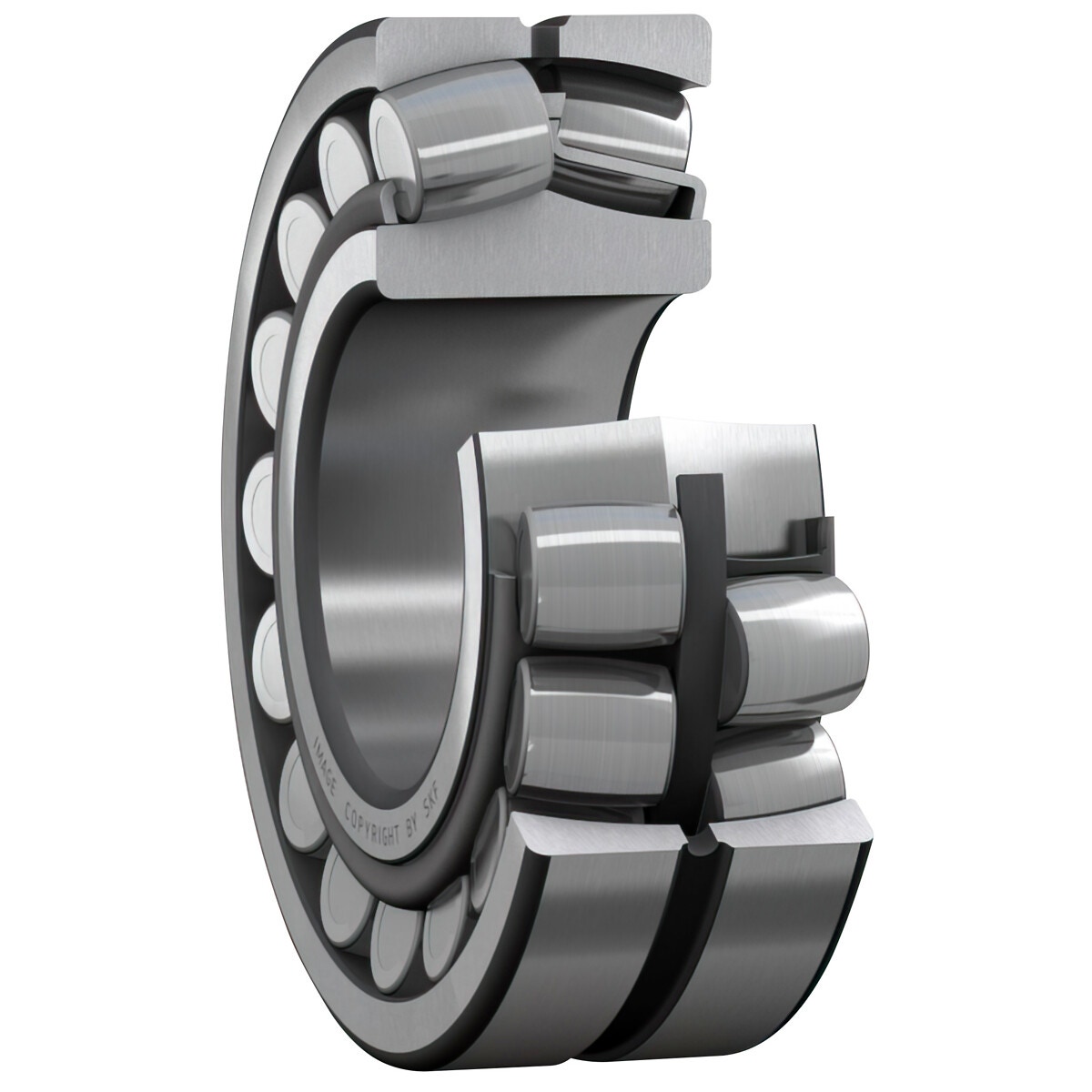

Sfēriskais rullīšu gultnis 40x80x23 skf
143 €
✓ Pieejams
Description
bore diameter (d) 40 mm | outer diameter (D) 80 mm | width (B) 23 mm | inner ring shoulder diameter (d2) 49.6 mm | shoulder/recess diameter of outer ring (D1) 69.4 mm | width annular lubrication groove at outer ring (b) 6 mm | diameter of lubrication hole (K) 3 mm | chamfer dimension (r1,2) min. 1.1 mm | abutment shaft diameter (da) min. 47 mm | abutment housing diameter (Da) max. 73 mm | fillet radius (ra) max. 1 mm | basic dynamic load rating (C) 98.5 kN | basic static load rating (C0) 90 kN | fatigue load limit (Pu) 9,8 kN | reference speed 8000 r/min | limiting speed 11000 r/min | calculation factor (e) 0.28 | calculation factor (Y1) 2.4 | calculation factor (Y2) 3.6 | calculation factor (Y0) 2.5
Attributes
Inner diameter Ø (mm): 40 | Inner diameter Ø (mm): 40.00 | Outer diameter Ø (mm): 80 | Outer diameter Ø (mm): 80.00 | Package length (cm): 9.2 | Package width (cm): 9.7 | Package height (cm): 2.8 | Gross weight (kg): 0.540000 | EAN: 7316576651908
