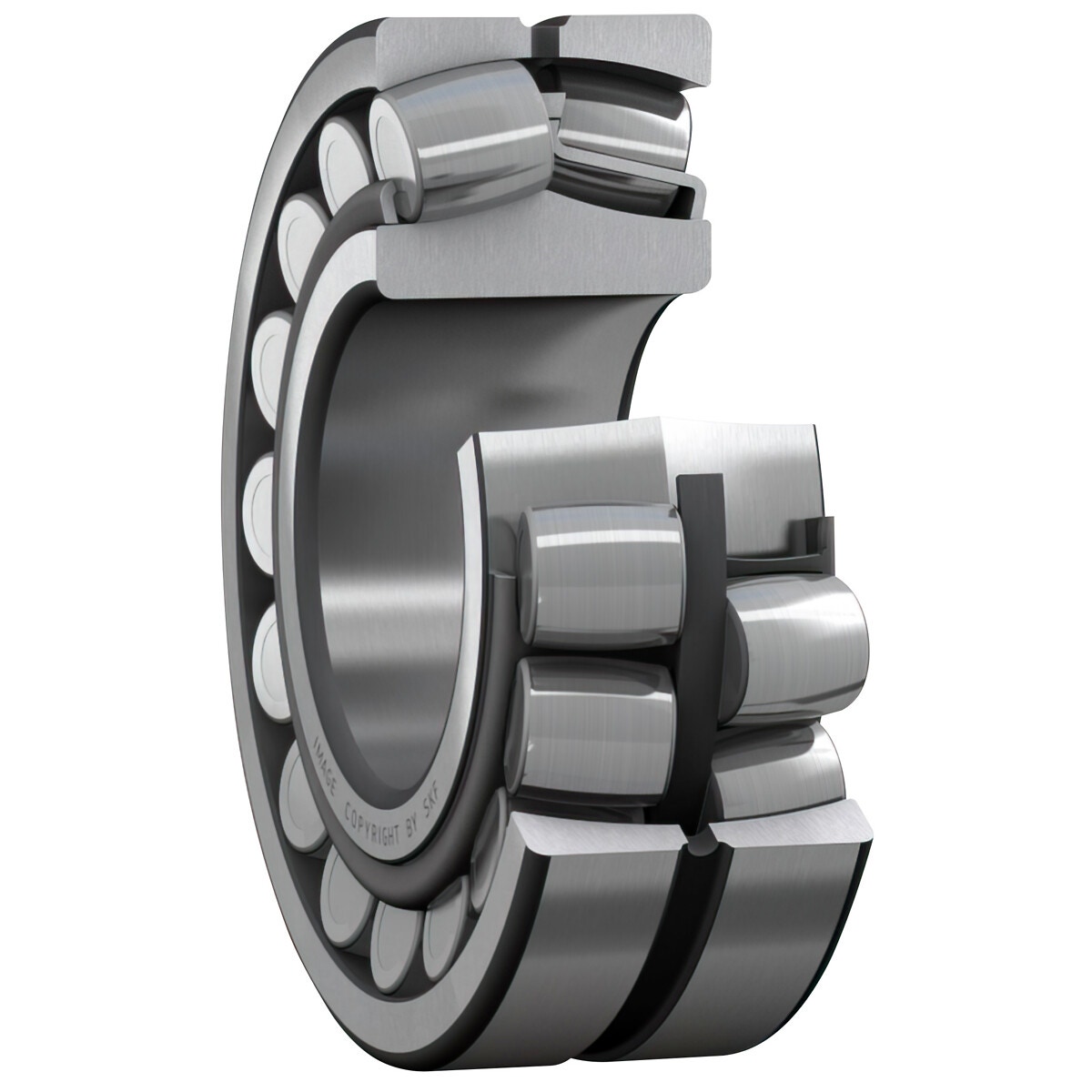

Sfēriskais rullīšu gultnis 35x72x23 skf
131 €
✓ Pieejams
Description
bore diameter (d) 35 mm | outer diameter (D) 72 mm | width (B) 23 mm | inner ring shoulder diameter (d2) 44.5 mm | shoulder/recess diameter of outer ring (D1) 61.8 mm | width annular lubrication groove at outer ring (b) 3.7 mm | diameter of lubrication hole (K) 2 mm | chamfer dimension (r1,2) min. 1.1 mm | abutment shaft diameter (da) min. 42 mm | abutment housing diameter (Da) max. 65 mm | fillet radius (ra) max. 1 mm | basic dynamic load rating (C) 88.8 kN | basic static load rating (C0) 85 kN | fatigue load limit (Pu) 9,3 kN | reference speed 9000 r/min | limiting speed 12000 r/min | calculation factor (e) 0.31 | calculation factor (Y1) 2.2 | calculation factor (Y2) 3.3 | calculation factor (Y0) 2.2
Attributes
Inner diameter Ø (mm): 35 | Inner diameter Ø (mm): 35.00 | Outer diameter Ø (mm): 72 | Outer diameter Ø (mm): 72.00 | Package length (cm): 8.2 | Package width (cm): 8.5 | Package height (cm): 3 | Gross weight (kg): 0.453000 | EAN: 7316572101568
