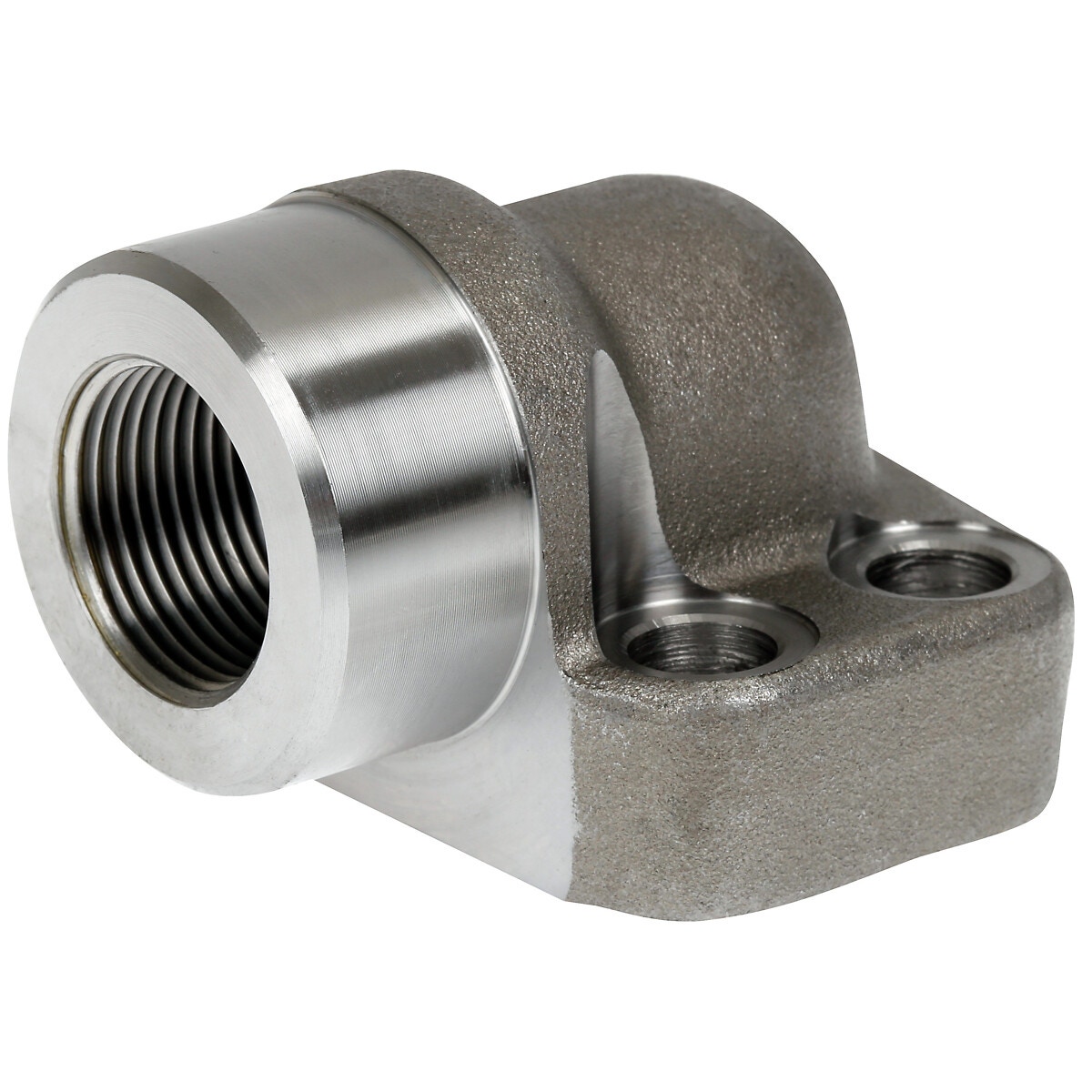

SAE ATLOKS 1.1/4 BSP 90 6000PSI
94,70 €
✓ Pieejams
Description
AFS 90° – 6000 PSI flange | size 1 1/4" | thread G 1 1/4" | pressure max. 414 bar | bolt size M14 x 45 (UNC 1/2") | B 32 | C 66,68 | D 93 | E 31,75 | F 95 | G 38 | H 25 | I 25 | L 15 | N 56
Attributes
Thread: G 1 1/4" -11 | Package length (cm): 6.6 | Package width (cm): 9.3 | Package height (cm): 9.5 | Gross weight (kg): 1.353000 | EAN: 6418914960367
