Rotators fr 7 3tn
649 €
✓ Pieejams
Description

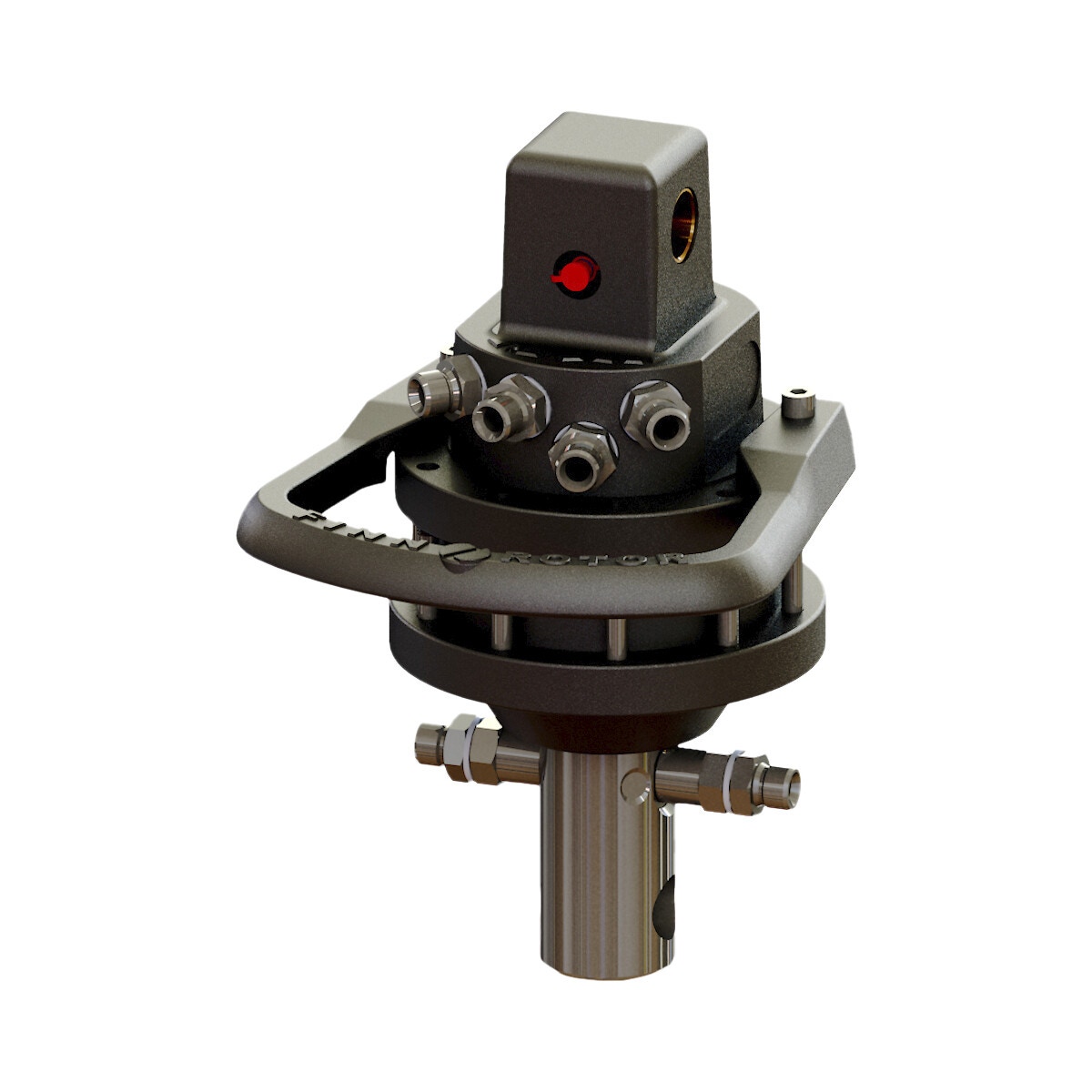

Finn-Rotor FR 7C-X24A24 | high-quality, reliable and infinitely rotating grapple rotator for medium-size loaders | X-type rotator with hoses exiting to the side of the boom | attachment shaft to grapple 49.5 mm | pin 24 mm | rotation angle 360° | max. rotation pressure 250 bar | max. working pressure grapple open 200 bar | max. working pressure grapple closed 300 bar | oil volume 330 cm³ | torque (250 bar) 900 Nm | max. axial load (static) 30 kN | max. axial load (dynamic) 15 kN | max. oil flow 20 l/min | edged hose guard | connections G 3/8" | weight 16 kg
Attributes
Package length (cm): 30 | Package width (cm): 23 | Package height (cm): 22 | Gross weight (kg): 17.100000 | EAN: 6418914216006
