Rotators fr 10 4tn
845 €
✓ Pieejams
Description

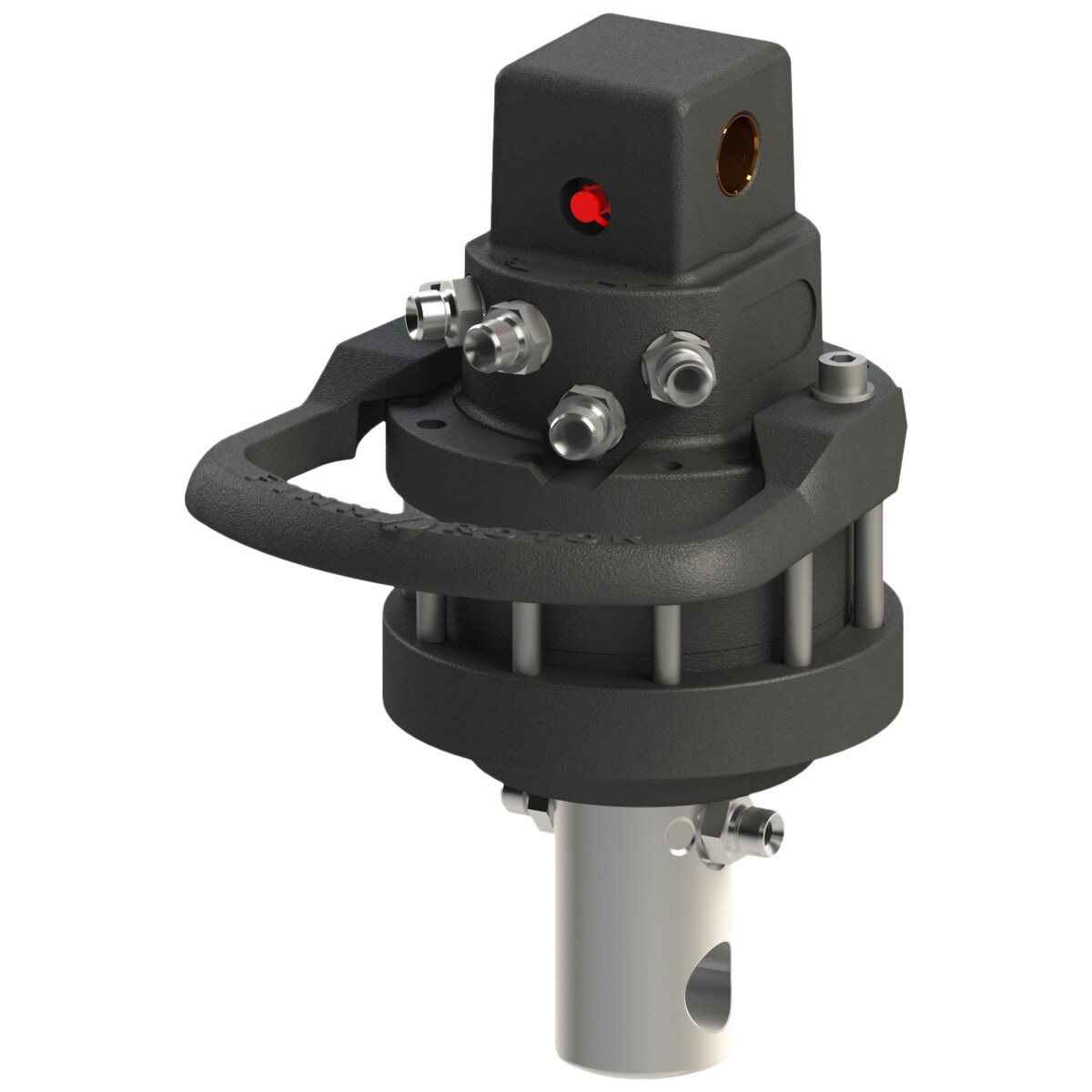

Finn-Rotor FR 10C-X25A30 | high-quality, reliable and infinitely rotating grapple rotator for medium-size loaders | X-type rotator with hoses exiting to the side of the boom | attachment shaft to grapple 59 mm | pin 30 / 25 mm | rotation angle 360° | max. rotation pressure 250 bar | max. working pressure grapple open 200 bar | max. working pressure grapple closed 300 bar | oil volume 420 cm³ | torque (250 bar) 1100 Nm | max. axial load (static) 40 kN | max. axial load (dynamic) 20 kN | max. oil flow 20 l/min | edged hose guard | connections G 3/8" | weight 22 kg
Attributes
Package length (cm): 32.5 | Package width (cm): 23 | Package height (cm): 27 | Gross weight (kg): 24.800000 | EAN: 6418914216013
