Rotators cr600 6tn atloks 6×173

Description

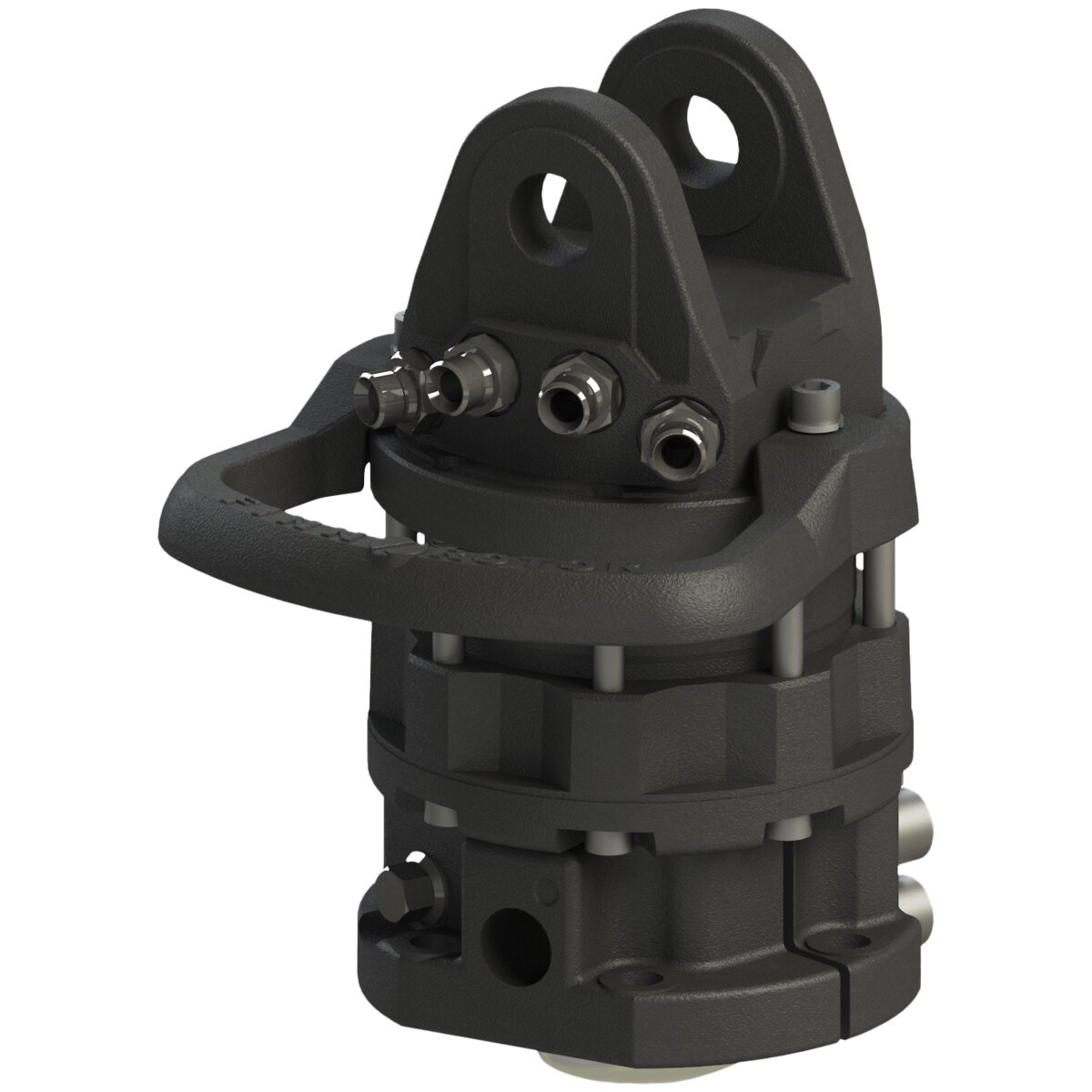

Finn-Rotor CR 600-W35F173 | high-quality, reliable and infinitely rotating grapple rotator for large-size loaders | W-type rotator with hoses exiting parallel to the boom | flange 6 x 173 mm, bolt size M18 | pin 35 mm | rotation angle 360° | max. rotation pressure 250 bar | max. working pressure grapple open 200 bar | max. working pressure grapple closed 300 bar | oil volume 670 cm³ | torque (250 bar) 1800 Nm | max. axial load (static) 60 kN | max. axial load (dynamic) 30 kN | max. oil flow 20 l/min | edged hose guard | connections G 1/2" | weight 48 kg

Attributes

Package length (cm): 39 | Package width (cm): 29 | Package height (cm): 31 | Gross weight (kg): 45.800000 | EAN: 6418914216051
