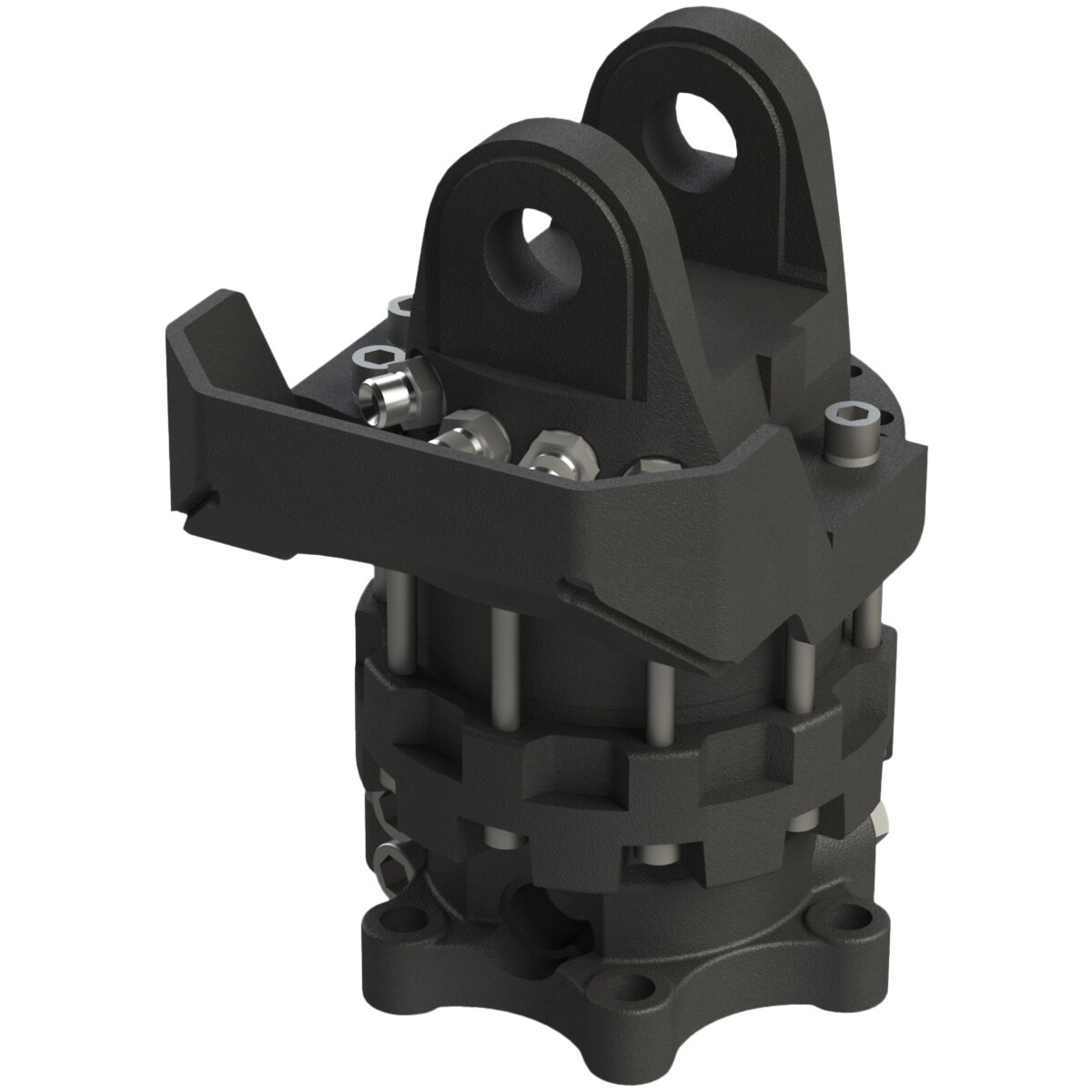

Rotators cr505sl 5.5tn atloks 6×173

Description

Finn-Rotor CR 505SL-WU35F173 | high-quality, reliable and infinitely rotating grapple rotator for large-size loaders | W-type rotator with hoses exiting parallel to the boom | flange 6 x 173 mm, bolt size M16 | pin 35 mm | rotation angle 360° | max. rotation pressure 250 bar | max. working pressure grapple open 200 bar | max. working pressure grapple closed 300 bar | oil volume 465 cm³ | torque (250 bar) 1400 Nm | max. axial load (static) 55 kN | max. axial load (dynamic) 25 kN | max. oil flow 20 l/min | edged hose guard | connections G 3/8" | weight 35 kg

Attributes

Package length (cm): 36 | Package width (cm): 23 | Package height (cm): 29 | Gross weight (kg): 35.700000 | EAN: 6418914216075
