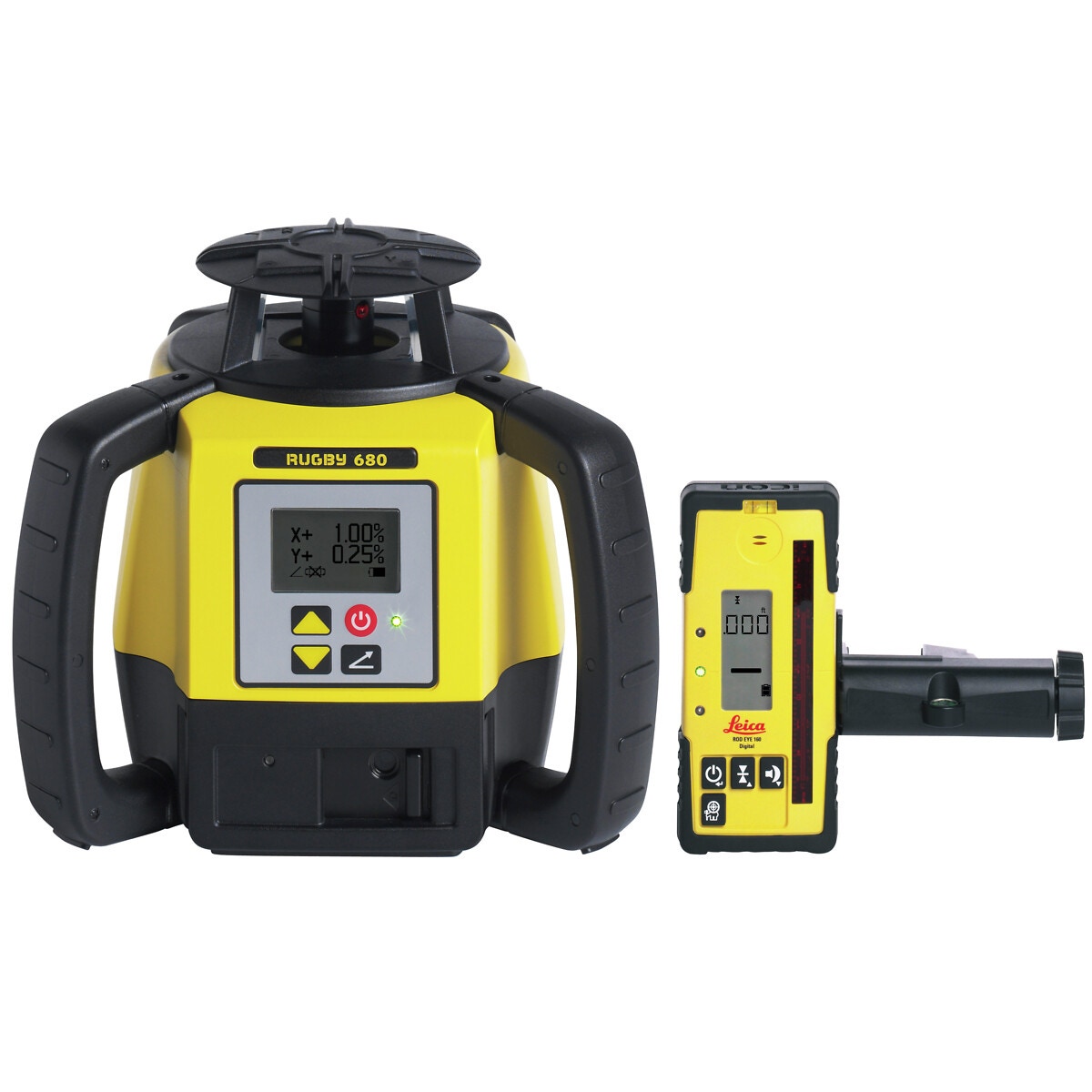

ROTĀCIJAS LĀZERA LĪMEŅRĀDIS RUGBY 680 + STIEŅA ACS 160

Description

a great general construction laser with digital grade capability | dial-in grade in single or dual axis, easy and fast at the touch of a button | the unique Smart Lope function continuously monitors time and temperature changes to unsure accurate performance over the course of the day | functionality: self-levelling horizontal, dial-in grade in dual axis | laser class 2 | laser type 635 nm (visible) | measured at 20°C (horizontal / vertical): ± 1,5 mm at 30 m | grade range ± 8% DG | Smart Lope | rotation 10 rps | range Ø Basic / RE140/160: 600 m / 800 m | operating time Li-Ion battery / alkaline battery: 40+ h / 60+ h | operating temperature -20°C to +50°C | storing temperature -40°C to +70°C | protection class IP67 | dimensions 212 x 239x 192 mm | weight 2,56 kg | professional receiver with digital readout, millimetre accuracy and strobe rejection | the 21 step arrow displays provide a graduated reference as you lock on the laser beam | the capture button allows the user to store and display a measurement | level vial ensures good alignment and improves your reading accuracy | the extra long reception window includes the unique technology that provides the accurate digital output | digital information is displayed above and below grade in mm, cm, inches, fractions of inches and feet | a rugged rod clamp ensures solid mounting to the grade rod | the circular level vial aids to keep your grade rod plumb | protective overmold protects the receiver from drops in tough jobsite conditions | detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver the function | passing the receiver through the laser beam will cause the receiver to beep twice quickly | if the detector is moved out of the detector ranger, the arrow display will indicate the direction to move to return to the laser beam | a small laser icon on the receiver display alerts the user when the batteries are getting low | working diameter Ø 1350 m | detection height 120 mm | numeric readout height 90 mm | detectable spectrum 600 – 800 nm | volume 105 dBA / 95 dBA / 65 dBA / off | automatic shut off after 10 mins | digital readout / units: mm, cm, in, in (fractions), ft | arrow display: 15 channels | anti-strobe protection | memory, last beam strike | beam finding (double beep) | laser low battery indicator | protection class IP67 | battery 2 x 1,5 V AA / operating time 50+ h | operating temperature -20°C… +50°C | storing temperature (without battery) -40°C… +70°C | dimensions 173 x 76 x 29 mm | very fine ± 0,5 mm | fine ± 1,0 mm | medium ± 2,0 mm | coarse ± 3,0 mm | very coarse ± 5,0 mm

Attributes

Package length (cm): 53 | Package width (cm): 26 | Package height (cm): 42 | Gross weight (kg): 8.500000 | EAN: 7640110694879
