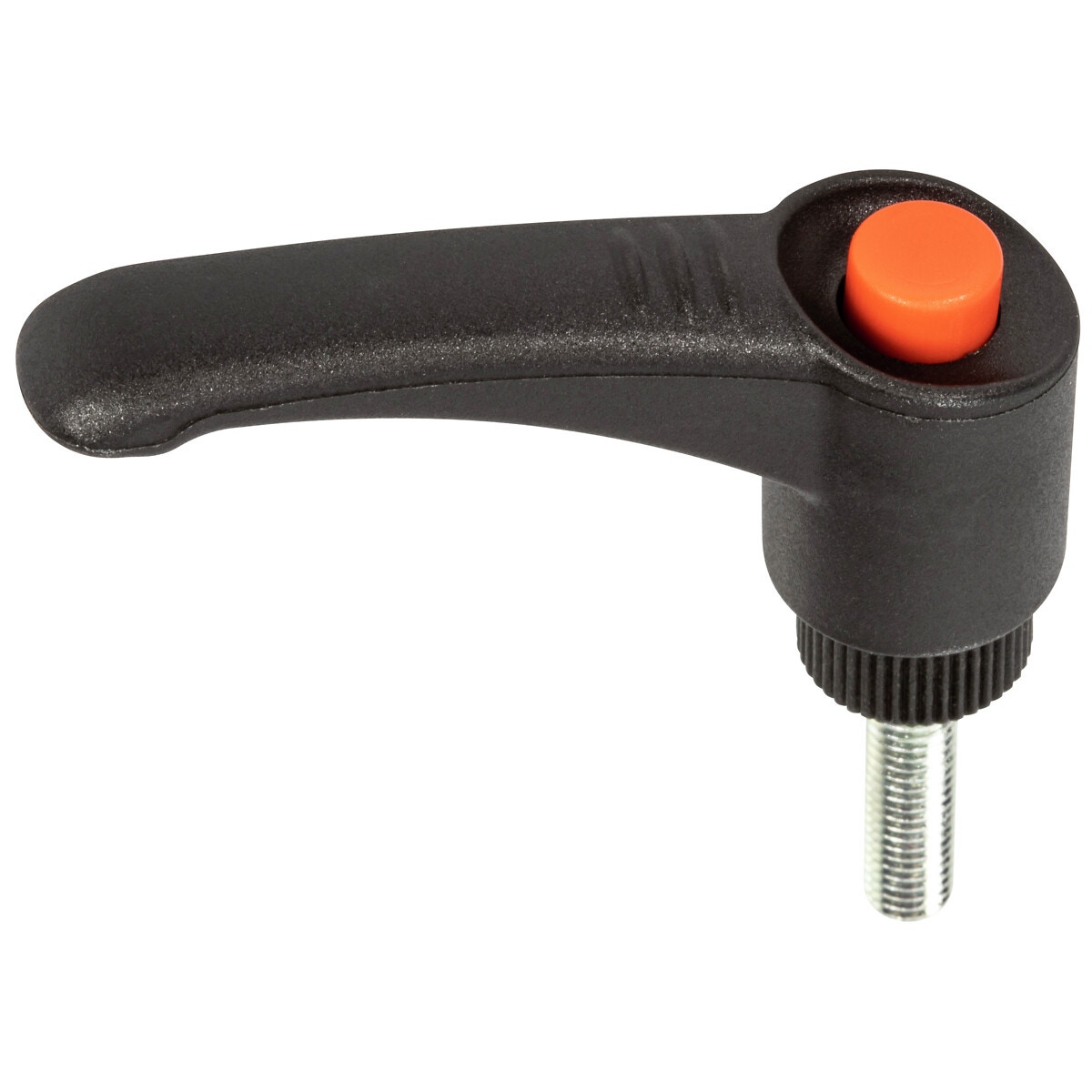

Regulējama saspiešanas svira m5x20 mm, plastmasa

Description

lever material polyamide-based technopolymer (PA) | resistant to oils, greases, fuels and solvents | orange locking button with return spring | dimensions: A=45mm, B=53mm, D=16mm, S=10,5mm, H=33.5mm, H1=3.5mm, h1=29mm, h3=18mm, d1=12mm, h2=7,5mm, d=M5, I=20mm | recommended operating temperature -30°C – +100°C | 1 pcs / package

Attributes

Thread: M5 x 0,8 | Length (mm): 20 | Length (mm): 20.00 | Material: Steel | Surface: Electro zinc plated | Package length (cm): 5.4 | Package width (cm): 5 | Package height (cm): 1.5 | Gross weight (kg): 0.019000 | EAN: 6418914160163
