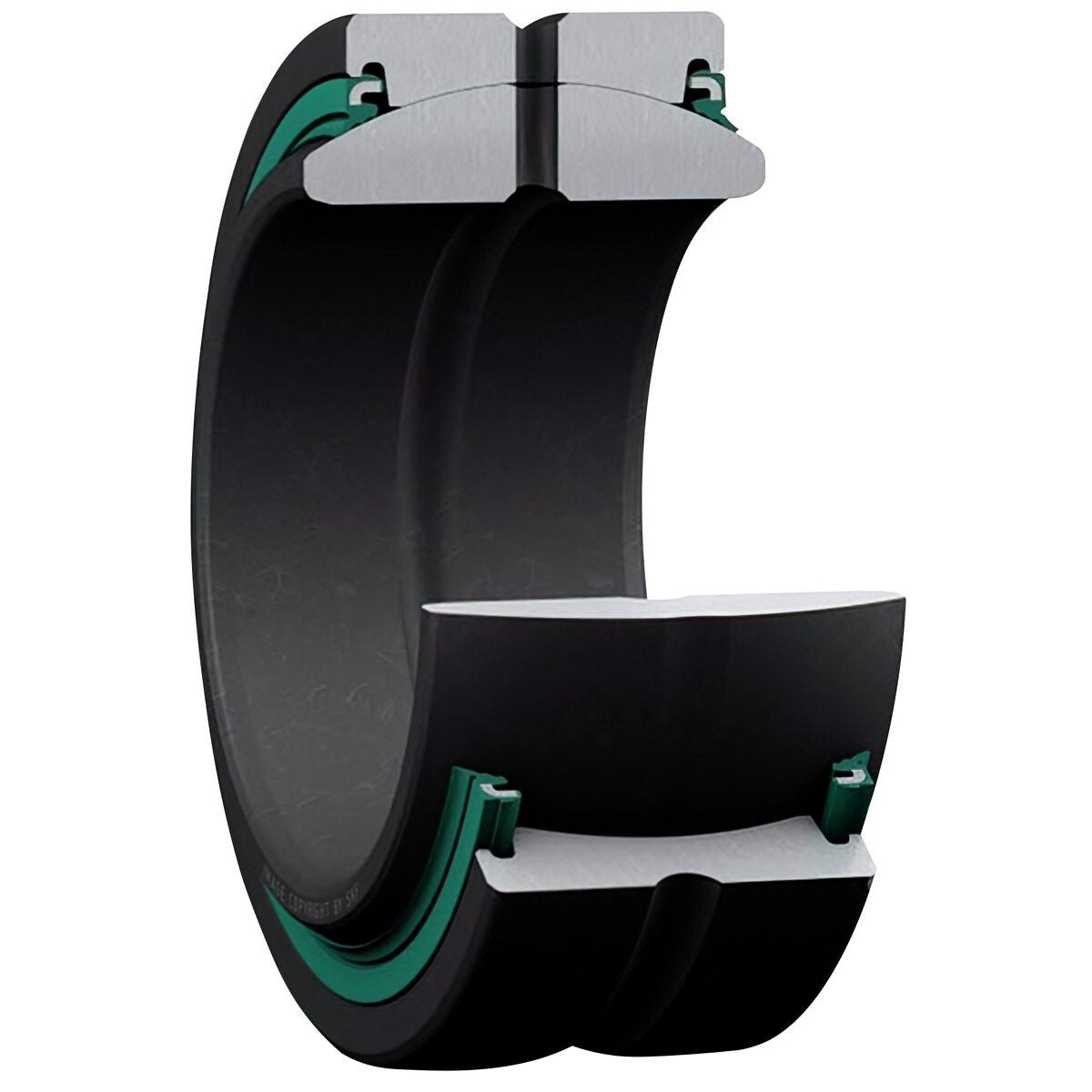

Radiālais lodīšu gultnis 20 mm skf

Description

bore diameter (d) 20 mm | outer diameter (D) 35 mm | nominal width (B) 16 mm | outer ring width (C) 12 mm | angle of tilt (α) 9 ° | raceway diameter inner ring (dk) 29 mm | width annular lubrication groove at outer ring (b) 3.1 mm | width annular lubrication groove at inner ring (b1) 3.2 mm | diameter of lubrication hole (outer ring) (M) 2 mm | chamfer dimension, bore (r1) min. 0.3 mm | chamfer dimension outer ring (r2) min. 0.3 mm | abutment shaft diameter (da) min. 22.1 mm | abutment shaft diameter (da) max. 24.2 mm | abutment housing diameter (Da) min. 30.9 mm | abutment housing diameter (Da) max. 33.2 mm | fillet radius , shaft (ra) max. 0.3 mm | fillet radius, housing (rb) max. 0.3 mm | basic dynamic load rating (C) 30 kN | basic static load rating (C0) 146 kN | specific dynamic load factor (K) 100 N/mm² | specific static load factor (K0) 500 N/mm² | material constant (KM) 330

Attributes

Inner diameter Ø (mm): 20 | Inner diameter Ø (mm): 20.00 | Outer diameter Ø (mm): 35 | Outer diameter Ø (mm): 35.00 | Package length (cm): 4.5 | Package width (cm): 4.6 | Package height (cm): 2.2 | Gross weight (kg): 0.062000 | EAN: 7316576609275
