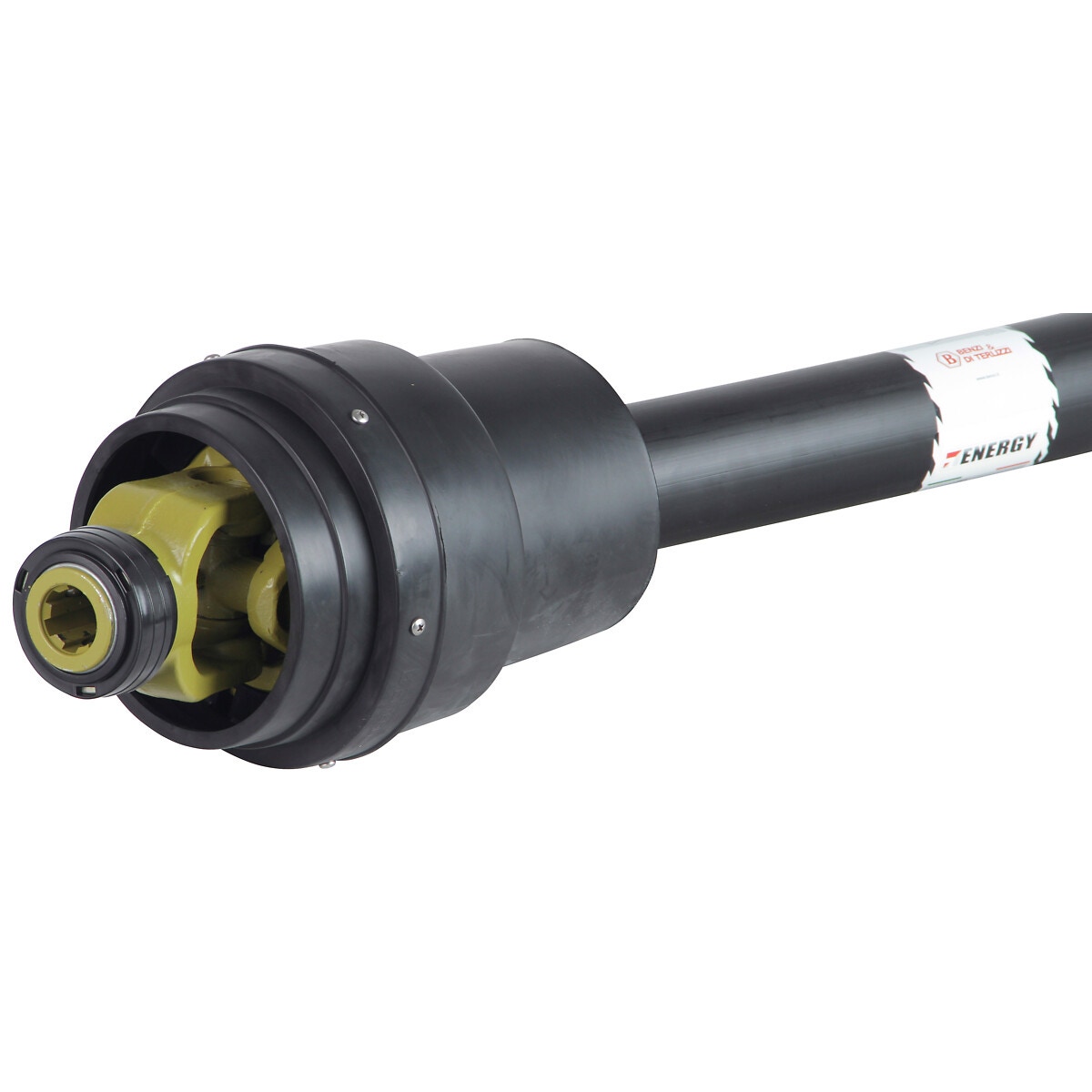

Puto vārpsta wwe2580 std 1.3/8-6 platleņķa 1.3/8-6

Description

type: W60 (WWE2580STD) | outer yoke tractor end: 1.3/8”-6Z | outer yoke machine end: 1.3/8”-6Z | power 540 rpm: 66 kW / 90 hv / 1175 Nm | power 1000 rpm: 102 kW / 139 hv / 975 Nm | length: L 1210 mm, M min. 1454 mm, M max. 1919 mm | universal joints: A/B: 36 x 89 mm, C/D 32 x 110 mm, E/F 36 x 89 mm | hardened inner tube: Lemon A 39.5 mm, B 49 mm, S 4.5 mm | outer tube: Lemon A 48 mm, B 57.5 mm, S 4 mm | max. static load: 2300 Nm | max. continuous operating angle: 25° | max. momentary working angle: 80° | suggested applications: trailers, balers, peat production machines, etc. | See drawing for dimension references. | Calculations made based on continuous load: joint angle 10°, 1000 operating hours

Attributes

Universal joint size: 36 x 89 x 32 x 110 mm | Spline type: 1 3/8" Z6 | Profile tube type: Lemon | Package length (cm): 148 | Package width (cm): 23 | Package height (cm): 23 | Gross weight (kg): 34.400000 | EAN: 6418914870628
