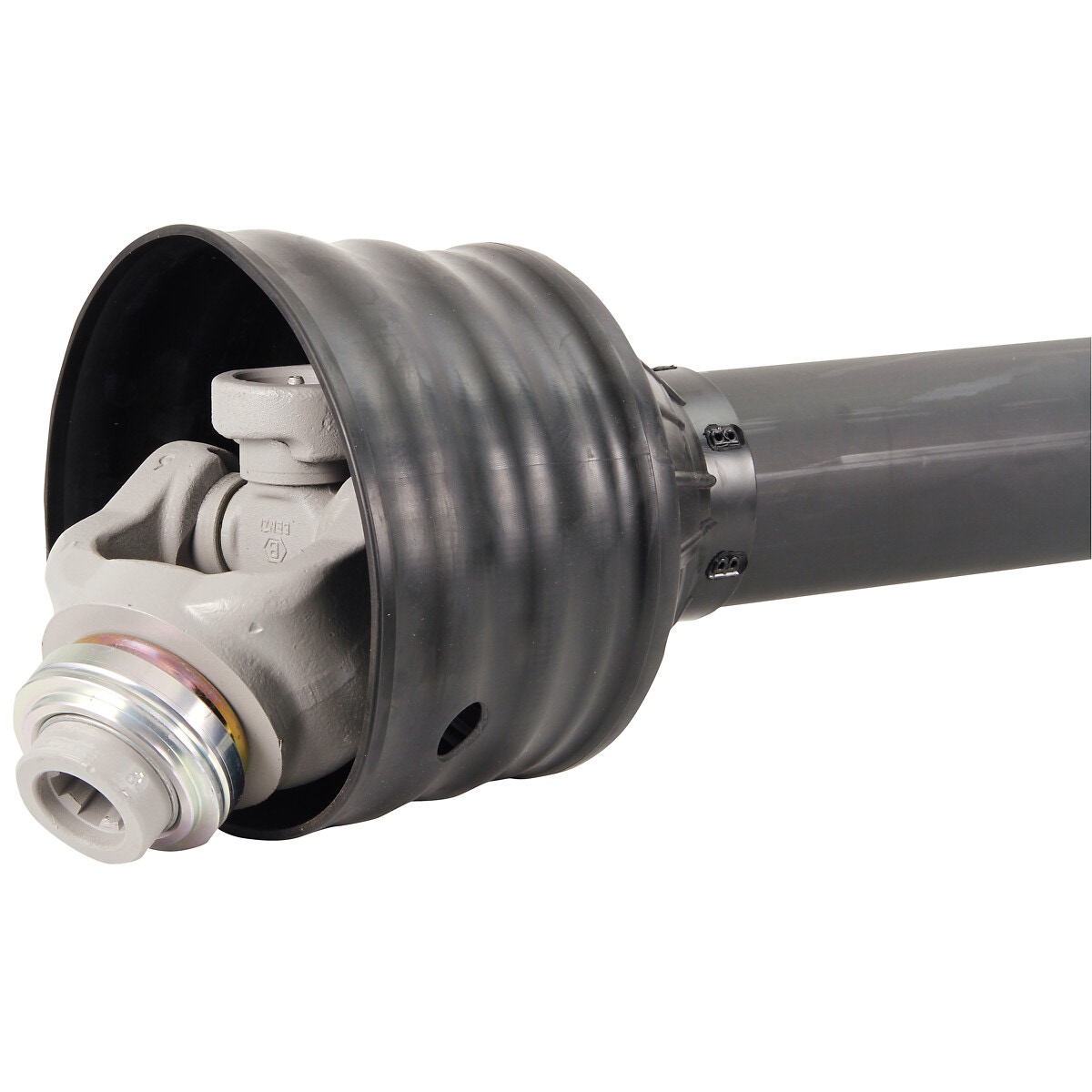

Puto vārpsta v10 1.3/8-6 std 1.3/4-6 evolution

Description

type: V10 (W2600) | outer yoke tractor end: 1.3/8”-6Z collar locking | outer yoke implement end: 1.3/4”-6Z push-pin | power 540 rpm: 92 kW / 125 hv / 1625 Nm | power 1000 rpm: 142 kW / 193 hv / 1360 Nm | max. static load for tubes: 6000 Nm | length: L 860 mm, M min. 1145 mm, M max. 1575 mm | cross: A/B: 42 x 104 mm | inner tube: star profile A 61 mm, B 47 mm, S 4,5 mm | outer tube: star profile A 71,5 mm, B 57,5 mm, S 5 mm | maintenance interval even 50 hours | instructive objects of use: trailers, snow blowers, mulchers, wood chippers, peat production machines etc.

Attributes

Universal joint size: 42 x 104 mm | Spline type: 1 3/8" Z6, 1 3/4" Z6 | Profile tube type: Star | Package length (cm): 113 | Package width (cm): 20.5 | Package height (cm): 20.5 | Gross weight (kg): 29.900000 | EAN: 6418914870550
