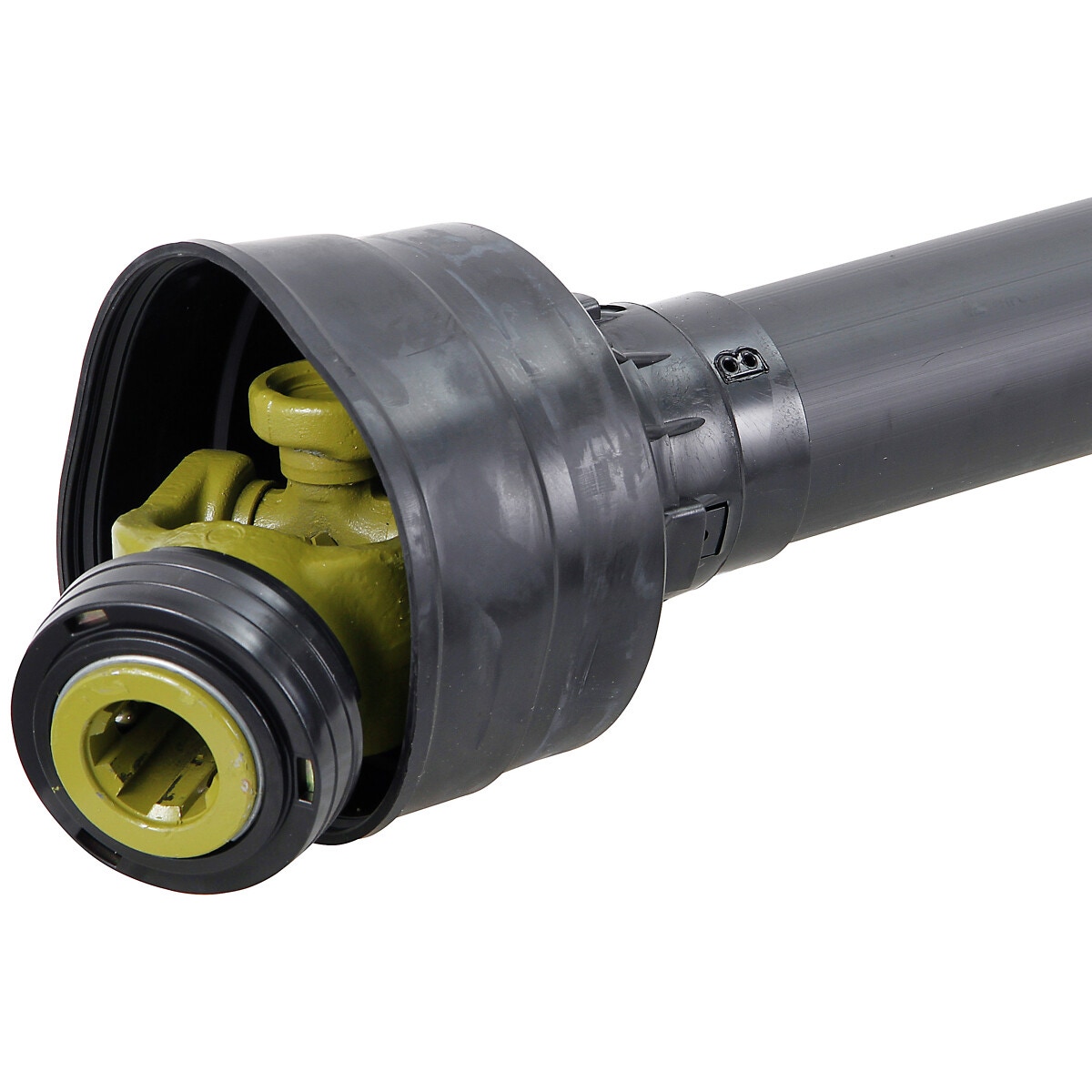

Puto vārpsta b104 1.3/8-6

Description

type: B04 (104) | no. of splines: 6 | power 540 rpm: 26 kW / 35 hv / 460 Nm | power 1000 rpm: 40 kW / 55 hv / 380 Nm | length: L 860 mm, M min. 1075 mm, M max. 1525 mm | truss: A/B: 27 x 74.6 mm | inner tube: A 36 mm, S 4.5 mm | outer tube: A 43.5 mm, S 3.4 mm | max. static load: 780 Nm | suggested applications: rakes, haymakers, mowers, small sprinkler pumps, general purpose trailers, farm winches, fertiliser spreaders, disc and cylinder mower-conditioners, small balers, potato and beet machines, forage wagons, circular saws, firewood processors, etc. | see drawing for dimension references | calculations made based on continuous load: joint angle 5°, 1000 operating hours

Attributes

Universal joint size: 27 x 74,6 mm | Spline type: 1 3/8" Z6 | Profile tube type: Triangular | Package length (cm): 116 | Package width (cm): 16 | Package height (cm): 16 | Gross weight (kg): 12.300000 | EAN: 6418914648425
