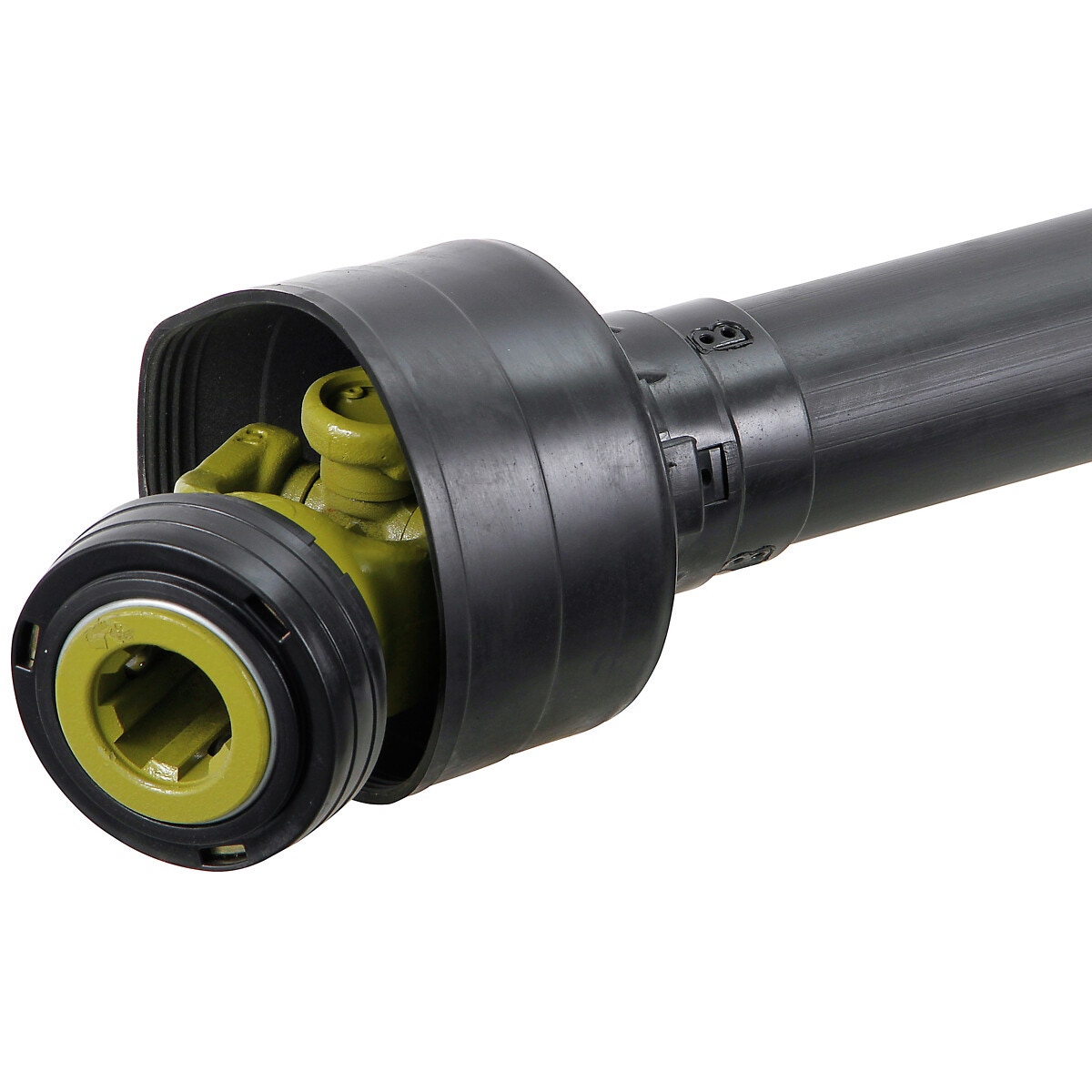

Puto vārpsta b102 gara 1.3/8-6
205 €
✓ Pieejams
Description
type: B02 (102) | splines: 6 | power 540 rpm: 15 kW / 21 hp / 270 Mn | power 1000 rpm: 23 kW / 31 hp / 220 Mn | length: L 1410 mm, M min. 1604 mm, M max 2040 mm | A/B: 23,8 x 61,3 mm | A 29 mm, S 4 mm | A 36 mm, S 3,2 mm | max. static load limit: 450 Nm | instructional targets of use: light rakes, mowers, tedders, rayers, concrete mixers, potato machines, skidders, small circular saws etc. | basis of calculation: joint angle 5°, life 1000 h
Attributes
Universal joint size: 23,8 x 61,3 mm | Spline type: 1 3/8" Z6 | Profile tube type: Triangular | Package length (cm): 161 | Package width (cm): 13 | Package height (cm): 13 | Gross weight (kg): 12.560000 | EAN: 6418914648401
