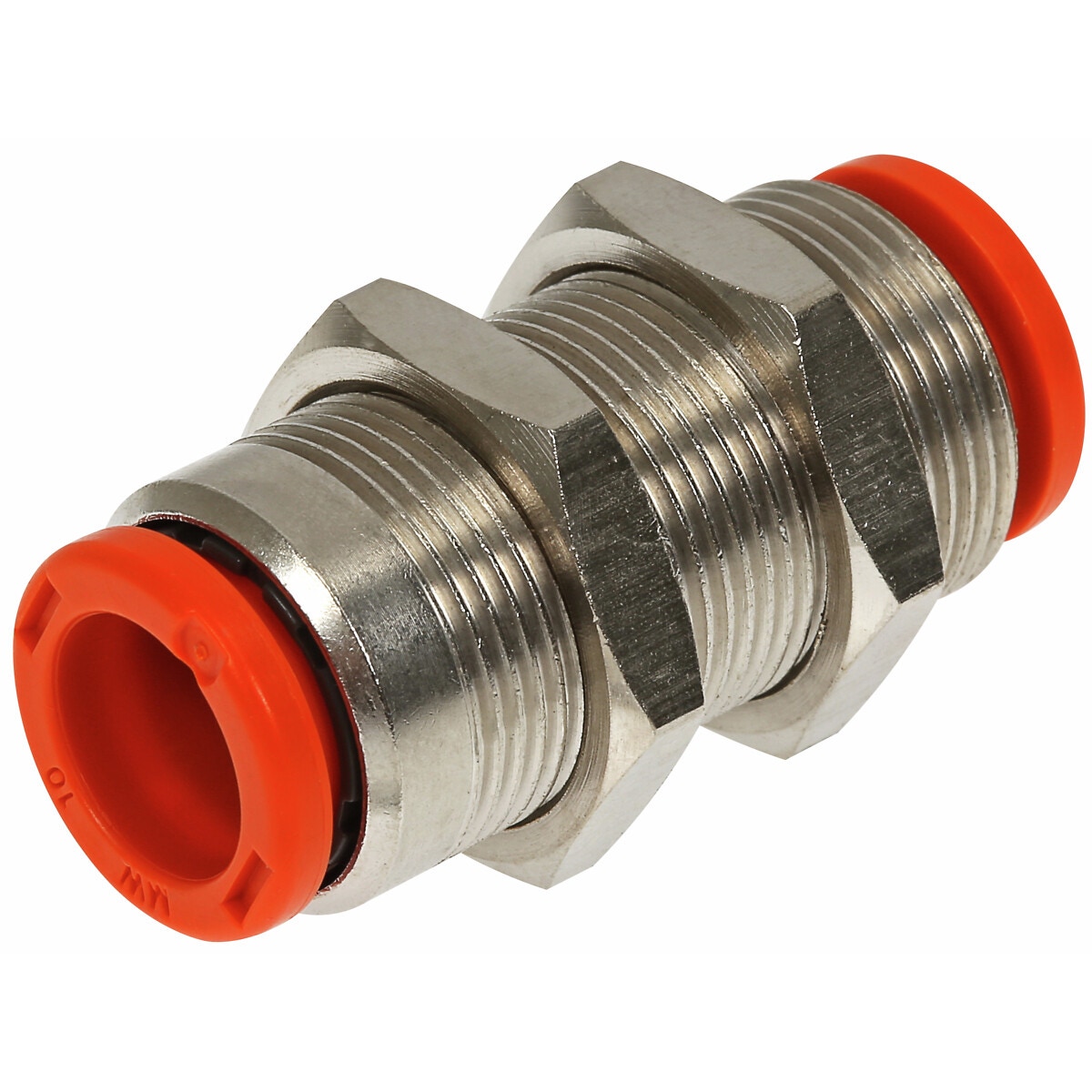

PUSH-IN SAVIENOJUMS 8 MM STARPSIENAI R10
13,50 €
Noliktavā 17 prece/-es
✓ Pieejams
Description
straight push-in fitting, intermediate (R10) | material brass | with O-ring seal | operating pressure -0.99 – 16 bar | operating temperature -20…+80 °C | fluid: vacuum, compressed air | recommended pipe: Rilsan PA 11, nylon 6, polyamide 12, polypropylene | pipe Ø1 8 | pipe Ø2 8 | F thread M15x1 | CH 17 | L 35.7 | D 6.5 | I max. 13.5
Attributes
Thread: M15 x 1,0 (fine thread) | Package length (cm): 3.6 | Package width (cm): 1.7 | Package height (cm): 1.7 | Gross weight (kg): 0.023000 | EAN: 8024986123777
