Push-in savienojums 8 mm-1/8 ārējās tapas r1

Description

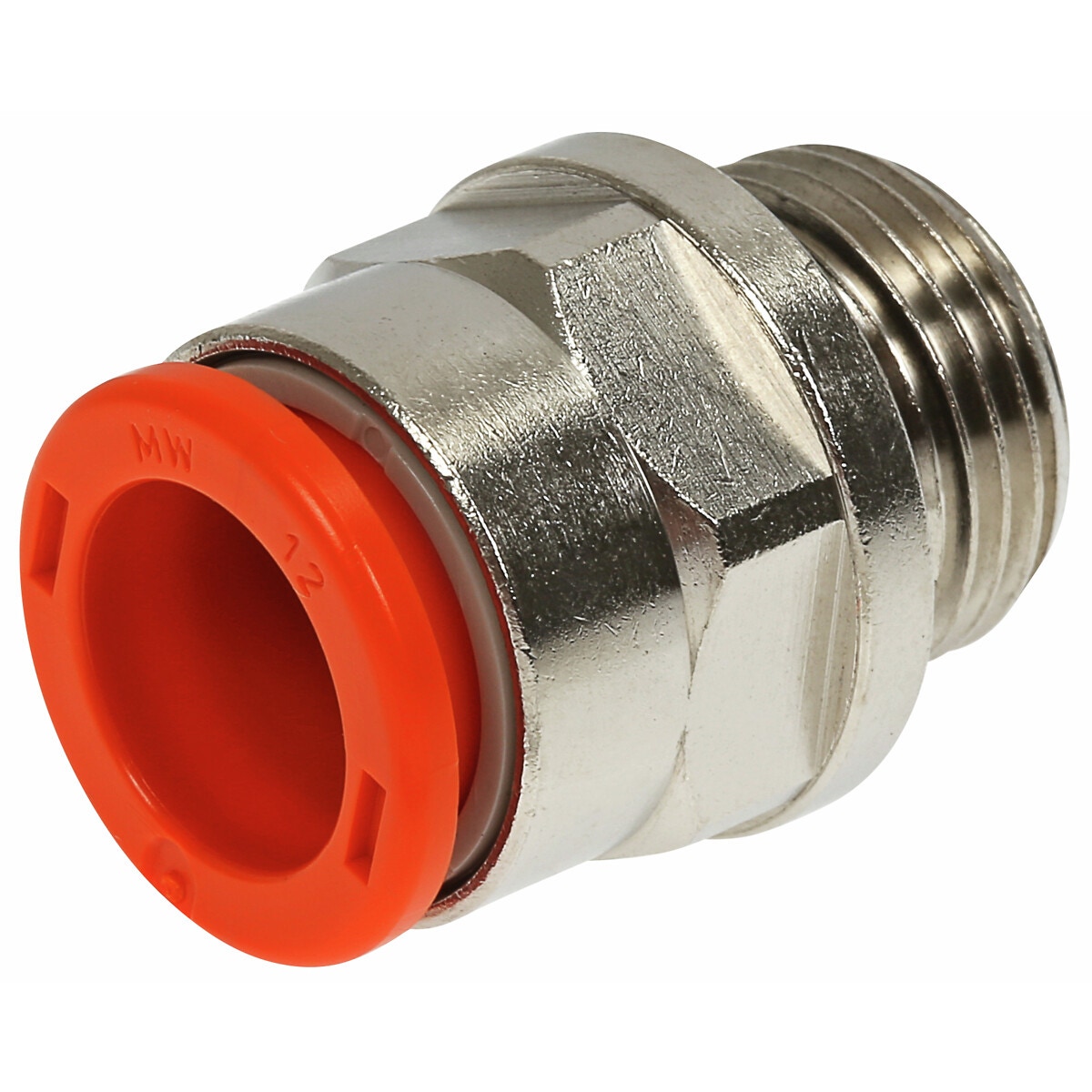

straight cylindrical push-in fitting with male thread (RL1) | material brass | with O-ring seal | operating pressure -0.99 – 16 bar | operating temperature -20…+80 °C | fluid: vacuum, compressed air | recommended pipe: Rilsan PA 11, nylon 6, polyamide 12, polypropylene | pipe Ø 8 | F thread G 1/8" | CH 13 | CH1 5 | P 6 | L 25.4 | D 5.2 | E 14

Attributes

Thread: G 1/8" -28 | Package length (cm): 2.6 | Package width (cm): 1.3 | Package height (cm): 1.3 | Gross weight (kg): 0.010000 | EAN: 8024986123487
