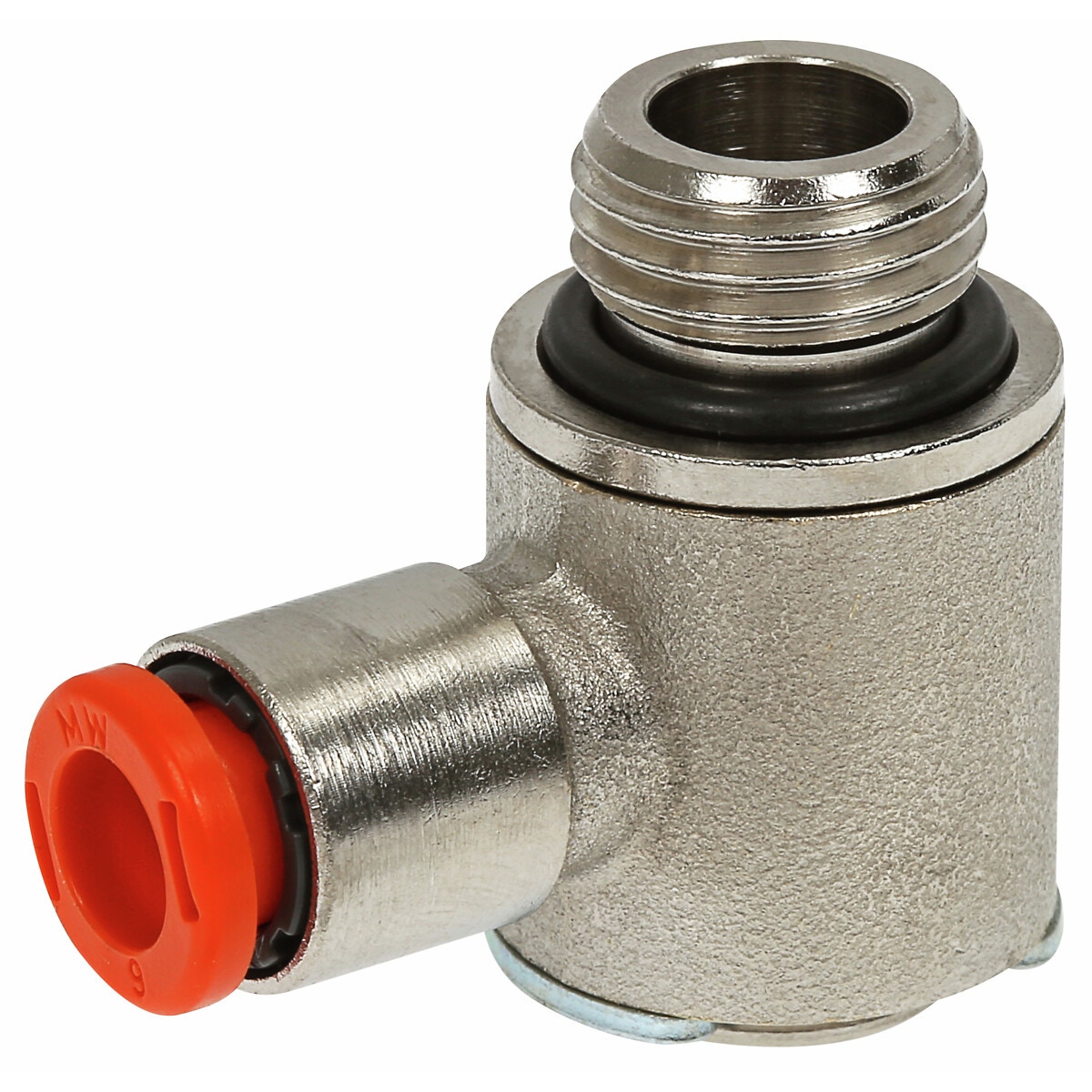

PUSH-IN SAVIENOJUMS 6MM-M5 MINI SINGLE BANJO R15

Description

push-in fitting, rod, male single rotary ring (RL15) | material brass | with O-ring seal | operating pressure -0.99 – 16 bar | operating temperature -20…+80 °C | fluid: vacuum, compressed air | recommended pipe: Rilsan PA 11, nylon 6, polyamide 12, polypropylene | pipe Ø 6 | F thread M5 | CH 2 | P 4 | L 23.5 | L1 18.4 | E 9.5 | E1 11.3

Attributes

Thread: M5 x 0,8 | Package length (cm): 2.8 | Package width (cm): 1.1 | Package height (cm): 1.9 | Gross weight (kg): 0.011000 | EAN: 8024986211054
