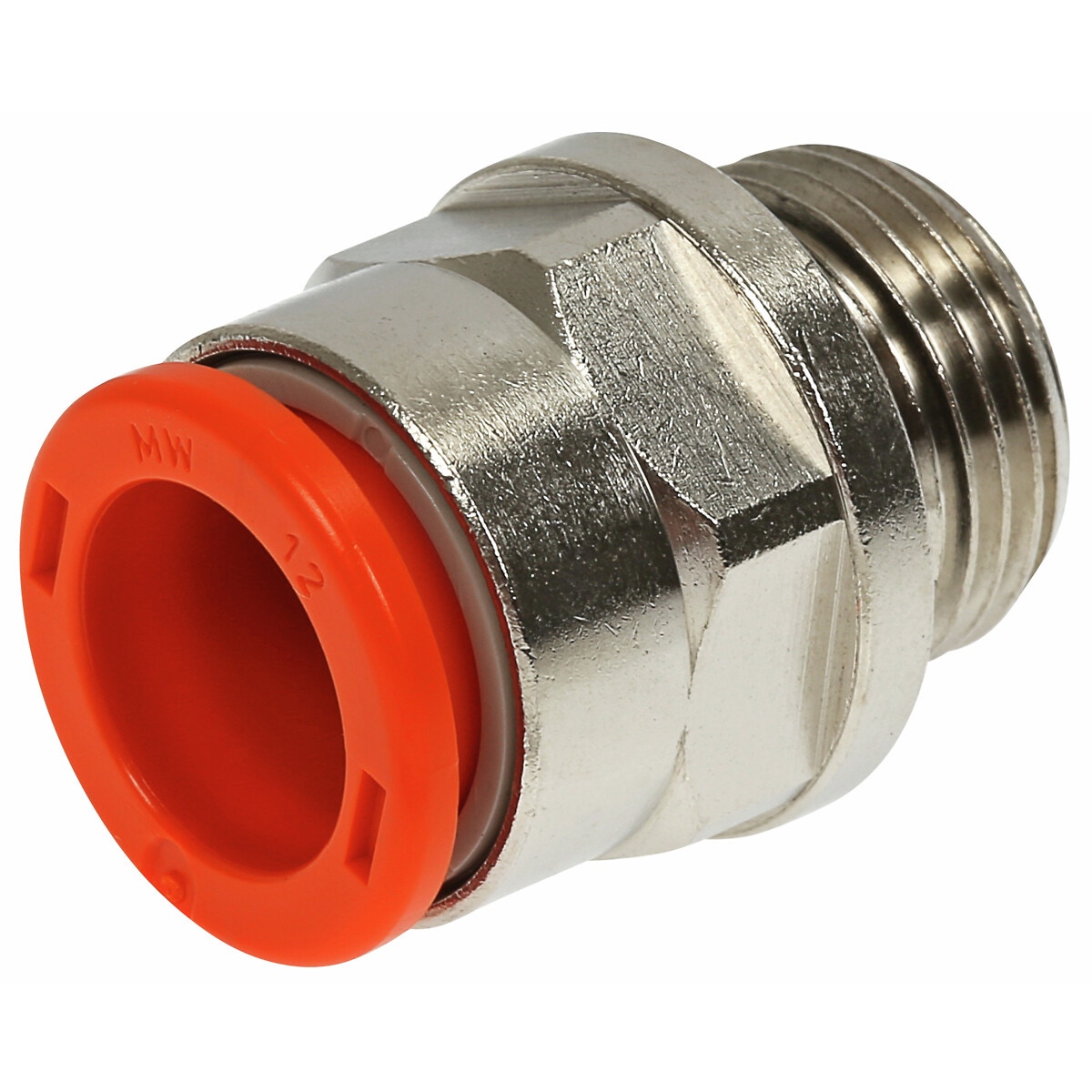

Push-in savienojums 6 mm-1/8 ārējās tapas r1

Description

straight cylindrical push-in fitting with male thread (RL1) | material brass | with O-ring seal | operating pressure -0.99 – 16 bar | operating temperature -20…+80 °C | fluid: vacuum, compressed air | recommended pipe: Rilsan PA 11, nylon 6, polyamide 12, polypropylene | pipe Ø 6 | F thread G 1/8" | CH 12 | CH1 4 | P 6 | L 21.6 | D 4.1 | E 14

Attributes

Thread: G 1/8" -28 | Package length (cm): 2.2 | Package width (cm): 1.2 | Package height (cm): 1.2 | Gross weight (kg): 0.008000 | EAN: 8024986123463
