PUSH-IN SAVIENOJUMS 5 MM-M5 ĀRĒJĀS TAPAS R1

Description

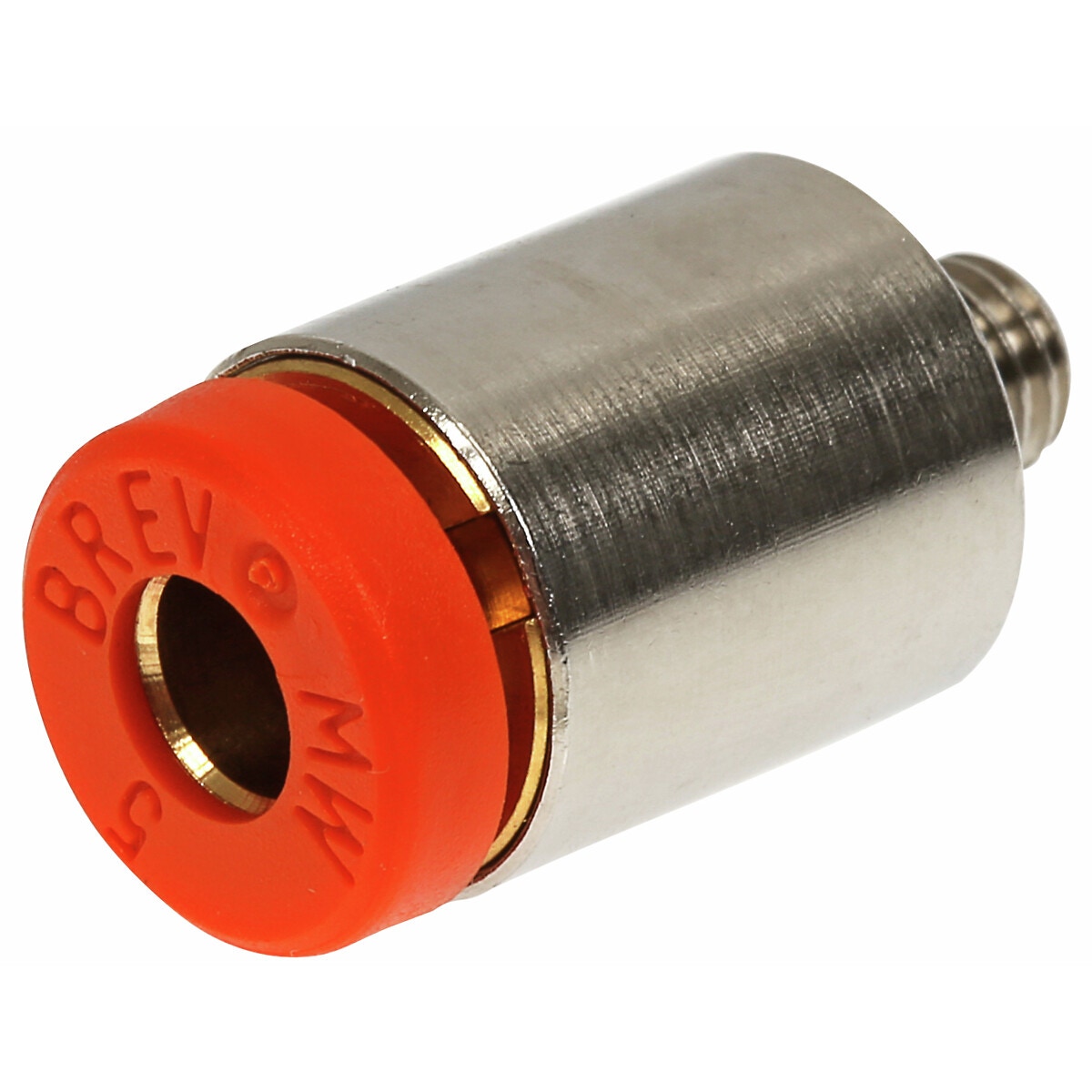

straight cylindrical push-in fitting with male thread (R1) | material brass | with O-ring seal | operating pressure -0.99 – 16 bar | operating temperature -20…+80 °C | fluid: vacuum, compressed air | recommended pipe: Rilsan PA 11, nylon 6, polyamide 12, polypropylene | pipe Ø 5 | F thread M5 | CH Ø 12 | CH1 2.5 | P 4 | L 22.5 | D 2.6 | E 12

Attributes

Thread: M5 x 0,8 | Package length (cm): 2.2 | Package width (cm): 1.2 | Package height (cm): 1.2 | Gross weight (kg): 0.009000 | EAN: 8024986124408
