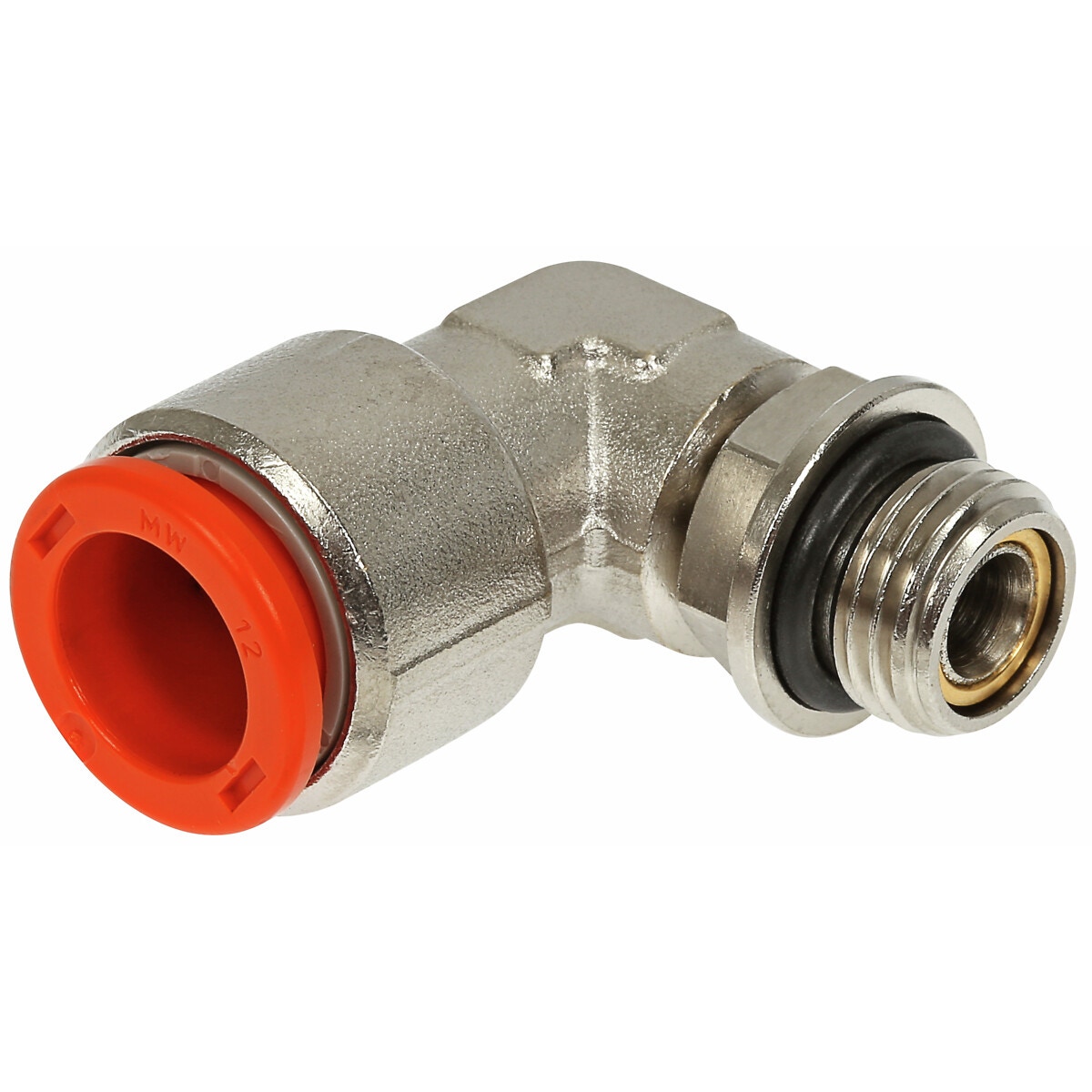

PUSH-IN SAVIENOJUMS 5 MM-1/8 ROTĀCIJAS LEŅĶIS ĀRĒJAIS R31
10,50 €
Noliktavā 9 prece/-es
✓ Pieejams
Description
rotary elbow push-fitting with male thread (R31) | material brass | with O-ring seal | operating pressure -0.99 – 16 bar | operating temperature -20…+80 °C | fluid: vacuum, compressed air | recommended pipe: Rilsan PA 11, nylon 6, polyamide 12, polypropylene | pipe Ø 5 | F thread G 1/8" | CH 12 | E 14 | E1 13.5 | L 22.8 | L1 21 | P 6
Attributes
Thread: G 1/8" -28 | Package length (cm): 4.3 | Package width (cm): 1.4 | Package height (cm): 1.4 | Gross weight (kg): 0.023000 | EAN: 8024986127324
