PUSH-IN SAVIENOJUMS 12MM-3/8 ĀRĒJĀS TAPAS R1

Description

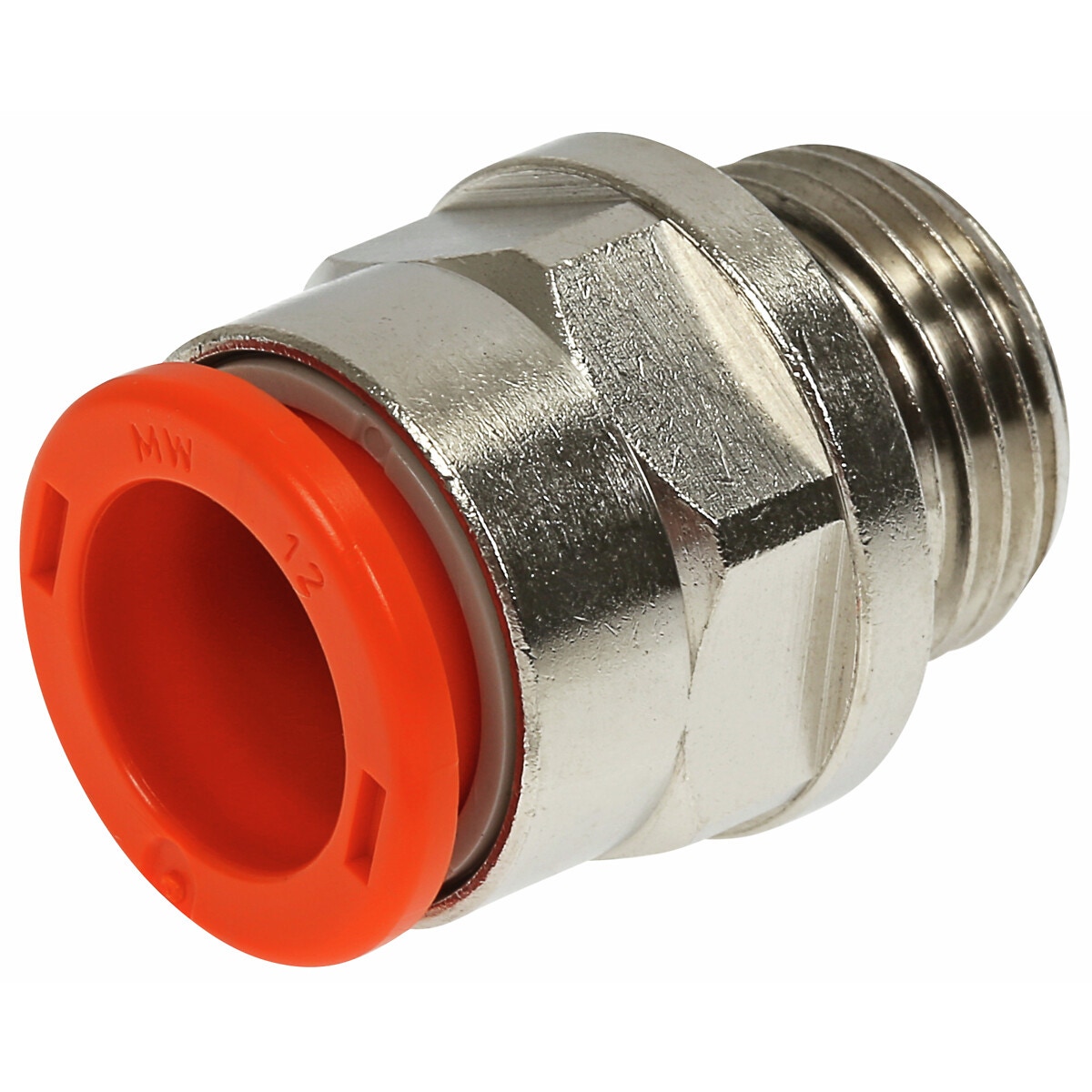

straight cylindrical push-in fitting with male thread (RL1) | material brass | with O-ring seal | operating pressure -0.99 – 16 bar | operating temperature -20…+80 °C | fluid: vacuum, compressed air | recommended pipe: Rilsan PA 11, nylon 6, polyamide 12, polypropylene | pipe Ø 12 | F thread G 3/8" | CH 19 | CH1 10 | P 9 | L 28.1 | D 10.2 | E 22

Attributes

Thread: G 3/8" -19 | Package length (cm): 2.8 | Package width (cm): 1.9 | Package height (cm): 1.9 | Gross weight (kg): 0.024000 | EAN: 8024986124507
