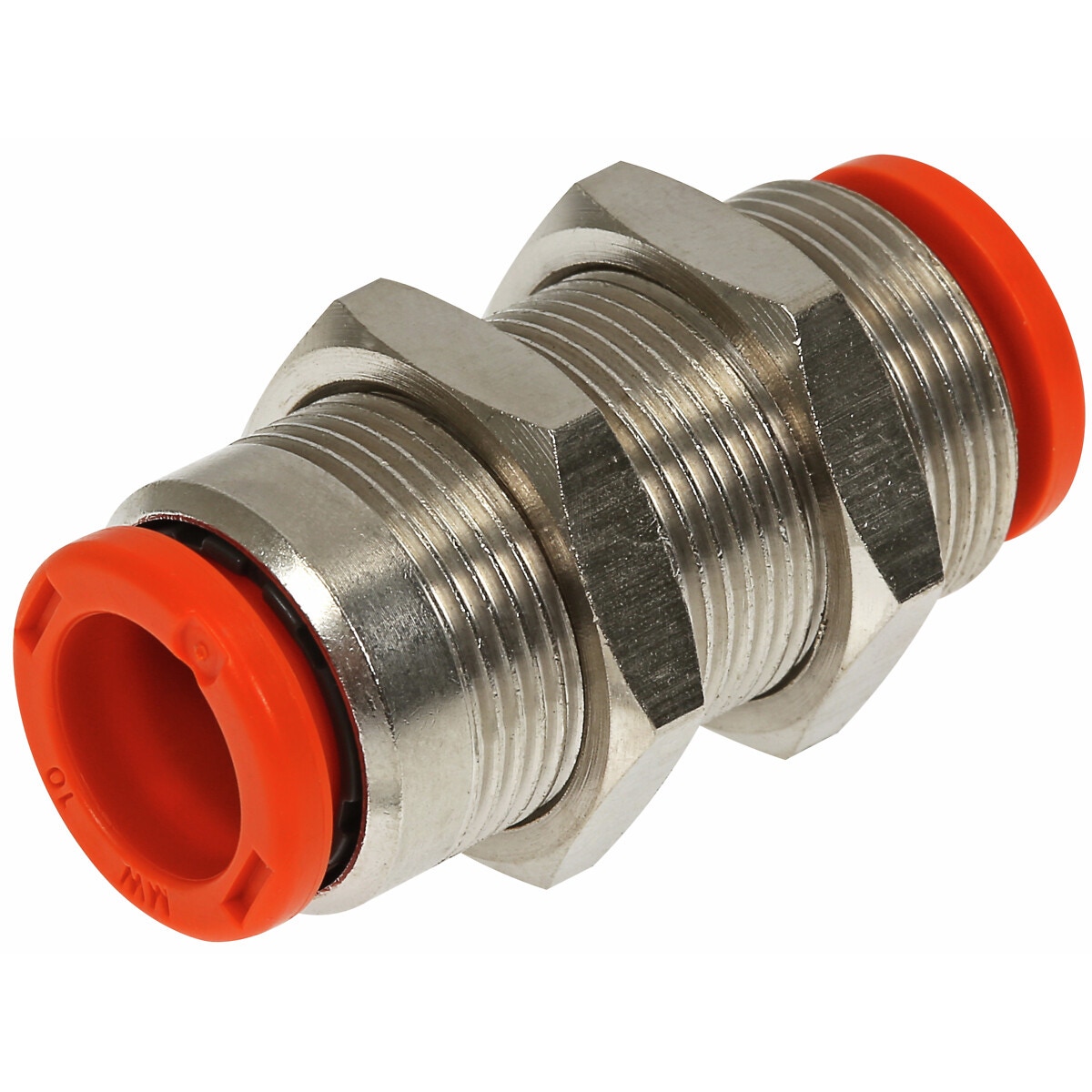

PUSH-IN SAVIENOJUMS 12 MM STARPSIENAI R10
21,50 €
Noliktavā 7 prece/-es
✓ Pieejams
Description
straight push-in fitting, intermediate (R10) | material brass | with O-ring seal | operating pressure -0.99 – 16 bar | operating temperature -20…+80 °C | fluid: vacuum, compressed air | recommended pipe: Rilsan PA 11, nylon 6, polyamide 12, polypropylene | pipe Ø1 12 | pipe Ø2 12 | F thread M20x1 | CH 24 | L 40.7 | D 10 | I max. 20.3
Attributes
Thread: M20 x 1,0 (fine thread) | Package length (cm): 4 | Package width (cm): 2.4 | Package height (cm): 2.4 | Gross weight (kg): 0.049000 | EAN: 8024986125450
