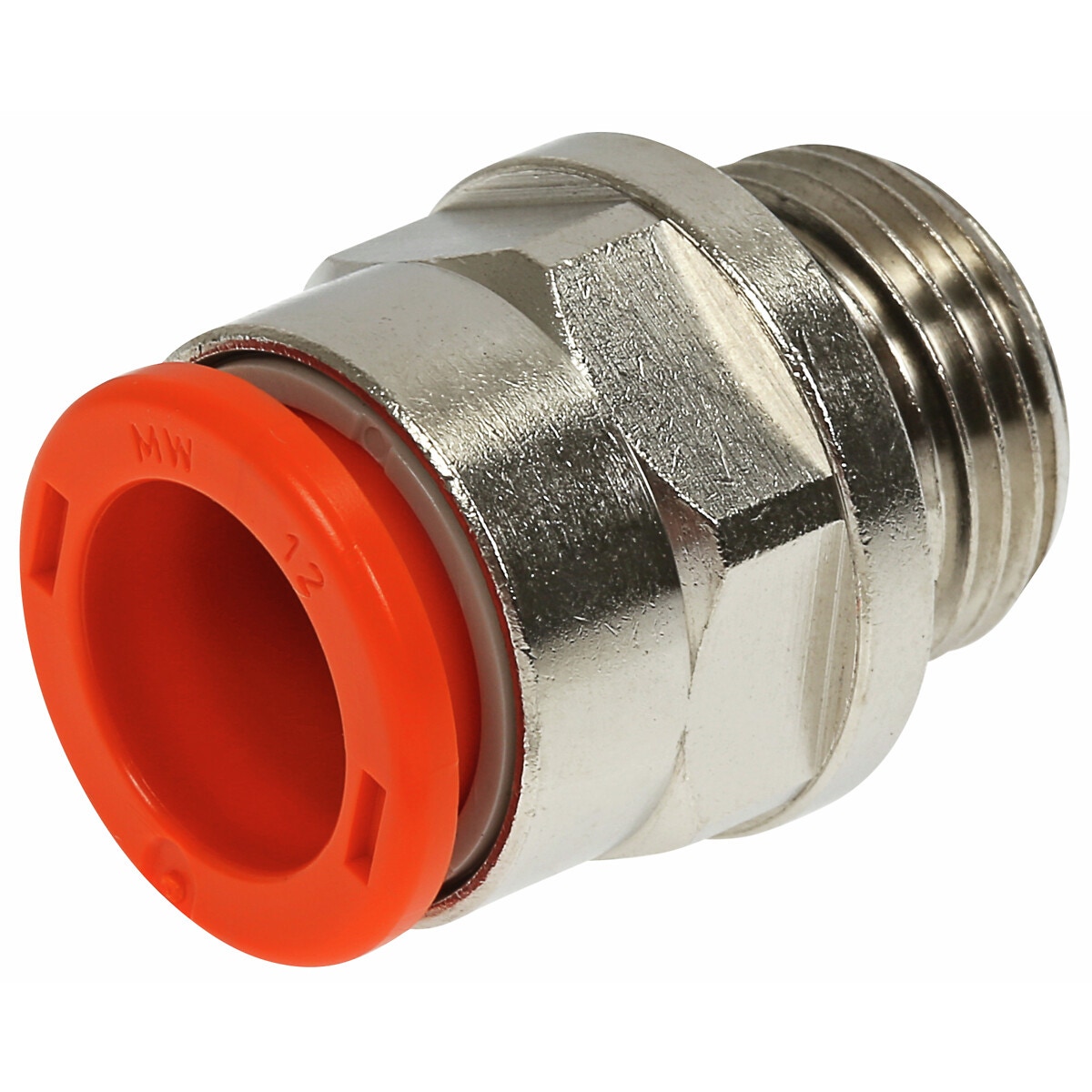

PUSH-IN SAVIENOJUMS 10MM-1/4 ĀRĒJĀ TAPA R1

Description

straight cylindrical push-in fitting with male thread (RL1) | material brass | with O-ring seal | operating pressure -0.99 – 16 bar | operating temperature -20…+80 °C | fluid: vacuum, compressed air | recommended pipe: Rilsan PA 11, nylon 6, polyamide 12, polypropylene | pipe Ø 10 | F thread G 1/4" | CH 16 | CH1 7 | P 8 | L 29.2 | D 7.2 | E 18

Attributes

Thread: G 1/4" -19 | Package length (cm): 2.9 | Package width (cm): 1.6 | Package height (cm): 1.6 | Gross weight (kg): 0.018000 | EAN: 8024986123517
