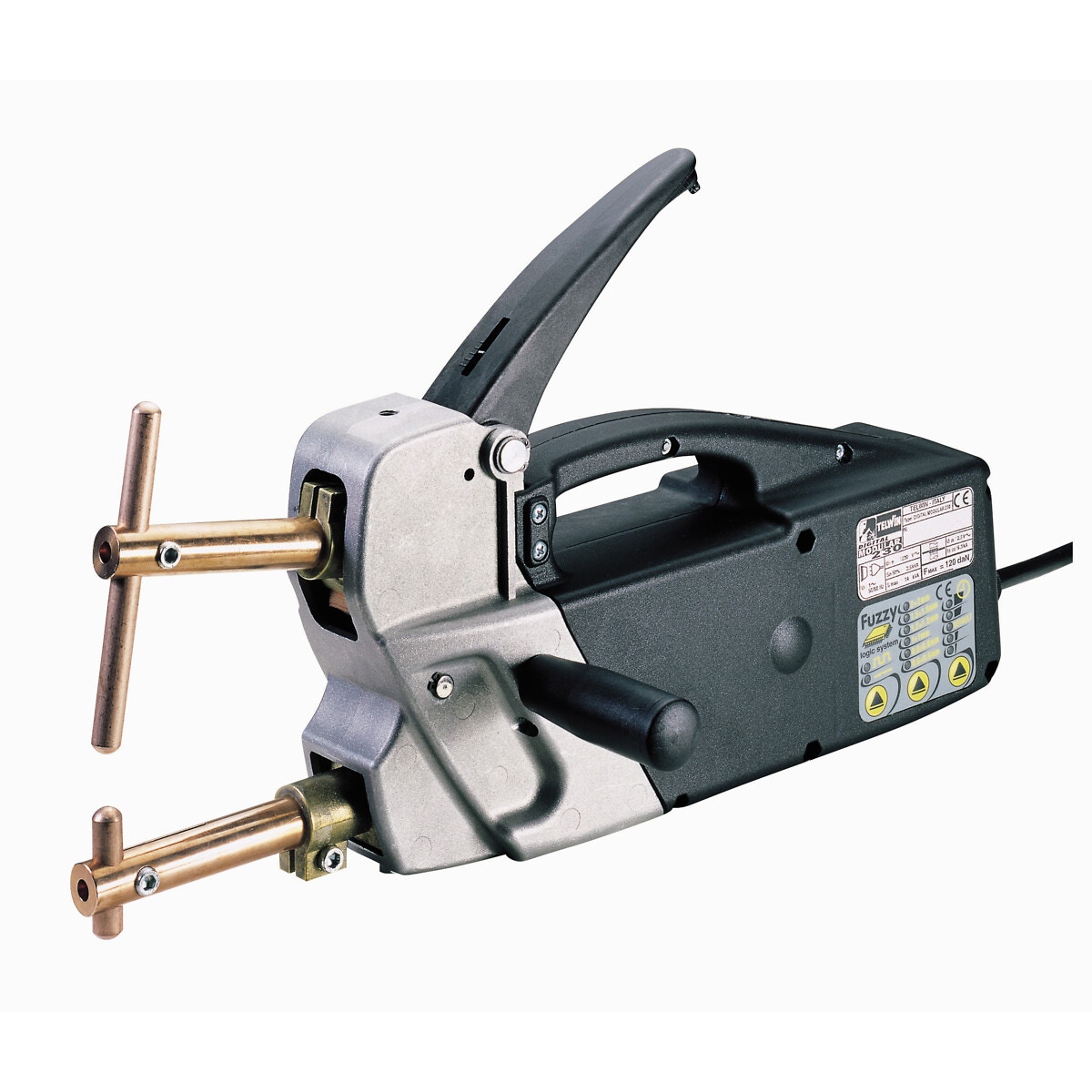

PUNKTVEIDA METINĀTĀJS 230 MAX 2+2MM

Description

single-phase, portable microprocessor controlled spot welding machine | suitable for spot welding of sheets of max. thickness 2+2 mm | automatic adjustment of welding time and current with respect to thickness of the material | choise between continuous and pulsed operation | arms pressure adjustable from 40 kg to 120 kg (with 120 mm arms) | mains voltage 230 V | fuse 25 A | efficiency 0,9 | max. no load voltage 2,5 V | max. spot welding current 6300 A | max. welding thickness 2+2 mm | protection class IP 20 | norms EN 60974-1, EN 60974-10 | dimensions L440, W100, H185 mm | weight 10,3 kg

Attributes

Package length (cm): 45 | Package width (cm): 33.5 | Package height (cm): 16 | Gross weight (kg): 11.600000 | EAN: 8004897465654
