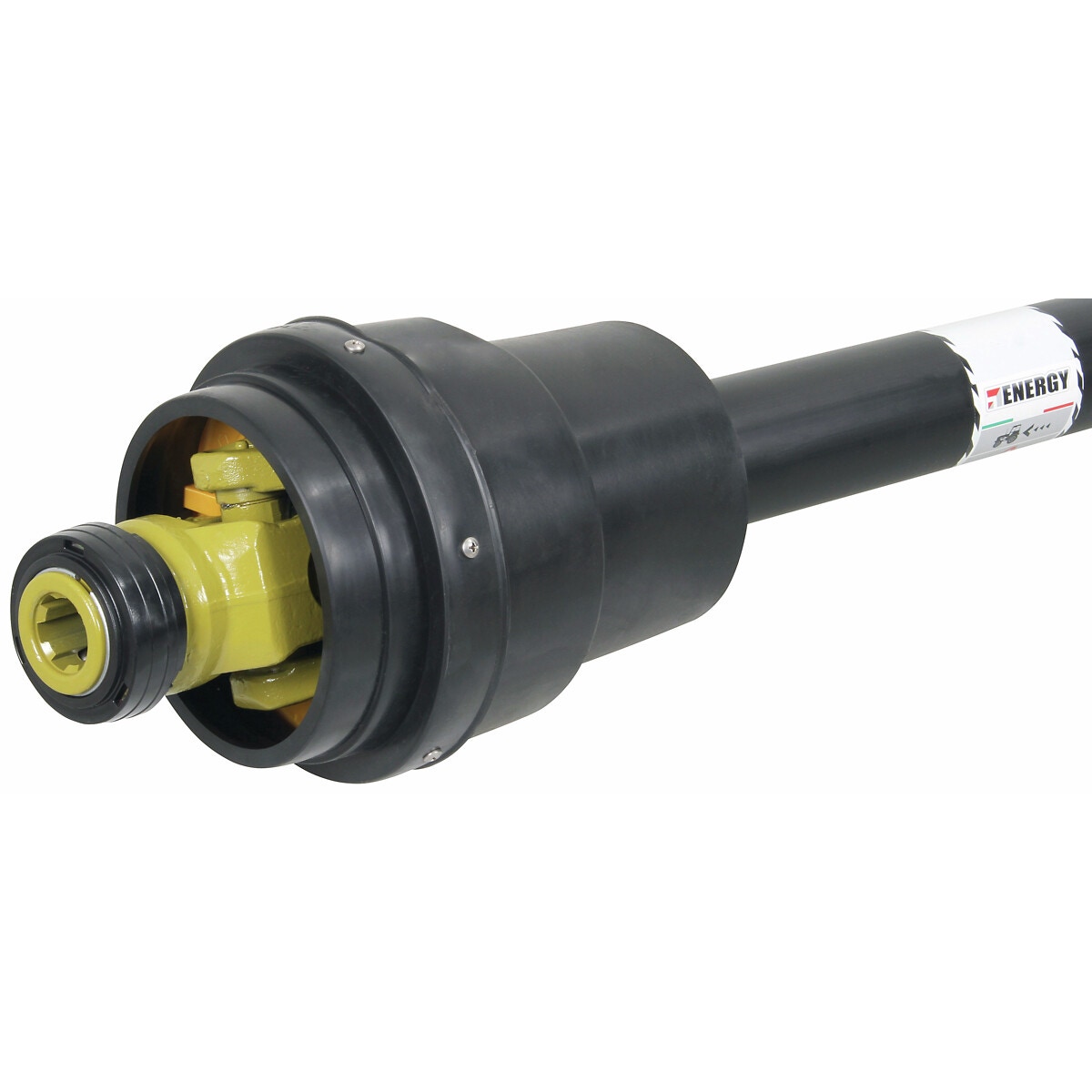

Pto vārpsta wwe2580 1.3/8-6 wideang+1.3/4-6 šķēres bo

Description

type: W65 (WWE2580) | bolt clutch 2920 Nm M10x60 DIN931 bolt 8.8 | outer yoke tractor end: 1.3/8"-6Z collar lock | outer yoke machine end: 1.3/4"-6Z pin luck | power 540 rpm: 66 kW / 90 hv / 1175 Nm | power 1000 rpm: 102 kW / 139 hv / 975 Nm | length: L 1210 mm, M min. 1454 mm, M max. 1919 mm | universal joints: A/B: 36 x 89 mm, C/D 32 x 110 mm, E/F 36 x 89 mm | inner tube: star profile A 51 mm, B 37 mm | outer tube: star profile A 61 mm, B 47 mm, S 4,5 mm | max. static load 3000: Nm | max. continuous operating angle: 25° | max. momentary working angle: 80° | suggested applications: trailers, balers, peat production machines etc. | see drawing for dimension references | calculations made based on continuous load: joint angle 10°, 1000 operating hours

Attributes

Universal joint size: 36 x 89 x 32 x 110 mm | Spline type: 1 3/8" Z6, 1 3/4" Z6 | Profile tube type: Star | Package length (cm): 143 | Package width (cm): 22 | Package height (cm): 22 | Gross weight (kg): 37.700000 | EAN: 6418914927247
