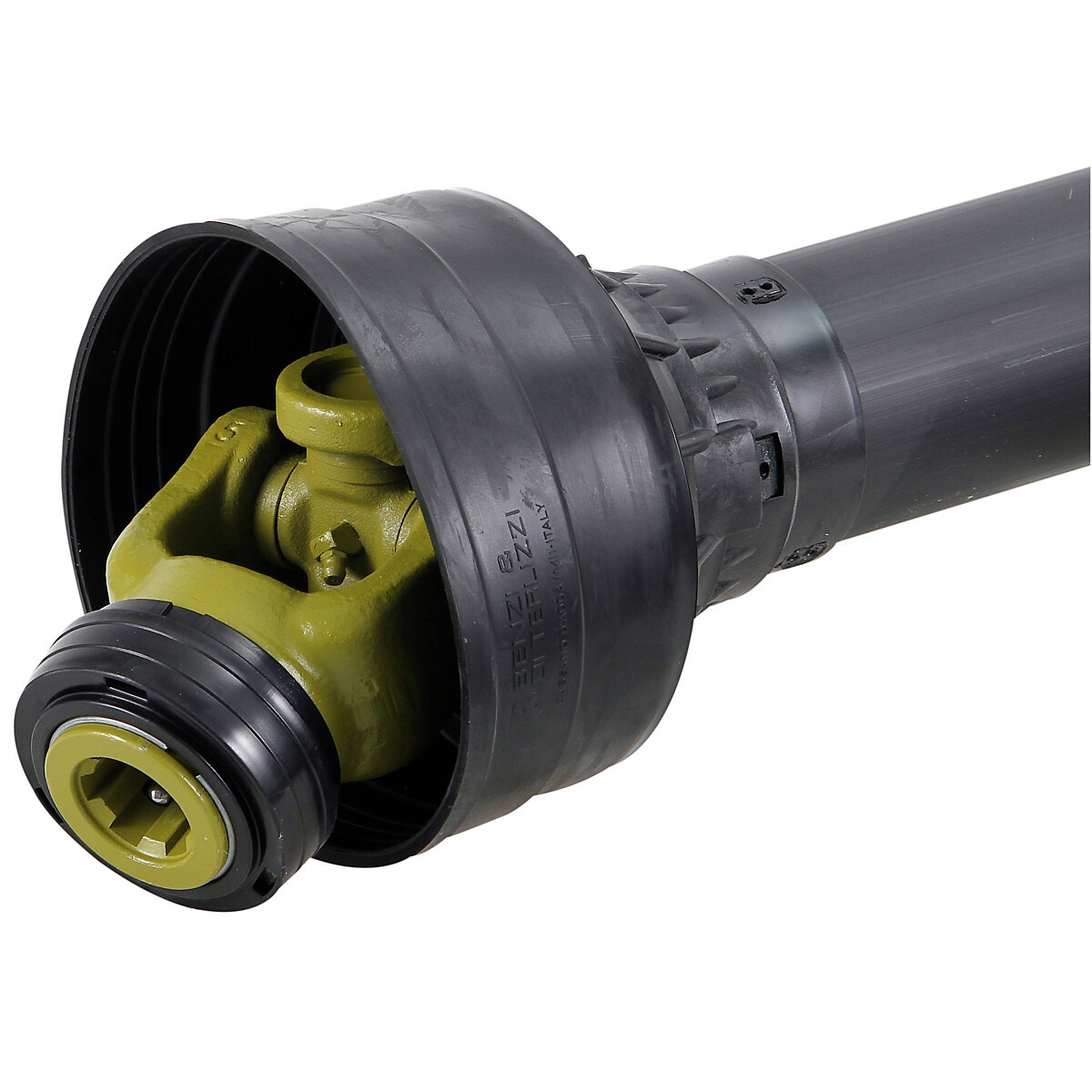

Pto vārpsta w2400 1.3/8-6

Description

type: L05 (W2400) | splines: 6 | power 540 rpm: 39 kW / 53 hp / 695 Mn | power 1000 rpm: 61 kW / 83 hp / 580 Mn | length: L 860 mm, M min. 1084 mm, M max 1436 mm | A/B: 32 x 76 mm | A 39,5 mm, B 49, S 4,5 mm | A 48 mm, B 57,5 mm, S 4 mm | max. static load limit: 2300 Nm | instructional targets of use: trailers, snow blowers, sprinkler pumps, mills, portable circular saws, field choppers, choppers, disc and drum mowers, balers, cutters, peat machines | basis of calculation: joint angle 5°, life 1000 h

Attributes

Universal joint size: 32 x 76 mm | Spline type: 1 3/8" Z6 | Profile tube type: Lemon | Package length (cm): 110 | Package width (cm): 18 | Package height (cm): 18 | Gross weight (kg): 16.220000 | EAN: 6418914648272
