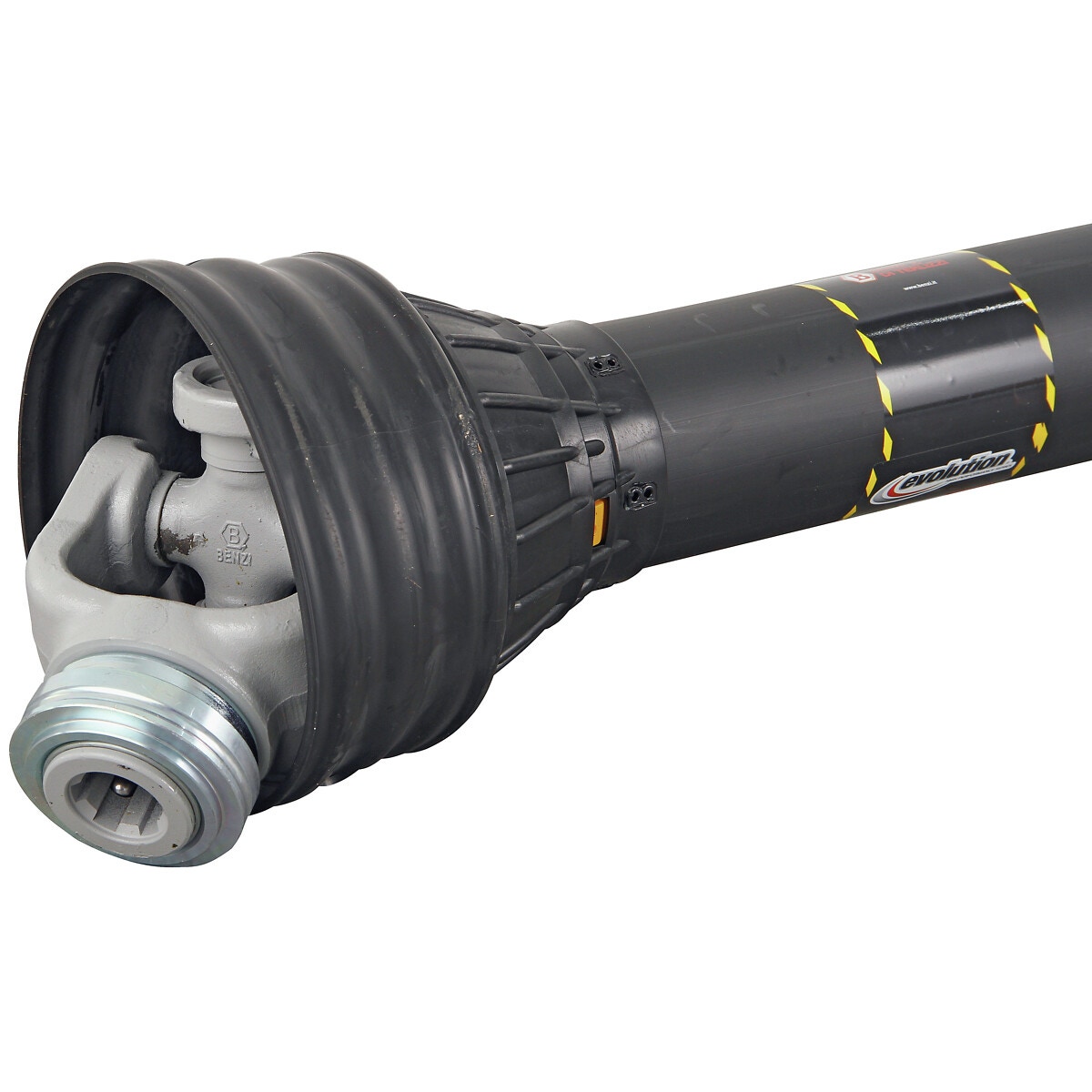

Pto vārpsta v08 1.3/8-6 bīdes skrūvju sajūgs 1.3/8-6

Description

type: V08 | bolt clutch 3500 Nm M12x65 DIN931 bolt 8.8 | outer yoke tractor end: 1.3/8”-6Z collar lock | outer yoke machine end: 1.3/8”-6Z pin lock | power 540 rpm: 77 kW / 105 hv / 1365 Nm | power 1000 rpm: 119 kW / 162 hv / 1142 Nm | length: L 860 mm, M min. 1110 mm, M max. 1520 mm | universal joint: A/B: 35 x 106.5 mm | inner tube: Star A 51 mm, B 37 mm | outer tube: star A 61 mm, B 47 mm, S 4.5 mm | max. static load: 2250 Nm | suggested applications: trailers, snow blowers, mulchers, wood chippers, peat production machines, etc. | See drawing for dimension references. | Calculations made based on continuous load: joint angle 5°, 1000 operating hours

Attributes

Universal joint size: 35 x 106,5 mm | Spline type: 1 3/8" Z6 | Profile tube type: Star | Package length (cm): 110 | Package width (cm): 20 | Package height (cm): 20 | Gross weight (kg): 28.020000 | EAN: 6418914870871
