PNEIMATISKAIS REGULATORS 1/8 SY1 R02 0-12BAR SYNTESI

Description

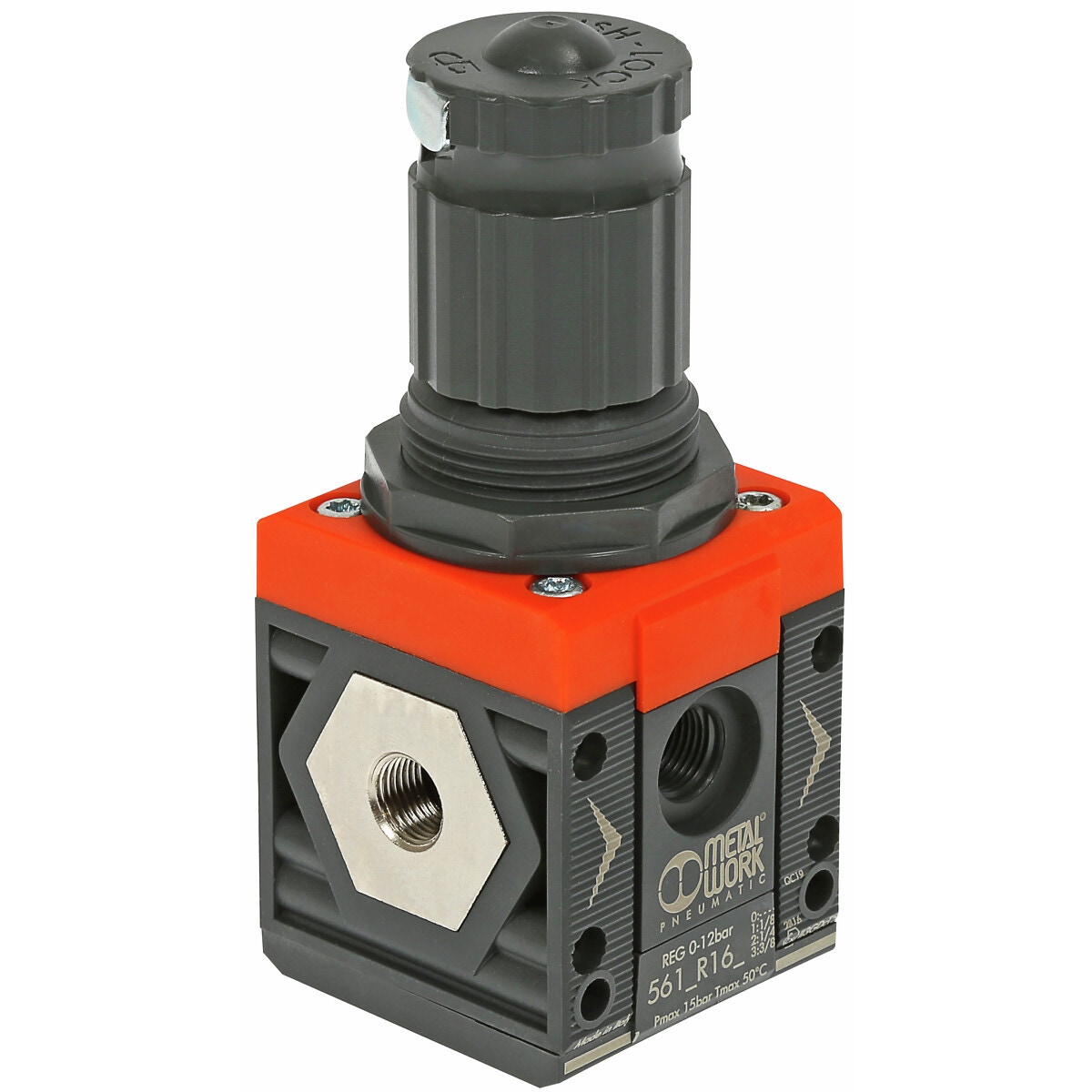

Syntesi regulator SY1 | stability of the set pressure as the upstream pressure varies | padlockable knob | thread G 1/8" | pressure gauge port or additional air take-off G 1/8" | setting range 0 – 12 bar | max. operating pressure 15 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 570 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 1200 Nl/min | relief valve flow rate at 6,3 bar 70 Nl/min | additional air take-off flow rate at 6,3 bar 500 Nl/min | operating temperature -10…+50 °C | fluid: compressed air or other inert gases | installation in any position | wall fixing screws M4 | weight 193 g | A 42 | B 102 | C 44 | D 51.5 | E 33.5 | F 25.8 | G M4 | I 16 | L M30x1,5 | M (pressure gauge port or air take-off) 1/8"

Attributes

Thread: G 1/8" -28 | Package length (cm): 5 | Package width (cm): 5.5 | Package height (cm): 12.3 | Gross weight (kg): 0.204000 | EAN: 8024986886320
