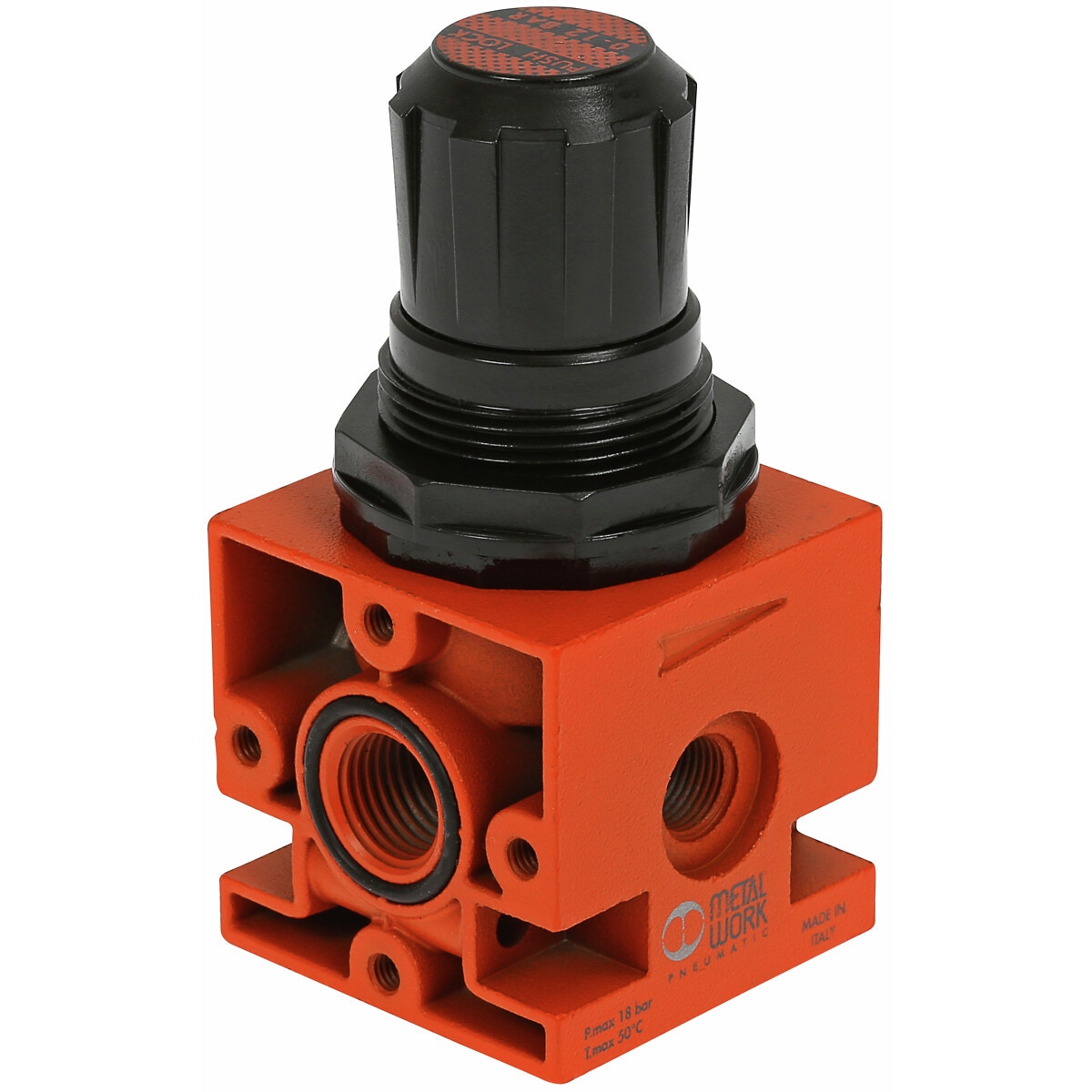

PNEIMATISKAIS REGULATORS 1/4 R0 40-12BAR JAUNS PIEDĀVĀJUMS

Description

New Deal regulator | stability of the set pressure as the upstream pressure varies | highly reliable, piston-operated | standard overpressure blow-off valve | thread G 1/4" | gauge port G 1/8" | setting range 0 – 12 bar | max. operating pressure 18 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 200 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 650 Nl/min | max. operating temperature +50 °C | fluid: filtered, lubricated or unlubricated compressed air (lubrication if used must be continuous) | wall fixing screws M4 x 40 | can be fixed to the wall | installation in any position | weight 0,3 kg | A 42 | B 94 | C 42 | D 42 | E 32 | F 30 x 1,5 | G 10 | I 25 | L M4 | M 49 | N (pressure gauge port) 1/8"

Attributes

Thread: G 1/4" -19 | Package length (cm): 6.3 | Package width (cm): 16 | Package height (cm): 20.7 | Gross weight (kg): 0.397000 | EAN: 8024986064377
