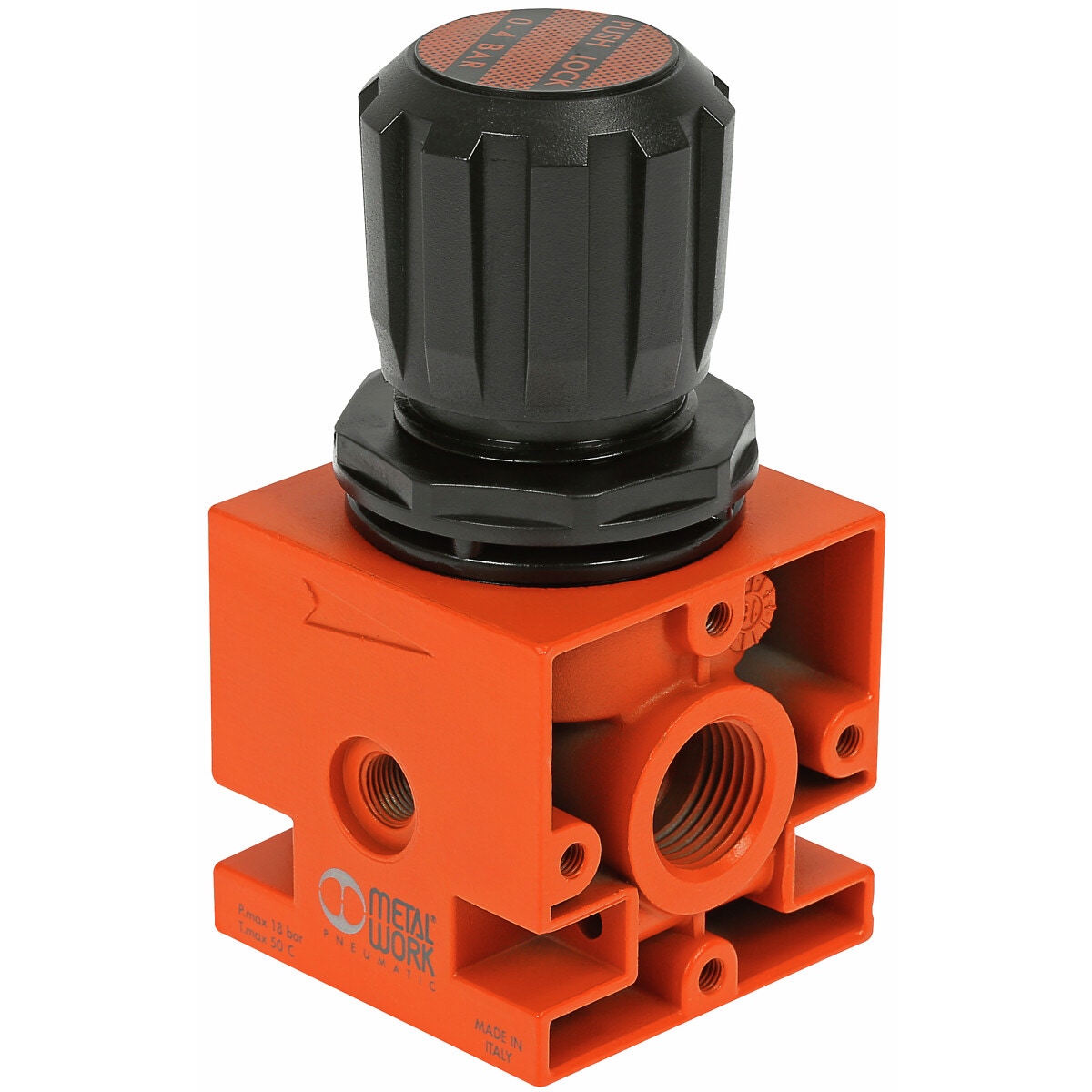

PNEIMATISKAIS REGULATORS 1/2 R08 0-4BAR JAUNS PIEDĀVĀJUMS

Description

New Deal regulator | stability of the set pressure as the upstream pressure varies | highly reliable, piston-operated | standard overpressure blow-off valve | thread G 1/2" | gauge port G 1/8" | setting range 0 – 4 bar | max. operating pressure 18 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 1100 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 2500 Nl/min | max. operating temperature +50 °C | fluid: filtered, lubricated or unlubricated compressed air (lubrication if used must be continuous) | wall fixing screws M4 x 55 | can be fixed to the wall | installation in any position | weight 0,8 kg | A 60 | B 130 | C 60 | D 60 | E 46 | F 38 x 2 | G 14 | I 35 | L M4 | M 70 | N (pressure gauge port) 1/8"

Attributes

Thread: G 1/2" -14 | Package length (cm): 14.5 | Package width (cm): 7 | Package height (cm): 7 | Gross weight (kg): 0.816000 | EAN: 8024986119060
