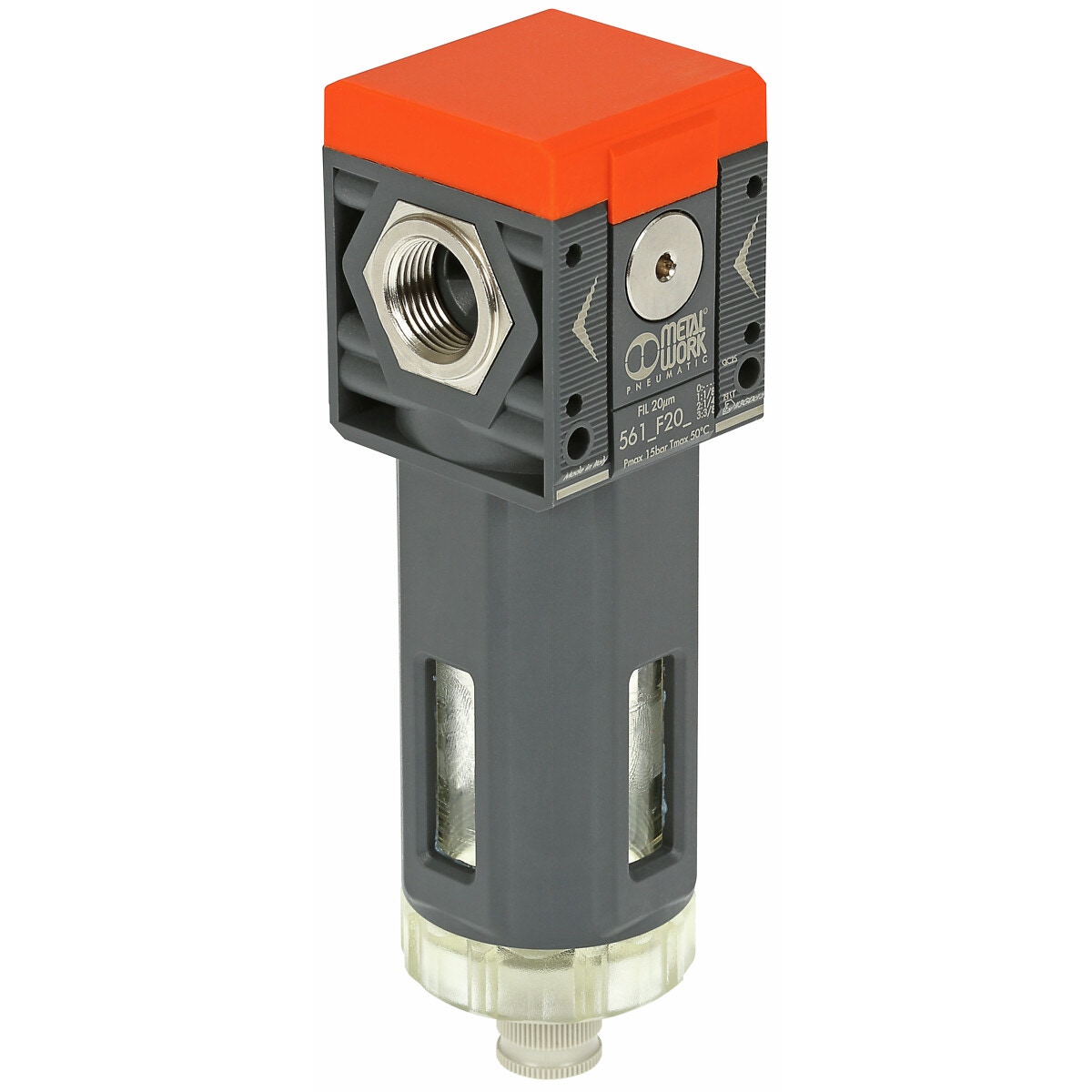

PNEIMATISKAIS FILTRS 3/8 SY1 F06 20MIC SYNTESI

Description

Syntesi filter SY1 | RMSA: drain with manual condensate discharge and automatic discharge at zero pressure | thread G 3/8" | port for additional air take-off G 1/8" | degree of filtration 20 micron (output air purity class ISO8573-1: 4.7.4) | max. operating pressure 15 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 1300 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 1750 Nl/min | additional air take-off flow rate at 6,3 bar 500 Nl/min | operating temperature -10…+50 °C | fluid: compressed air or other inert gases | tank capacity 30 cm³ | mounting position vertical | wall fixing screws M4 | weight 164 g | A 42 | A1 44 | B 148 | C 44 | D 51.5 | E 33.5 | F 25.8 | G M4 | I 16 | L 202 | Q (additional air take-off) 1/8"

Attributes

Thread: G 3/8" -19 | Package length (cm): 17.4 | Package width (cm): 5.6 | Package height (cm): 4.8 | Gross weight (kg): 0.187000 | EAN: 8024986886092
