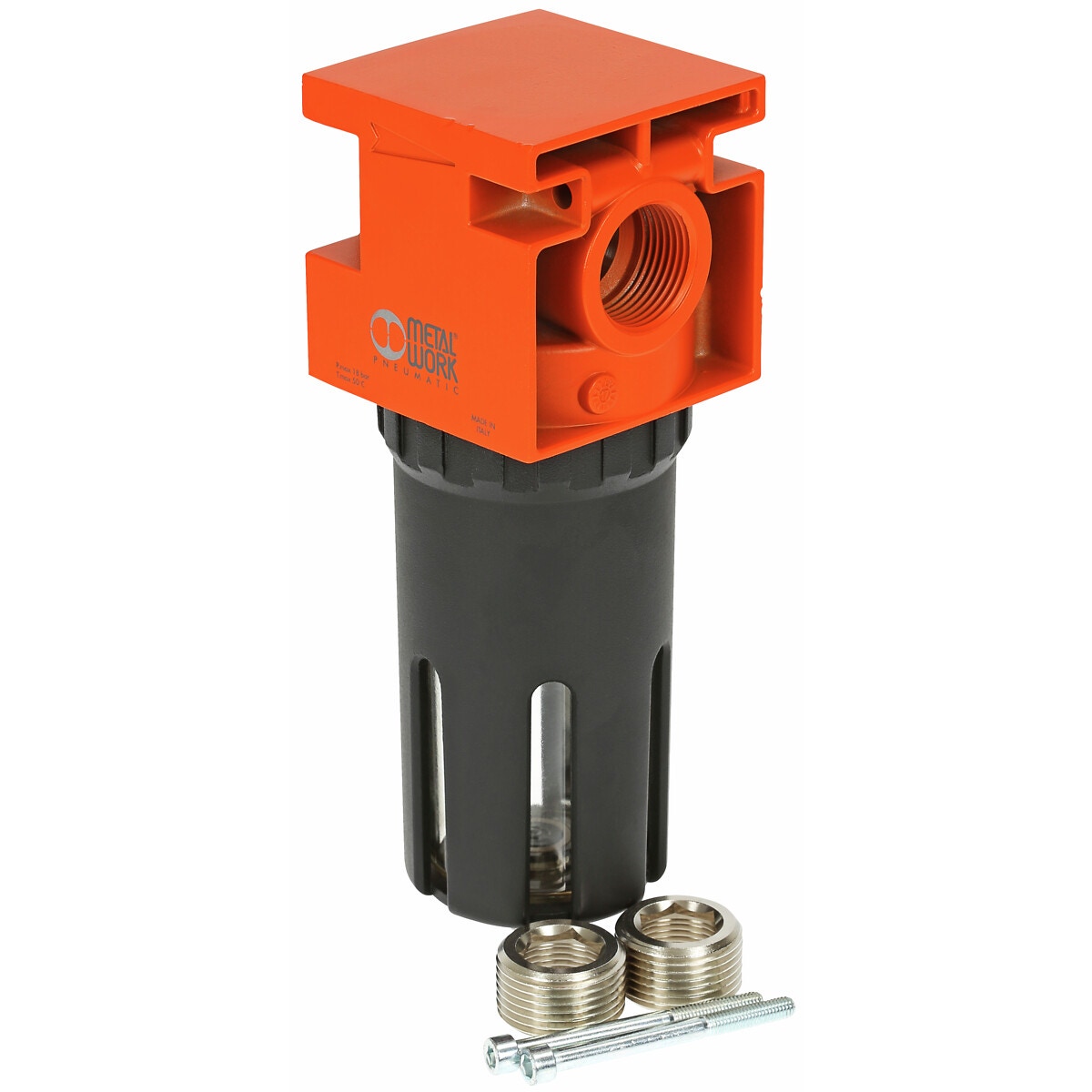

PNEIMATISKAIS FILTRS 3/4 F12 20MIC JAUNS PIEDĀVĀJUMS

Description

New Deal filter | RMSA: drain with manual condensate discharge and automatic discharge at zero pressure | thread G 3/4" | degree of filtration 20 micron | max. operating pressure 18 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 9100 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 11000 Nl/min | max. operating temperature +50 °C | fluid: compressed air | tank capacity 170 cm³ | wall fixing screws M6 x 75 | mounting position vertical | weight 1,2 kg | A 80 | B 235 | C 80 | D 80 | E 66 | G 22 | H 40 | L M6 | M 325

Attributes

Thread: G 3/4" -14 | Package length (cm): 29 | Package width (cm): 9 | Package height (cm): 9 | Gross weight (kg): 1.320000 | EAN: 8024986121285
