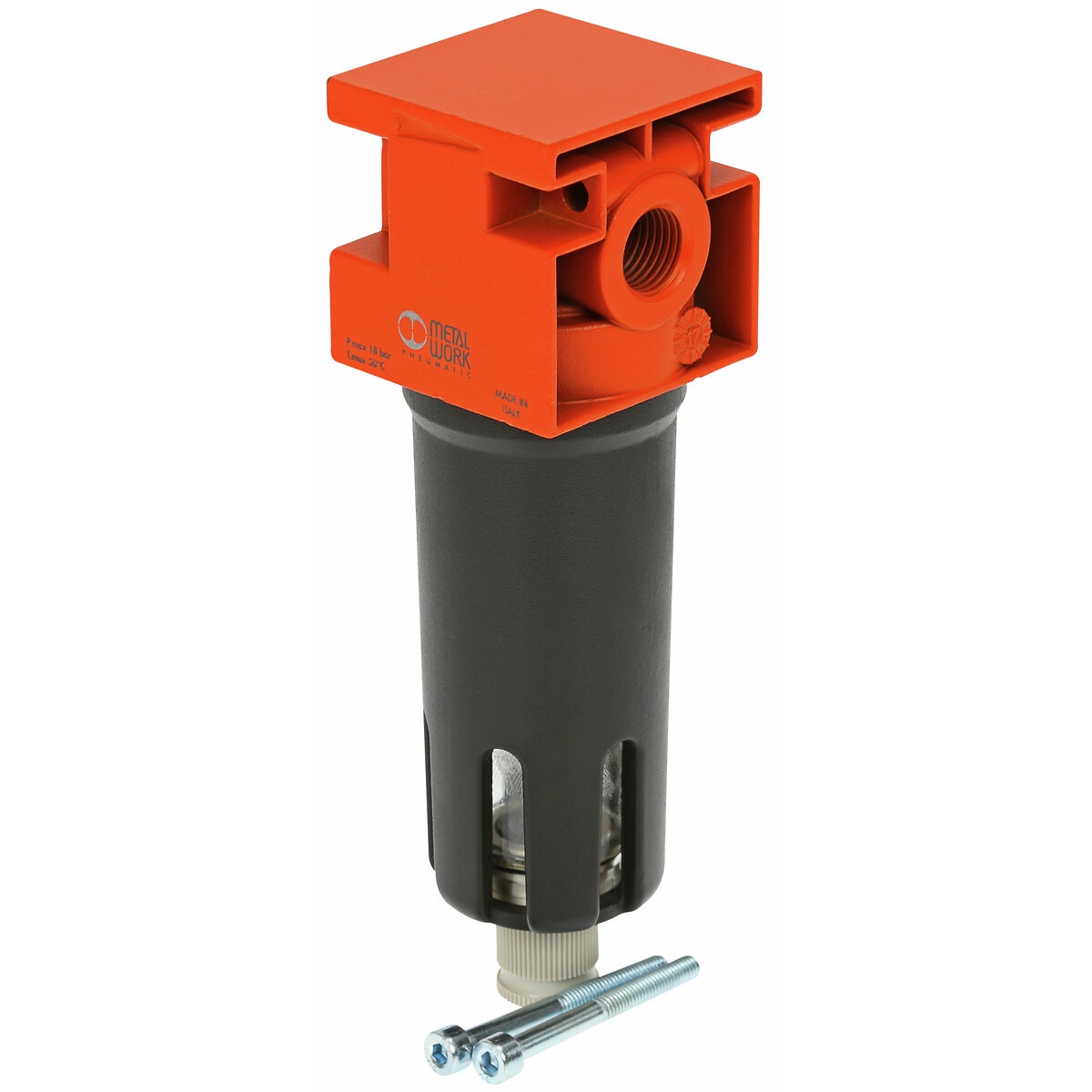

PNEIMATISKAIS FILTRS 1/4 F04 20MIC JAUNS PIEDĀVĀJUMS

Description

New Deal filter | RMSA: drain with manual condensate discharge and automatic discharge at zero pressure | thread G 1/4" | degree of filtration 20 micron | max. operating pressure 18 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 1300 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 1720 Nl/min | max. operating temperature +50 °C | fluid: compressed air | tank capacity 10 cm³ | wall fixing screws M4 x 40 | mounting position vertical | weight 0,4 kg | A 42 | B 142 | C 42 | D 42 | E 32 | G 10 | H 21 | L M4 | M 185

Attributes

Thread: G 1/4" -19 | Package length (cm): 20.2 | Package width (cm): 5 | Package height (cm): 5 | Gross weight (kg): 0.322000 | EAN: 8024986107791
