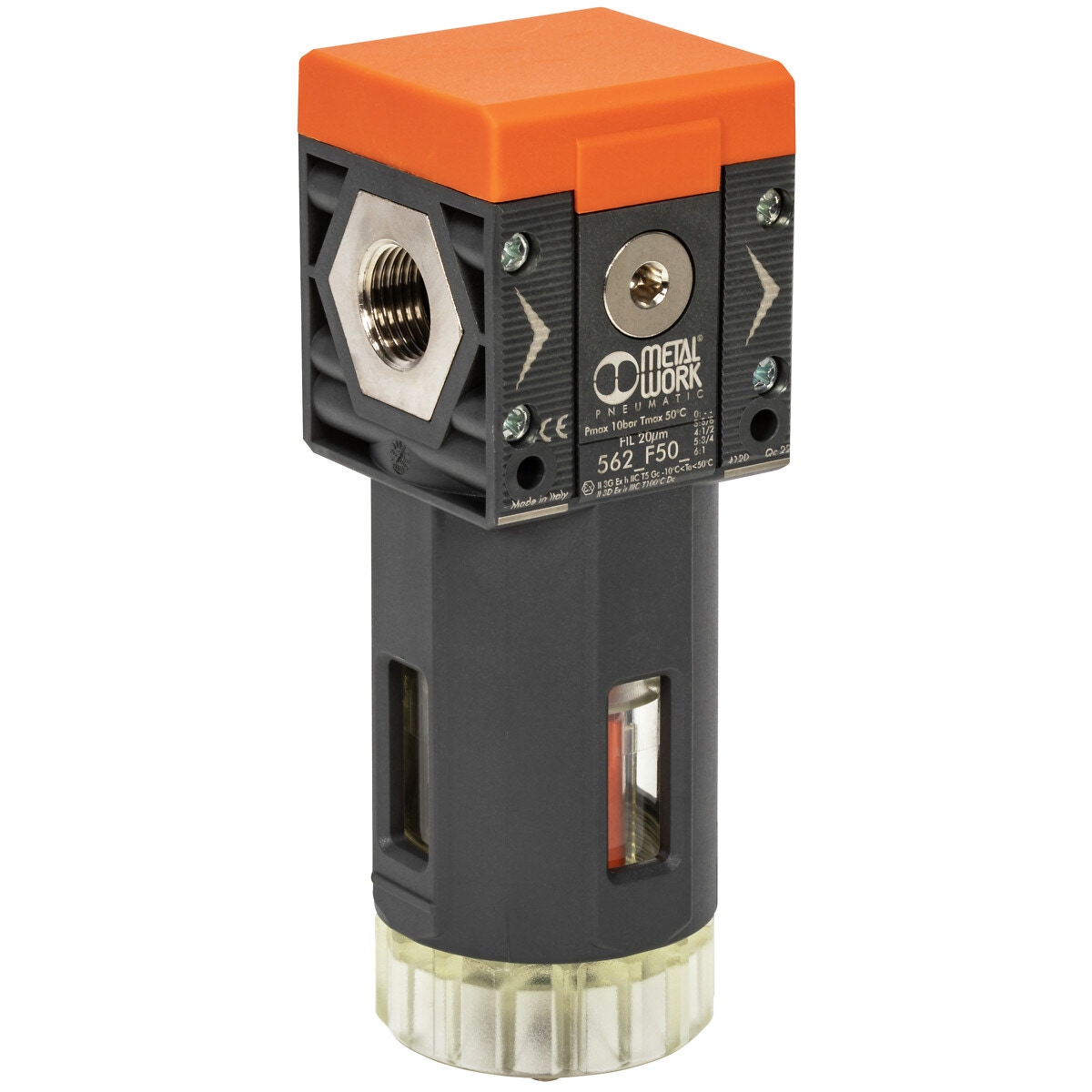

PNEIMATISKAIS FILTRS 1/2 SY2 20MIC SYNTESI AUTO
109 €
✓ Pieejams
Description
Syntesi filter SY2 | RA: condensate is drained automatically regardless of pressure or flow (a 6 mm hose is inserted in the outlet connection to direct the water to the desired location) | thread G 1/2" | pressure gauge port or additional air take-off G 1/4" | degree of filtration 20 micron (output air purity class ISO8573-1: 4.7.4) | max. operating pressure 13 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 3800 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 5200 Nl/min | additional air take-off flow rate at 6,3 bar 1500 Nl/min | operating temperature -10…+50 °C | fluid: compressed air or other inert gases | tank capacity 70 cm³ | mounting position vertical | wall fixing screws M5 | weight 461 g | A 61 | B 178 | C 61 | D 70.5 | E 47.5 | F 38.2 | G M5 | I 22.5 | L 245 | Q (additional air take-off) 1/4"
Attributes
Thread: G 1/2" -14 | Package length (cm): 20.8 | Package width (cm): 6.6 | Package height (cm): 6.6 | Gross weight (kg): 0.493000 | EAN: 8024986994148
