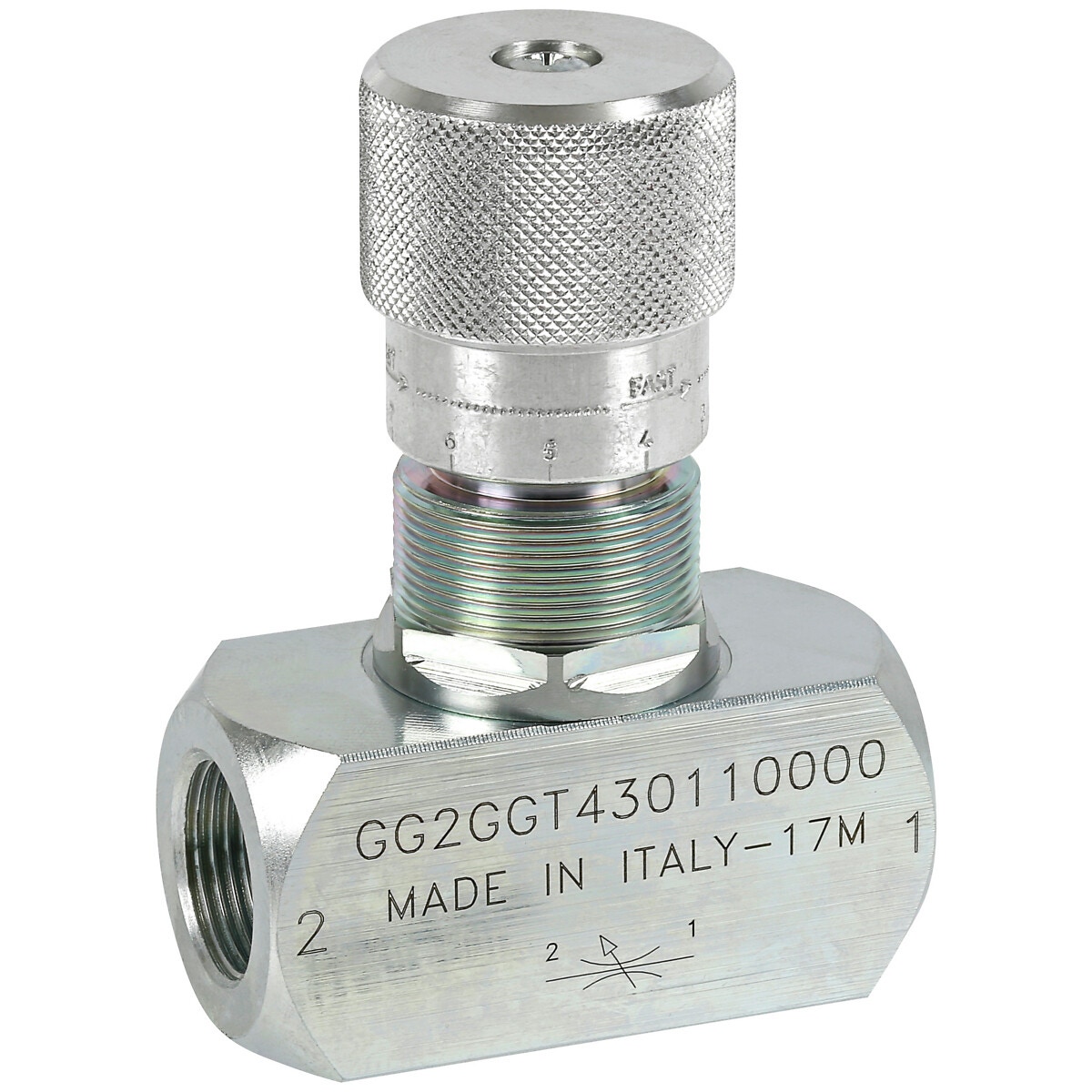

Plūsmas regulēšanas vārsts 3/4 80l 350bar
90 €
✓ Pieejams
Description
type BD | DIN ISO 228 BSP | flow regulator valve is used to adjust flow speed of actuators in both directions | flow adjustment is made by rotating the hand knob after loosening the side locking screw | material carbon steel | hose DN 20 | connection G 3/4" | max. flow 80 l/min | max. pressure 350 bar | weight 1,1 kg | A 40 | B 20 | C 81 | G 40 | ØH 42 | I 110 | L 21 | ØM G 3/4" | ØN M35x1,5
Attributes
Thread: G 3/4" -14 | Package length (cm): 11 | Package width (cm): 8 | Package height (cm): 4 | Gross weight (kg): 1.096000 | EAN: 6418914961692
