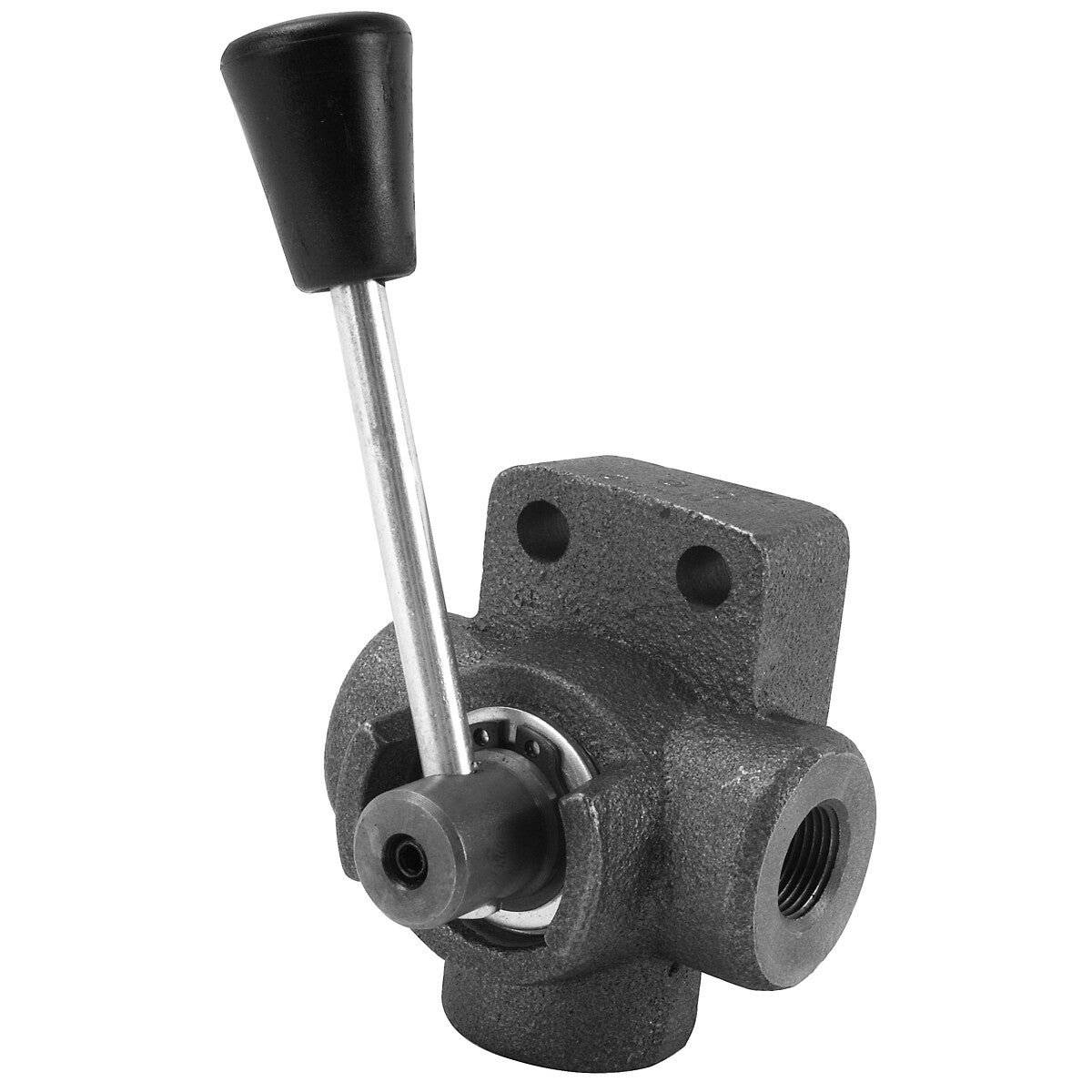

Plūsmas novadītājs 1/2

Description

the model D3G A and D3G C, two-position selector valve is a three way hydraulic selector offering a simple method of directing the flow of oil in a hydraulic system to two separate hydraulic lines | the addition of this selector valve to the hydraulic system will permit operation of two single-acting cylinders with one three-way control valve | valve spool D3G A is of the open crossover type, as spool is moved and one outlet port starts to close, the opposite outlet port opens | valve spool D3G C is closed centre type, as spool is moved all the cylinder ports remain closed | model D3G12A | max. flow 60 l/min | max. pressure 250 bar | threads A, B, P 1/2" GAS | B 25,5 | C 145 | D 11 | E 32 | F 94 | G 70 | H 83

Attributes

Thread: G 1/2" -14 | Package length (cm): 14.5 | Package width (cm): 8 | Package height (cm): 7.2 | Gross weight (kg): 1.390000 | EAN: 6418914175761
