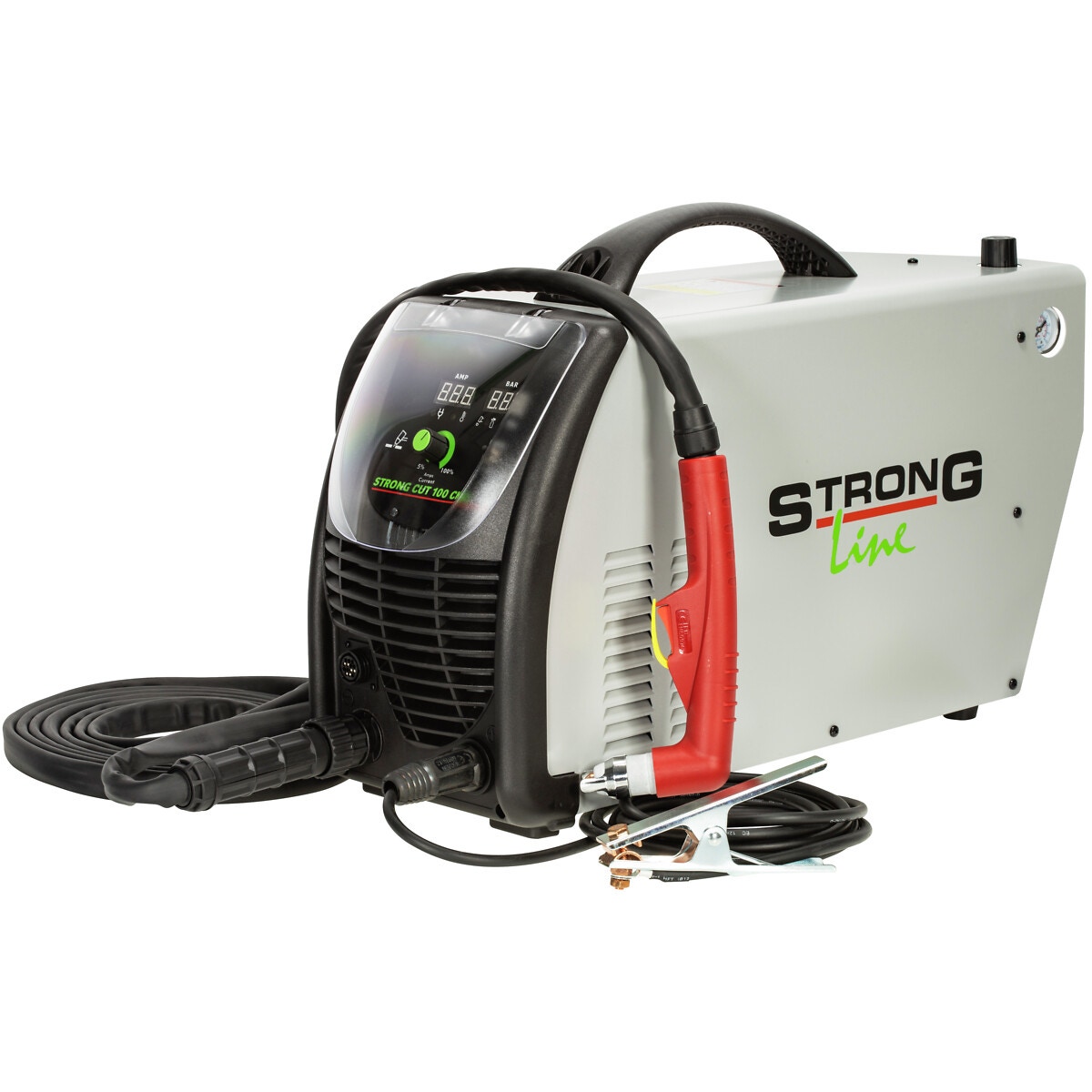

Plazmas metinātājs spēcīgs griezums 100 cnc

Description

IGBT parallel balanced current technology and digital control technology | wider input voltage flexibility provides peak performance power under variable conditions (±10%) for steady cuts | EMI filter restrains the EMI transmission of the power | starts without high-frequency so it will not interfere with controls or computers | Pilot Arc Controller increases cutting capabilities and speeds, and improves tip life so it can be applied to cut netlike workpiece | various protective and alarm functions for pressure, tip, over-temperature and over-current allow faster troubleshooting, eliminating unnecessary downtime | back striking tip and electrode ensure the velocity of striking and the quality of arc, and extend the life of them | power supply voltage 3-phase 400 V | rated input voltage 27.4 A | rated input voltage 19 kW | adjustment range of current 20 – 100 A | max. no-load voltage 387 V | duty cycle (40 °C, 10 minutes) 100% 100 A 120 V | severance cut for carbon steel < 60 mm | optimal cutting thickness carbon steel < 45 mm / stainless steel < 45 mm / aluminium < 36 mm / copper < 20 mm | cooling method AF | ground cable 4 m | welding torch cable 6 m | protection class IP21S | insulation class H | dimensions 680 x 240 x 440 mm | weight 31.7 kg

Attributes

Package length (cm): 73.5 | Package width (cm): 31.5 | Package height (cm): 56 | Gross weight (kg): 38.000000 | EAN: 6418914052215
