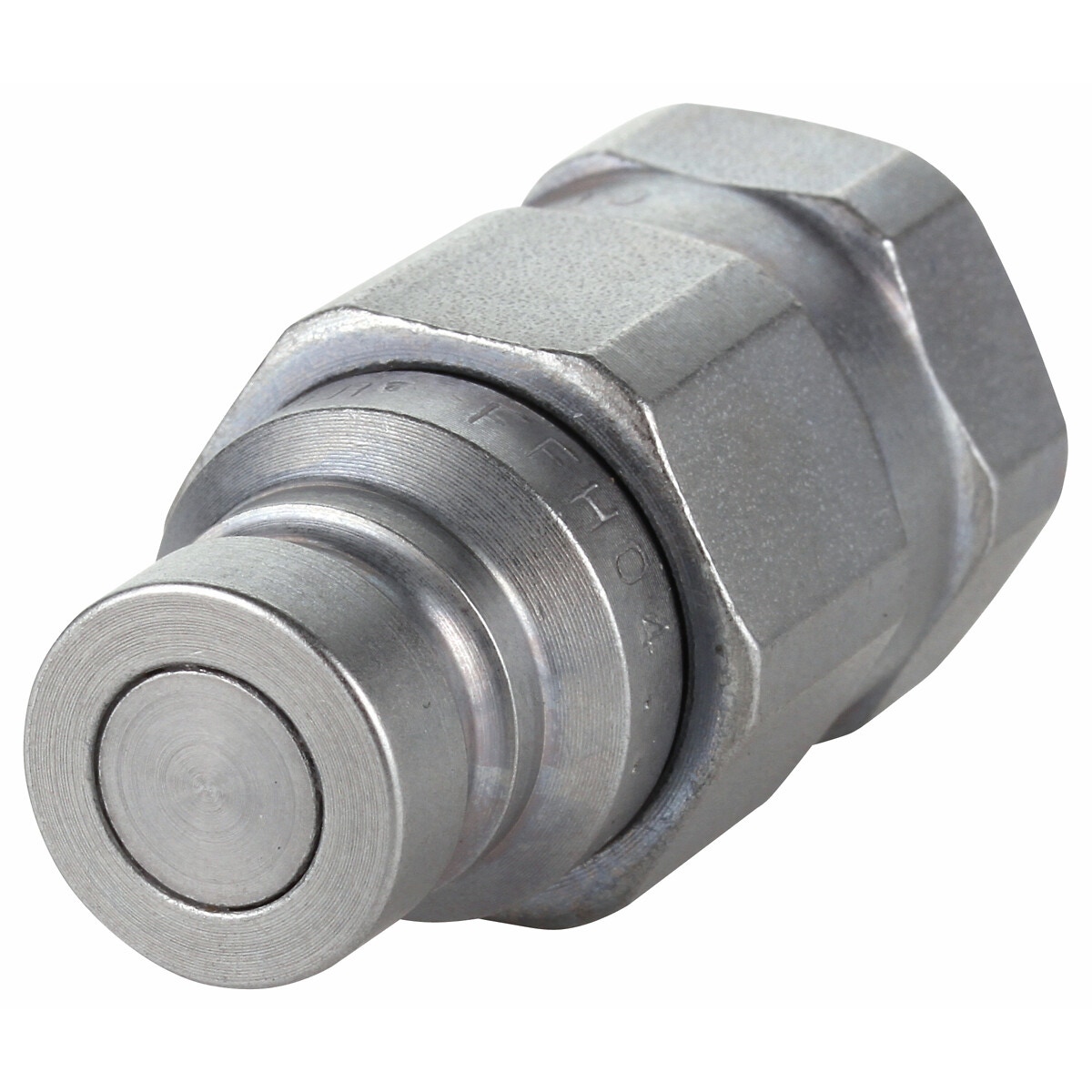

PLAKANĀ TIPA ĀTRĀ SAVIENOJUMA SAVIENOJUMS VĪRIEŠU 1″ BSP ĀTRĀKS

Description

flat-face quick coupling | interchangeability according to (ISO 16028) standard | connection / disconnection not allowed under pressure | working pressure 350 bar | flow rate 230 l/min | bursting pressure 1400 bar | force to connect 280 N | E thread 1" BSP female | C 106 mm | H 36 mm | L 183 mm (female + male) | Y 55 mm

Attributes

Thread: G 1" -11 | Package length (cm): 5.5 | Package width (cm): 5.5 | Package height (cm): 10.2 | Gross weight (kg): 1.067000 | EAN: 6418914892941
