PAŠIZGĀZĒJA CILINDRS 11,5TN 580-2050MM MONTĀŽA APAKŠĀ

Description

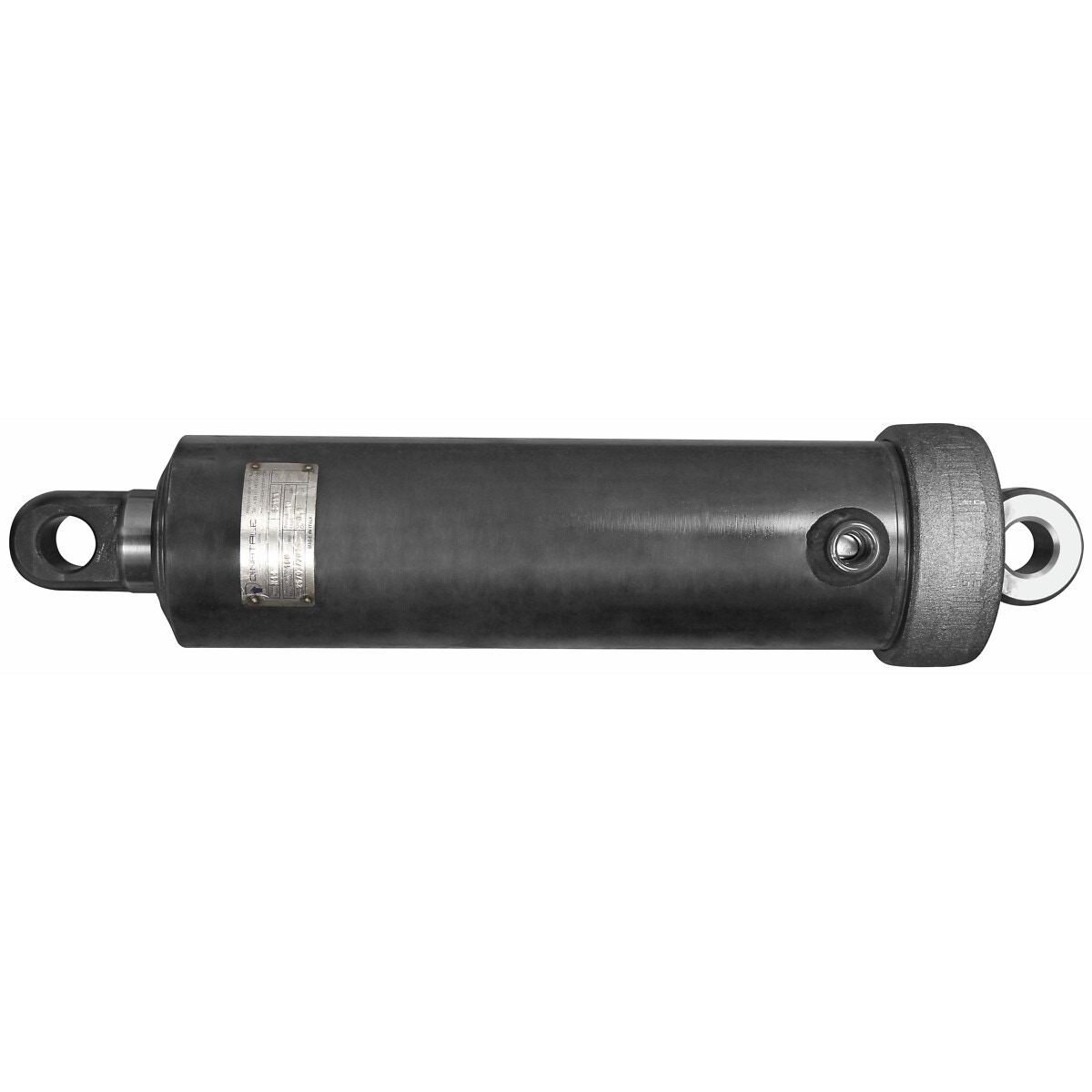

bottom mounted telescopic cylinder for tipping trailer | Tenifer® treatment, excellent resistance to wear and stress, the intermetallic compounds produce an excellent anti-friction layer which enables the sliding of the stages steel against steel | the stages are free from bushings or guide rings, this also allows a longer guide and enables the cylinder to be operated at maximum pressure at the end of its stroke | surface roughness 0.20 micron, minimal wearing of seals | operating temperature of the seals -40…+110 °C | all cylinders are subjected to final operational testing at hydraulic pressures of 220 bar | max. operating pressure 200 bar | cylinder with threaded bottom, easy to disassemble, maintain and repair | stroke 1510 mm | capacity 11.5 ton (200 bar) | outer tube Ø 124 mm | installation length 580 mm | minimum length 560 mm | pin size upper/lower 30 mm | hydraulic coupling BSP 1/2" | oil capacity 9 l | stages 61/76/91/107 mm | weight 39 kg

Attributes

Package length (cm): 63.5 | Package width (cm): 14.5 | Package height (cm): 17 | Gross weight (kg): 39.000000 | EAN: 6418914927841
