Paplāksne m14 (9/16″) maize 4prs delta n-l

Description

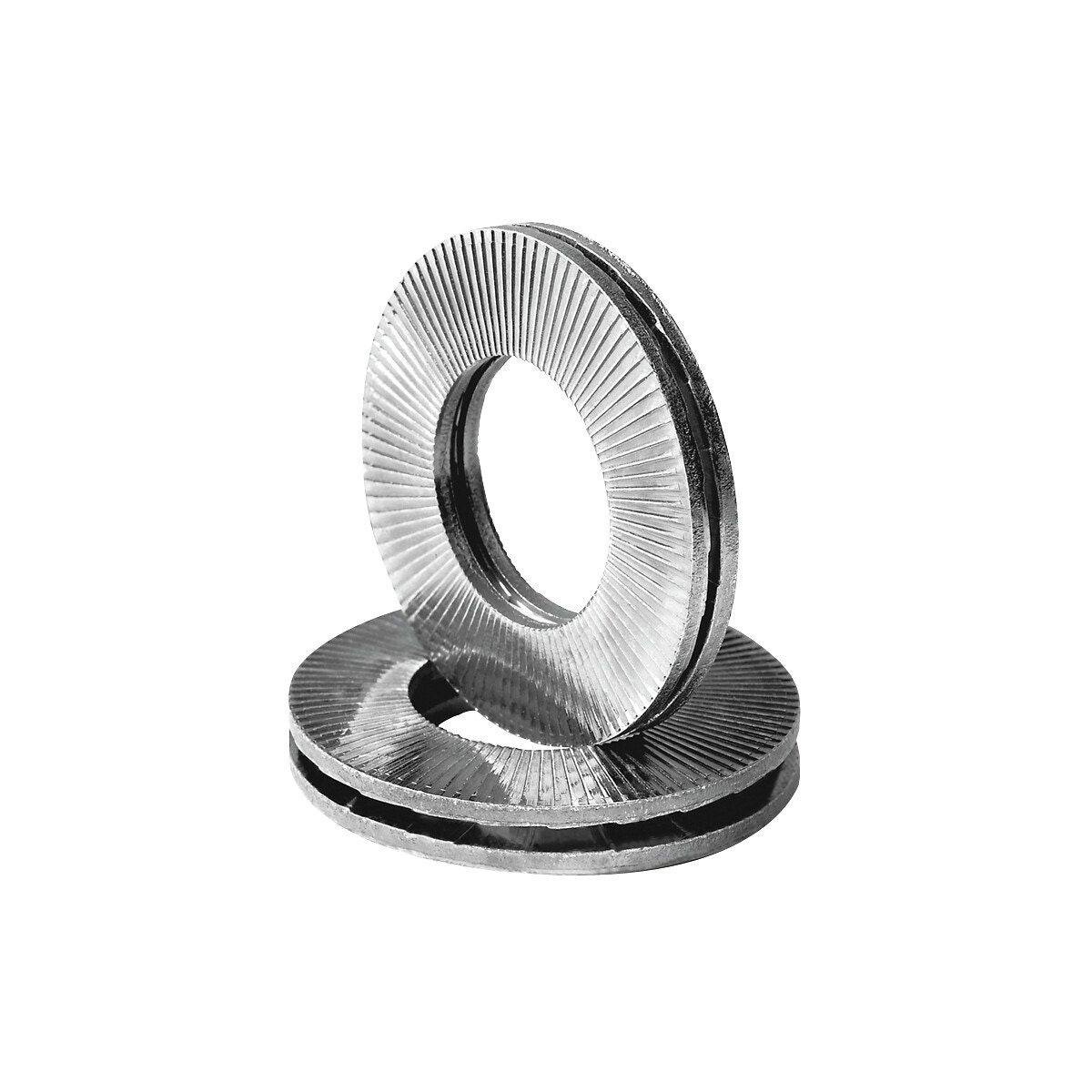

size M14 (UNC 9/16") | inner diameter (R) Ø 15,2 mm | outer diameter (A) Ø 30,7 mm | thickness (P) 3,4 mm | EN 1.7182 or equivalent steel, zinc-flake coating, Delta Protekt®, through hardened | for tapped holes, counter bores, through holes and stud bolts | used in: industry, transportation, mining, construction, ship building, forestry and agriculture, heavy vehicles, motor racing etc. | operating temperature -40°C to +200°C | 4 pairs / package | made in Sweden | wedge-locking system | Nord-Lock washers consist of two pieces – to make the first installation easier the pairs are slightly clued together | each washer pair is laser marked and therefore traceable | washers resist loosening caused by vibration and dynamic loads | a safe locking system according to DIN65151 vibration test | maintains high clamp load and thereby ensures the function of the joint | quick and easy to install and remove with standard tools | untightening torque is basically the same as torque used in tightening | can be installed as dry but the lubrication is recommended as it increases the tightening result (the lubrications like WKR21 or MA3120597) | can be used with fasteners up to grade 12.9 | reusable | the washers are hardened and can support and distribute great loads | high corrosion resistance (at least 600 hours in salt spray test) | reliable locking even for joints with short clamp length | verifiable locking function | ISO 9001 and ISO 14001 certificates | TÜV certified for safety and quality | "SP" washers for soft underlying surfaces and large / slotted holes | elegant solution – modern technology | blister packages have installation instructions in 17 different languages

Attributes

Thread: M14 x 2,0 | Inner diameter Ø (mm): 15.2 | Inner diameter Ø (mm): 15.20 | Outer diameter Ø (mm): 30.7 | Outer diameter Ø (mm): 30.70 | Thickness (mm): 3.4 | Material: Steel | Surface: Delta Protekt | DIN: DIN 65151 | Package length (cm): 9 | Package width (cm): 1.5 | Package height (cm): 16 | Gross weight (kg): 0.075000 | EAN: 7330948018076
