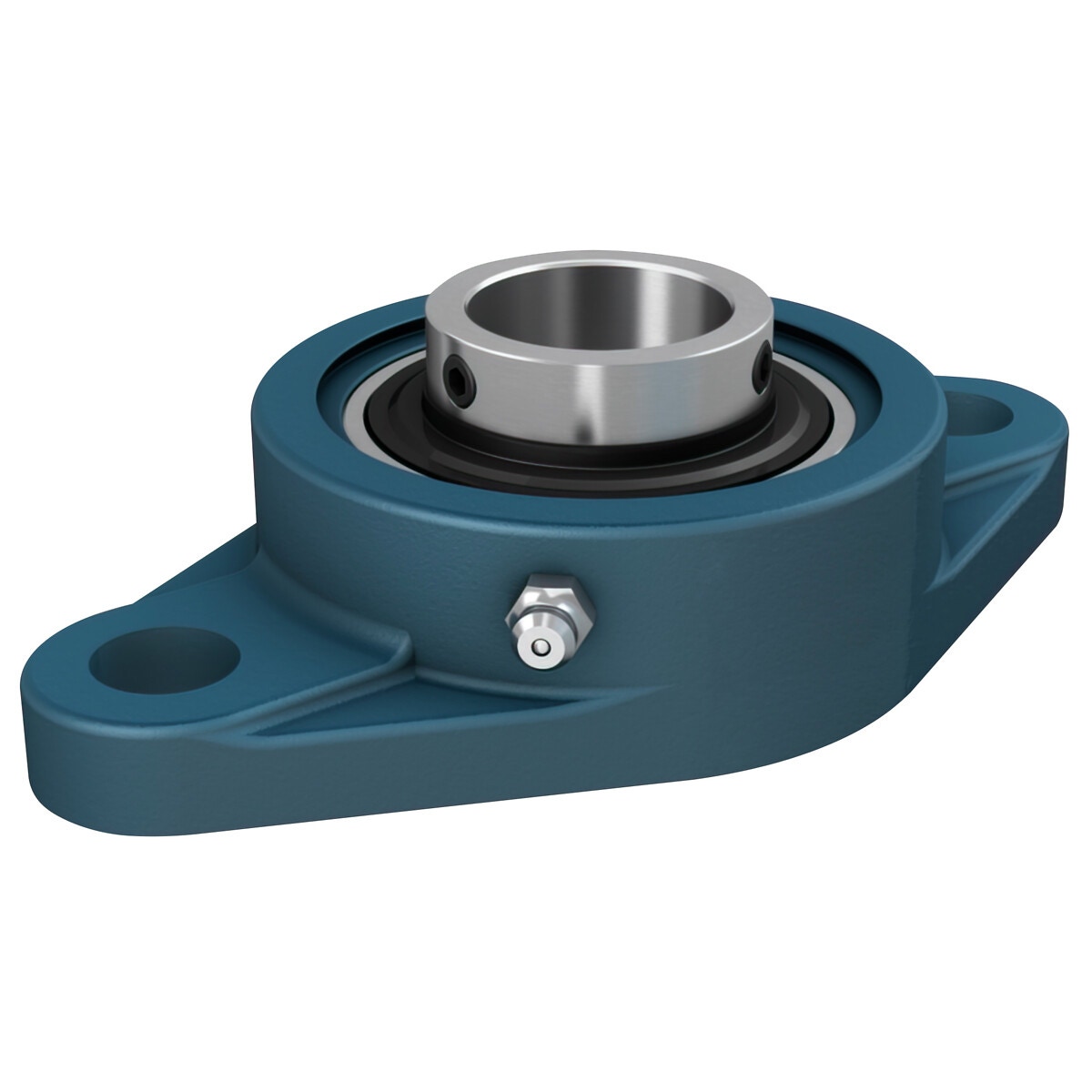

Ovāls atloka lodīšu gultņu bloks 25 mm skf

Description

bore diameter (d) 25 mm | outer diameter, inner ring (d1) 33.74 mm | overall width (A) 27 mm | flange width (A1) 13 mm | standout of end cover (A5) 20.5 mm | width of inner ring (B) 34.1 mm | distance from locking device side face to thread centre (B4) 5 mm | top external diameter (Db1) 68 mm | overall height (H) 130 mm | distance between attachment bolts (J) 99 mm | overall length (L) 68 mm | diameter of attachment bolt hole (N) 16 mm | distance from locking device side face to raceway centre (s1) 19.8 mm | overall unit width (T) 35.8 mm | housing thread for the grease fitting (RG) 1/4-28 UNF | axial position of the housing thread (R1) 17.5 mm | angular position of the housing thread (Rα) 45 ° | diameter of head sphere of grease fitting (DN) 6.6 mm | hexagonal key size for the grease fitting (SWN) 7.94 mm | thread of the grease fitting (GN) 1/4- 28 UNF | basic dynamic load rating (C) 14 kN | basic static load rating (C0) 7.8 kN | fatigue load limit (Pu) 0.335 kN | limiting speed 5850 r/min

Attributes

Inner diameter Ø (mm): 25 | Inner diameter Ø (mm): 25.00 | Package length (cm): 14 | Package width (cm): 7.7 | Package height (cm): 4.9 | Gross weight (kg): 0.650000 | EAN: 7316579751773
