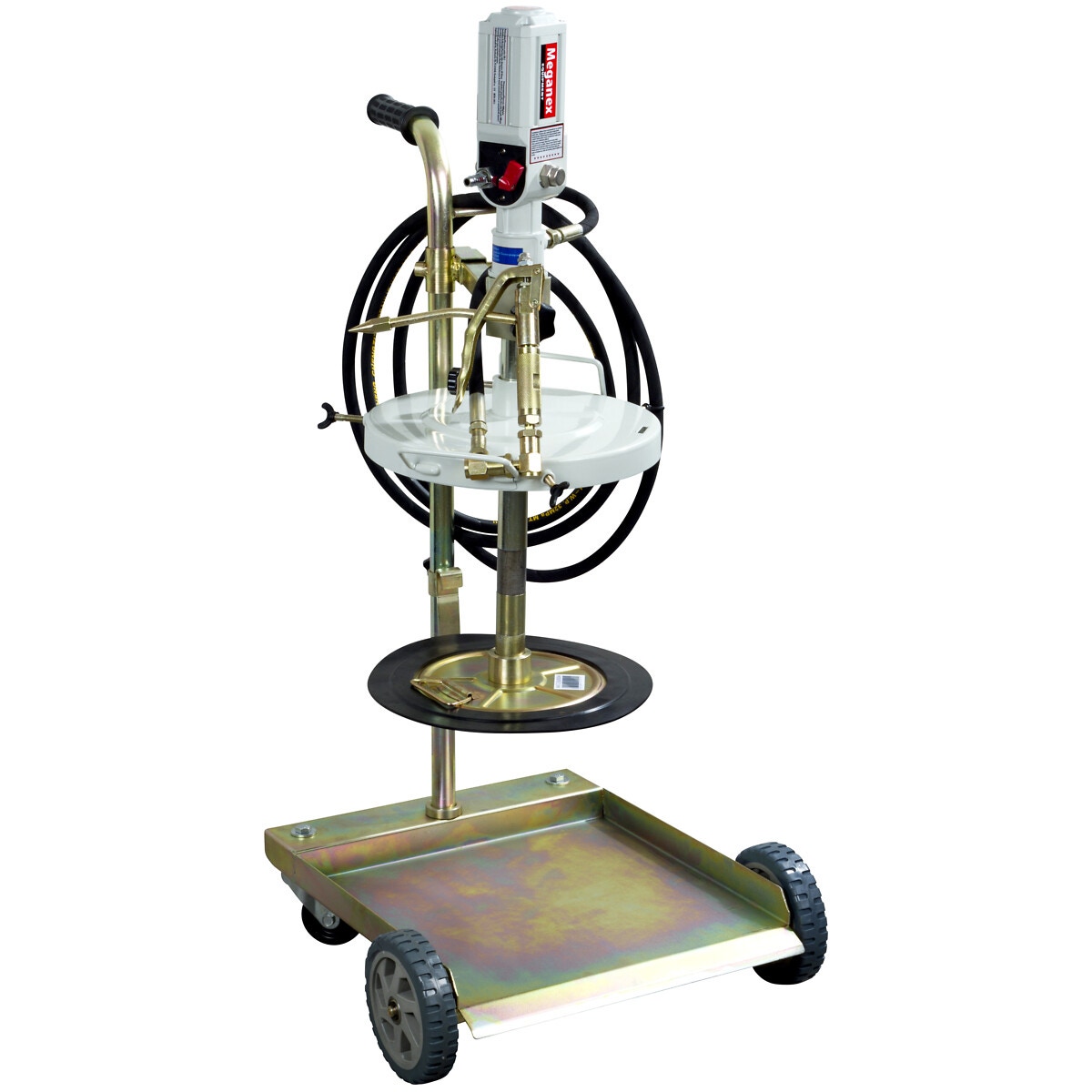

Mobilais smērvielu sūkņa bloks 16-30 kg mucai

Description

pneumatic air powered mobile grease pump unit | follower plate with rubber edge | pressure ratio 50:1 | max. flow rate 600 g/min | max. fluid pressure 400 bar | working pressure 3 – 8 bar | grease outlet pressure 25 – 30 Mpa (3,575 – 4,290 PSI) | air pressure 0.5 – 0.6 Mpa (71.5 – 85.8 PSI) | connections: air inlet quick plug, oil outlet 1/4" BSP | 480 mm suction tube, diameter 32 mm | grease gun with z-swivel | 1/4" x 6 m grease connection hose | pail size 16 – 30 kg | drum cover 310 mm | follower plate 310 mm | seal the couplings with thread locker

Attributes

Package length (cm): 88.5 | Package width (cm): 45.5 | Package height (cm): 16 | Gross weight (kg): 20.850000 | EAN: 6418914782921
