MIG METINĀŠANAS IEKĀRTA UNITECH 418W ŪDENS 400A 400V H

Description

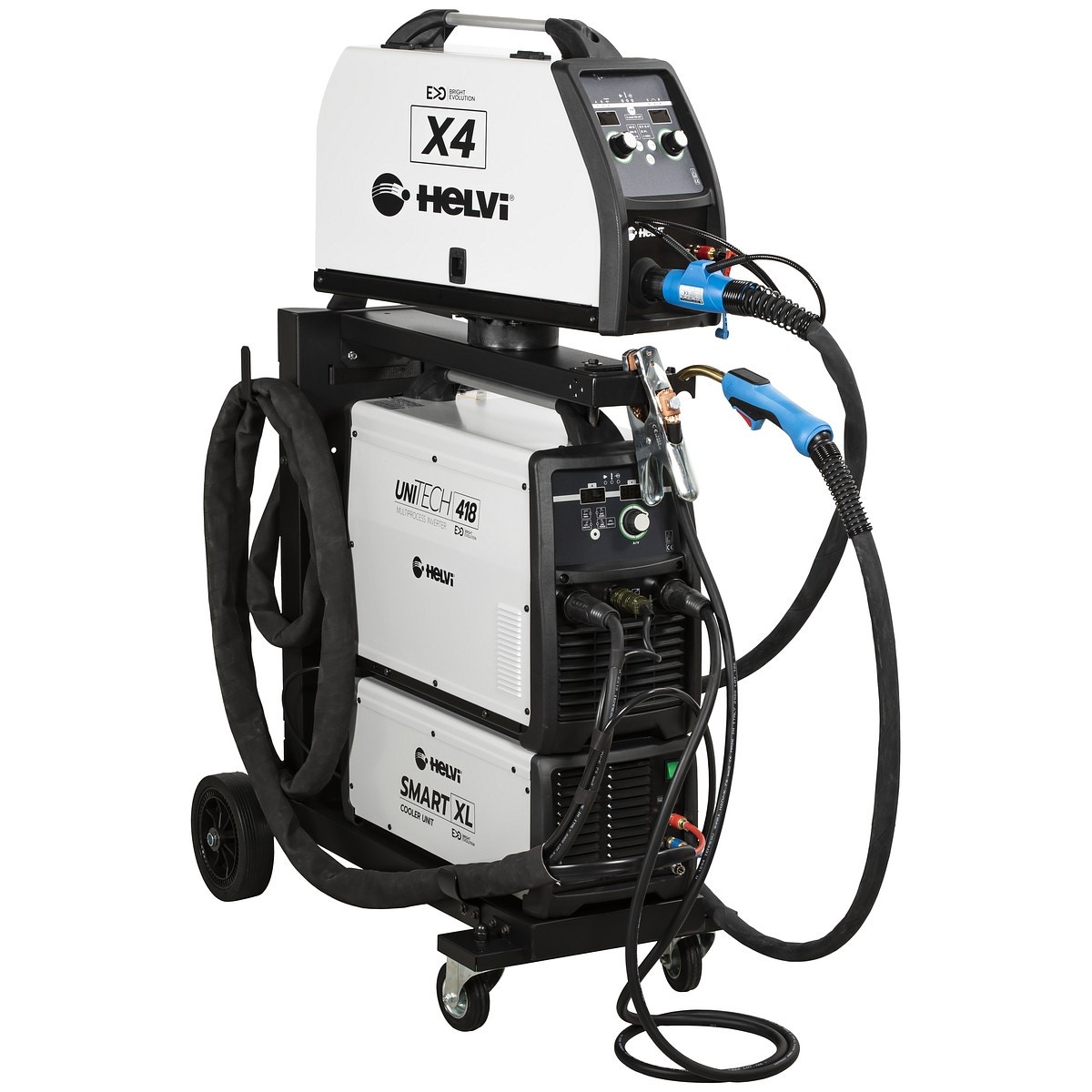

Helvi Unitech 418 H2O | the UNITECH range has been created to simplify the adjustment of the welding parameters and make the welder’s job easier | each function and parameter can be easily managed and configured thanks to the simplified control panel | UNITECH machines are designed to be used in manual MIG mode | however, synergic programs can be activated and selected from the front panel | thanks to the high duty cycle and the user-friendly control panel, the HELVI UNITECH range is the perfect replacement for the "old" generation transformer welding machines | the innovative "Speed Spot" function, available on all HELVI UNITECH versions, guarantees perfect spot welding in MIG mode on any material | the HELVI UNITECH range already complies with the new regulations for Eco Design standards | connection voltage 400 V | power 60% MIG 15 kVA / MMA 15 kVa / TIG 13 kVA | no load output voltage MIG 45 V / MMA 60 V / TIG 60 V | current range 30 – 400 A / 20 – 350 A / 10 – 400 A | MIG duty cycle at 40°C: 400 A 60% – 320 A 100% | MMA duty cycle at 40°C: 350 A 60% – 270 A 100% | TIG duty cycle at 40°C: 400 A 60% – 320 A 100% | steel / stainless steel / aluminium / flux core Ø 0.8 – 1.6 mm / brazing Ø 0.8 – 1.0 mm | electrode Ø 1.6 – 6.0 mm | electrode type 6013 – 7018 | MIG torch 4 m | insulation class H | protection class IP23s | power source dimensions L 250 x W 610 x H 440 mm / weight 30.15 kg | wire feeder dimensions L 240 x W 560 x H 460 mm / weight 15.5 kg | cooler unit dimensions L 250 x W 600 x H 230 mm / weight 15.2 kg | trolley dimensions L 440 x W 930 x H 840 mm / weight 19.2 kg

Attributes

Package length (cm): 120 | Package width (cm): 80 | Package height (cm): 72 | Gross weight (kg): 117.000000 | EAN: 6418914216730
