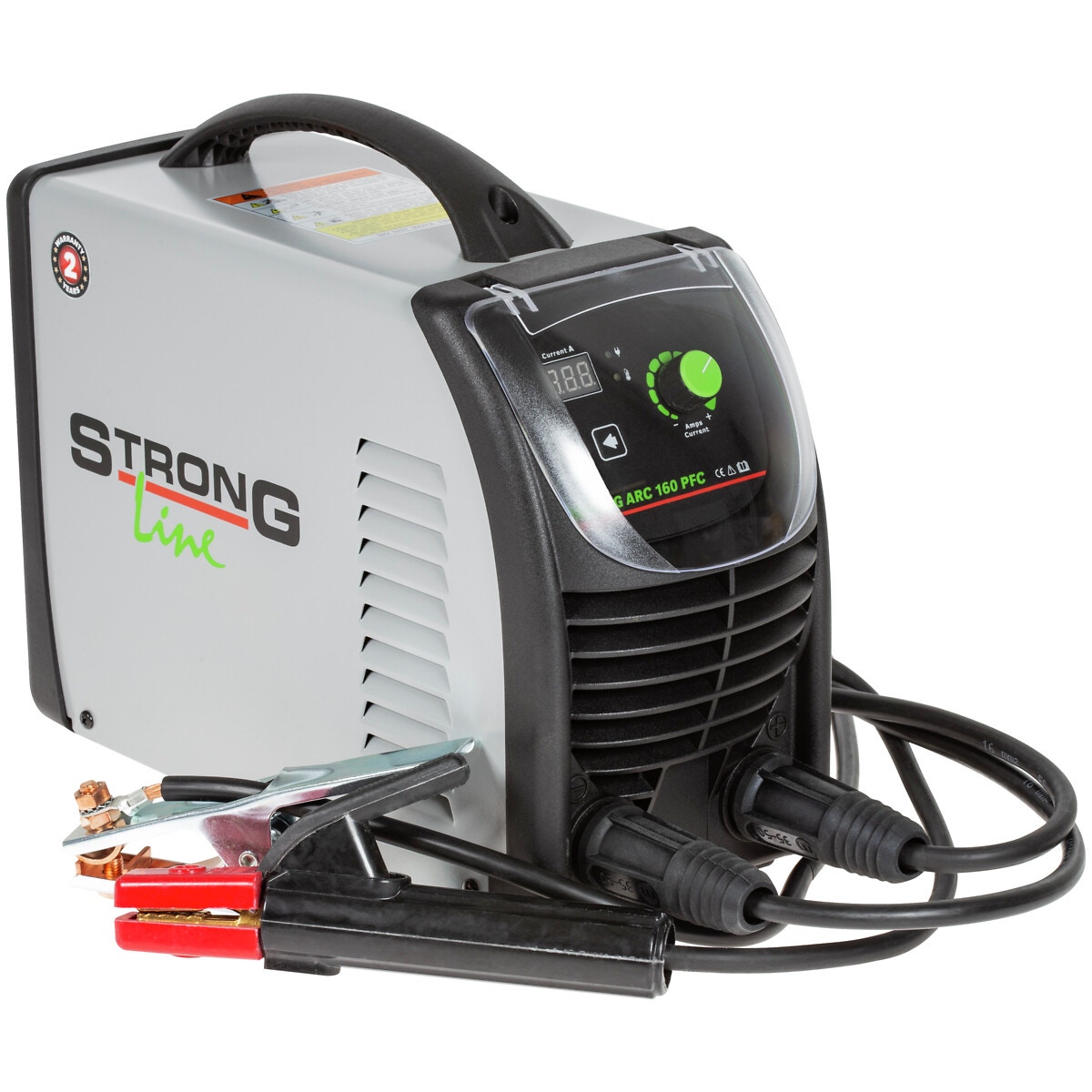

Metināšanas invertors spēcīgs loka 160 pfc

Description

single-phase, small and lightweight inverter for electrode welding and TIG welding | suitable for standard, rutile and stainless steel electrodes | equipped with PFC function (Power Factor Correction) which allows welding with long mains cables or with a generator as power source | light and easy to move due to inverter techonology (IGBT) | welder has the option of plus or minus polarity on the electrode clamp | fan cooling system | high welding current in spite of mains voltage fluctuation | thermostatic, overvoltage and overcurrent protection | anti-stick device | no load voltage limiter | Hot Start starting current | can also be used with generator (min. power 6 kW) | connection voltage 230 V | fuse 16 A | welding current range MMA: 10 A / 20,4 V – 160 A / 26,4 V | welding current range TIG: 10 A / 10,4 V – 160 A / 16,4 V | duty cycle 30% 160 A, 60% 120 A, 100% 90 A | no load voltage 72 V | efficiency > 0,85 | electrodes Ø 1,6 – 4,0 mm | protection class IP21 | standard EN 60974-1:2012 | dimensions L 325 x W 140 x H 240 mm | weight 6,1 kg

Attributes

Package length (cm): 27 | Package width (cm): 47 | Package height (cm): 35 | Gross weight (kg): 9.600000 | EAN: 6418914986527
