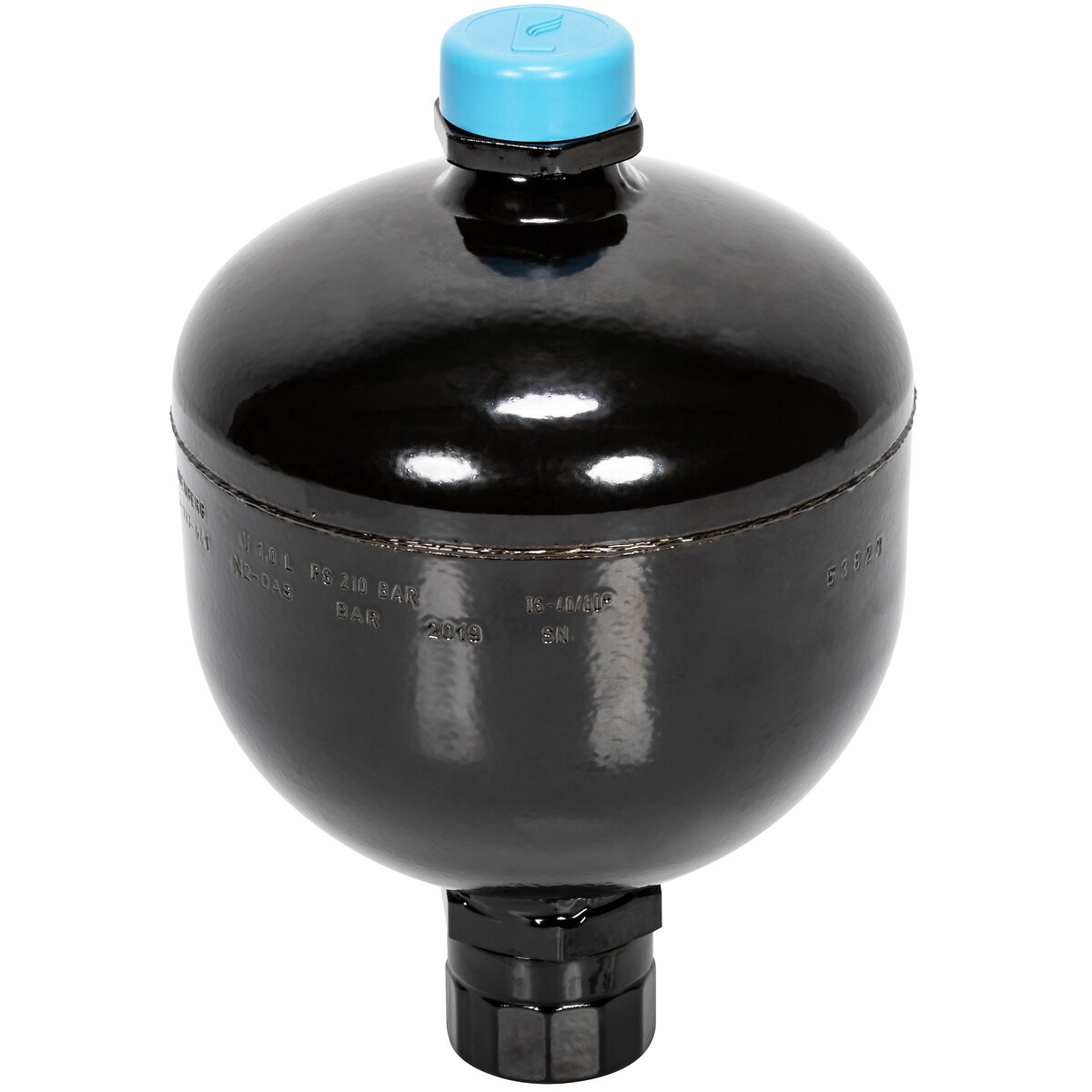

MEMBRĀNAKUMULATORS 1,0 L IEPRIEKŠĒJAS UZPILDES 25BAR G1/2+M33

Description

membrane accumulator is best suited for systems that require sensitivity and rapid response to pressure changes | a membrane accumulator is also inexpensive and tolerates contamination quite well | thanks to the ECO membrane, it is also well suited to Finnish conditions | max. operating pressure 210 bar | with ECO membrane | volume 1.0 l | operating temperature -40…+80 °C | gas valve M28x1.5 | pre-charged pressure 25 bar (can be adjusted to the required level if necessary) | fluid connection G1/2" + M33x1.5 | boom damping for larger loaders | suitable e.g. for front axle damping on several tractor models by changing the pressure | h 198 | d 136 | d1 1/2" + M33 | SW 41

Attributes

Thread: M33 x 1,5 (fine thread), G 1/2" -14 | Package length (cm): 22 | Package width (cm): 15.5 | Package height (cm): 21 | Gross weight (kg): 3.751000 | EAN: 6418914120297
