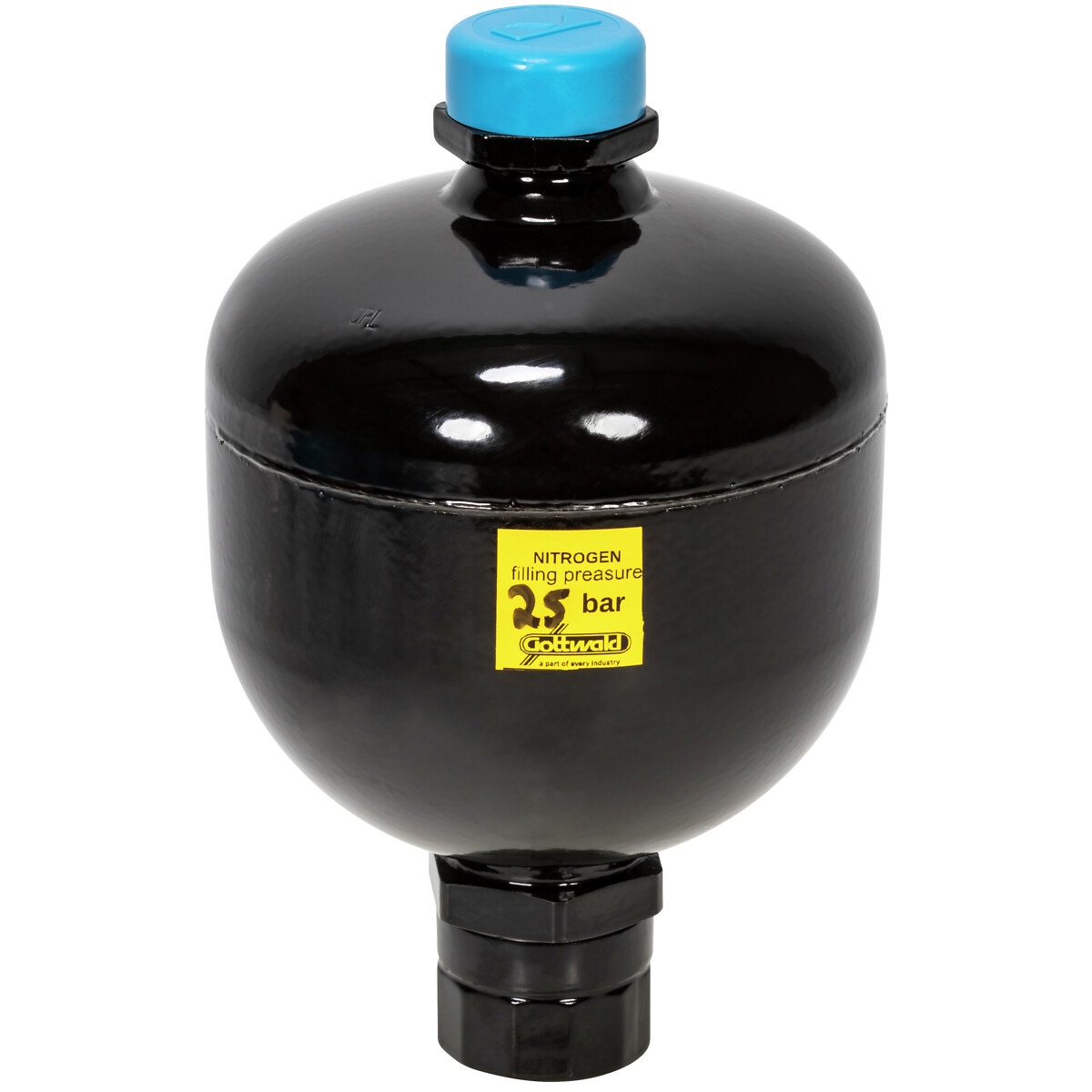

MEMBRĀNAKUMULATORS 0,7 L IEPRIEKŠĒJAS UZPILDES 25BAR G1/2+M33

Description

universal battery size, used in many different applications e.g. in industry, machinery and equipment | membrane accumulator is best suited for systems that require sensitivity and rapid response to pressure changes | a membrane accumulator is also inexpensive and tolerates contamination quite well | thanks to the ECO membrane, it is also well suited to Finnish conditions | max. operating pressure 210 bar | with ECO membrane | volume 0.75 l | operating temperature -40…+80 °C | gas valve M28x1.5 | precharge pressure 25 bar (can be adjusted to the required level if necessary) | fluid connection G 1/2" + M33x1.5 | boom damping for larger loaders for which the pre-filled 25 bar is suitable | by changing the pressure for hydraulic systems of combine harvesters and tractors, where this battery size is used in several different applications | h 184 | d 122 | d1 1/2" + M33x1.5 | SW 41

Attributes

Thread: M33 x 1,5 (fine thread), G 1/2" -14 | Package length (cm): 21.5 | Package width (cm): 16 | Package height (cm): 21.5 | Gross weight (kg): 2.891000 | EAN: 6418914117006
