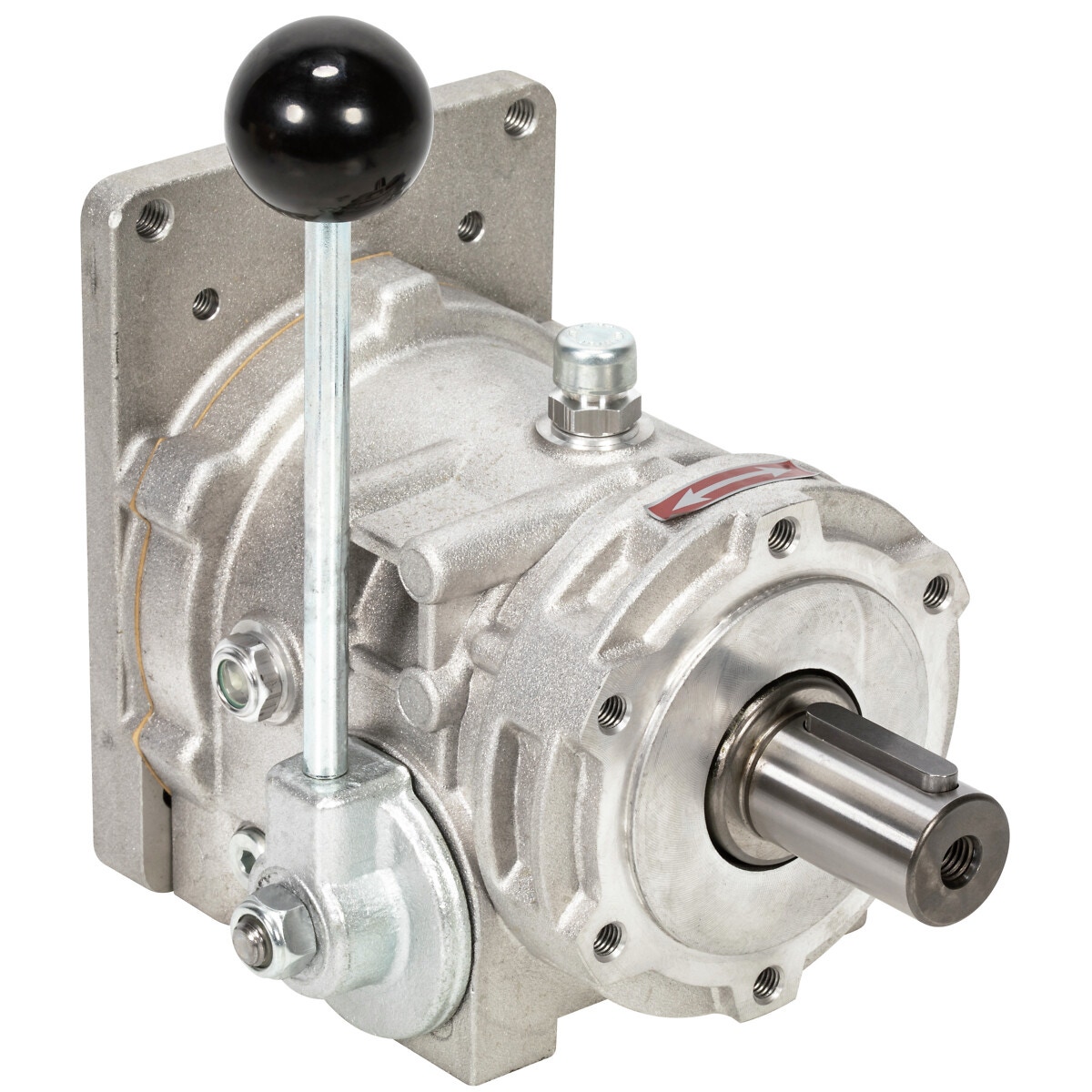

MEHĀNISKAIS SAJŪGS GR 2-3 SŪKŅIEM

Description

mechanical clutch for 2 and 3 series hydraulic pump | the clutch allows the pump to be detached from the draft if it is not desired to use it whenever the motor is running | recommended operating temperature -10…+80 °C | max. rotation speed when connecting and disconnecting 1000 rpm | max. rotation speed 2700 rpm | nominal torque 18.5 daNm | max. power 40 kW | axle 28 mm | recommended oil SAE90 | add oil before first use | it is recommended to change the oil once a year | select the right connection coupling between pump and clutch from related products | A 32.5 | B 96 | C 71.4 | D 42.5 | E 128 | F 98.4 | G M8x15 | H 19 | I 151 | L 32 | M 8.6

Attributes

Package length (cm): 16 | Package width (cm): 13 | Package height (cm): 20.5 | Gross weight (kg): 4.819000 | EAN: 6418914121041
