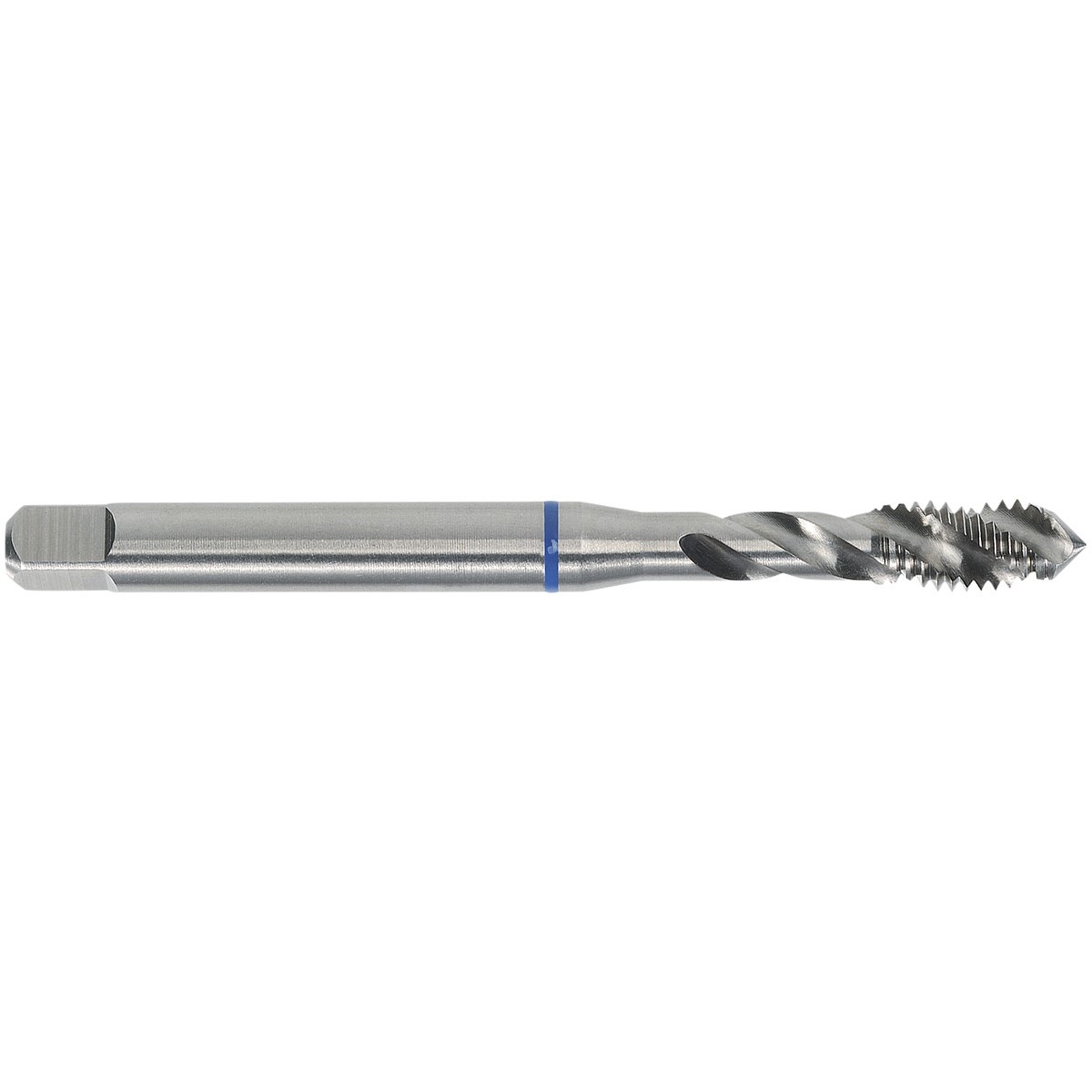

MAŠĪNAS KRĀNS ZILS M5X0,8 DIN371C HSSE

Description

HSS-E machine tap, spiral fluted (DIN 371, form C) for blind hole threads | suitable for high-alloy steels and stainless steels (short chipping) approx. 1200 N/mm² | metric ISO-thread DIN 13 | size (d1) M5 x 0.8 | overall length (l1) 70 mm | thread length (l2) 8 mm | diameter (d2) 6 mm | shank (a) 4.9 mm | recommended drill bit Ø 4.2 mm

Attributes

Thread: M5 x 0,8 | Package length (cm): 8 | Package width (cm): 11.5 | Package height (cm): 1 | Gross weight (kg): 0.017000 | EAN: 4022835364344
